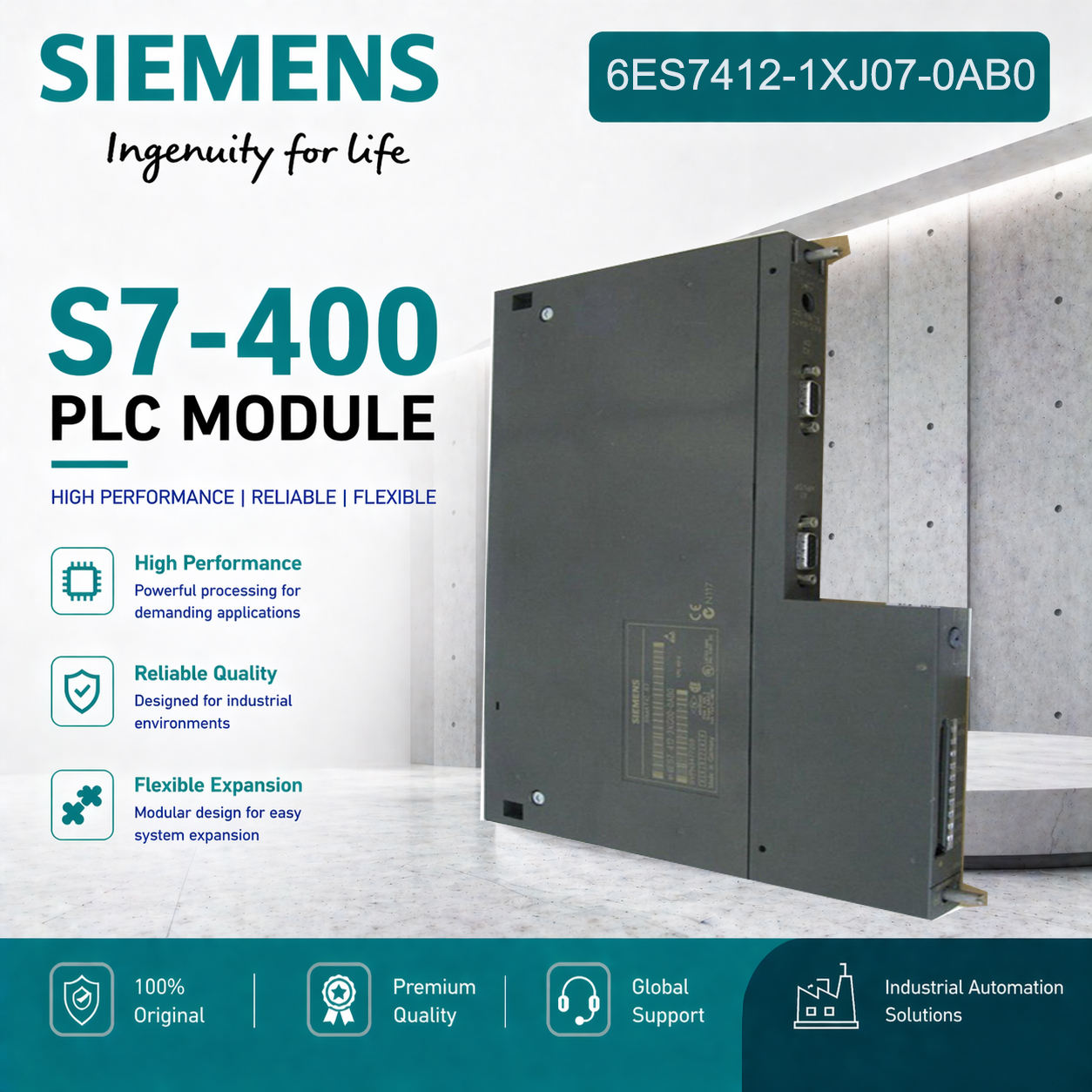

Siemens 6ES7412-1XJ07-0AB0 CPU Module for Automation System Upgrades

6ES7412-1XJ07-0AB0 | CPU 412-1 (Updated Version)
Product Name: SIMATIC S7-400, CPU 412-1
Work Memory: 144 KB for code, 96 KB for data
Bit Processing Time: 0.1 μs per bit operation
Interfaces: 1 × MPI/DP interface (12 Mbps)
Supported Protocols: MPI, PROFIBUS DP (master/slave), PG/OP communication
Max. I/O: 256 DI/DO, 64 AI/AO
Expansion: Up to 16 modules per rack, max. 4 racks
Power Consumption: ~2.4 W (5 V DC backplane)
Operating Temperature: 0 °C … +60 °C
Protection Class: IP20
Dimensions: 195 × 40 × 260 mm (W×H×D)
Weight: ~1.0 kg
Notes: Revised hardware version with improved stability
