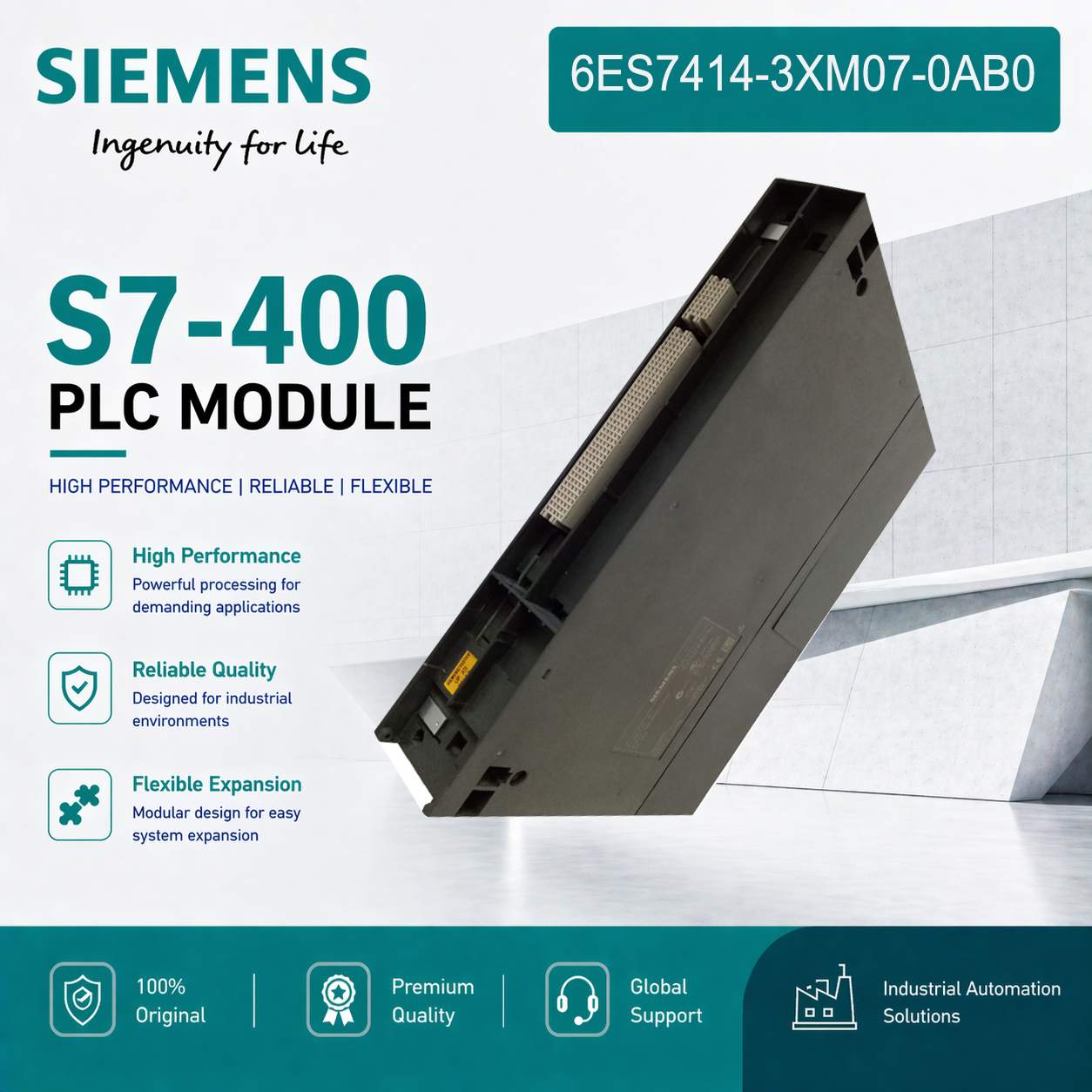

Siemens 6ES7414-3XM07-0AB0 CPU Module for Advanced Network Automation

6ES7414-3XM07-0AB0 | CPU 414-3 (Updated Version)
Product Name: SIMATIC S7-400, CPU 414-3
Work Memory: 1 MB for code, 1 MB for data
Bit Processing Time: 0.06 μs per bit operation
Interfaces: 2 × MPI/DP interfaces (12 Mbps) + 1 additional integrated DP interface
Supported Protocols: MPI, PROFIBUS DP (master/slave), PG/OP communication
Max. I/O: 2048 DI/DO, 512 AI/AO
Expansion: Up to 16 modules per rack, max. 4 racks
Power Consumption: ~3.8 W (5 V DC backplane)
Operating Temperature: 0 °C … +60 °C
Protection Class: IP20
Dimensions: 195 × 40 × 260 mm (W×H×D)
Weight: ~1.2 kg
Notes: Revised hardware version with improved stability
