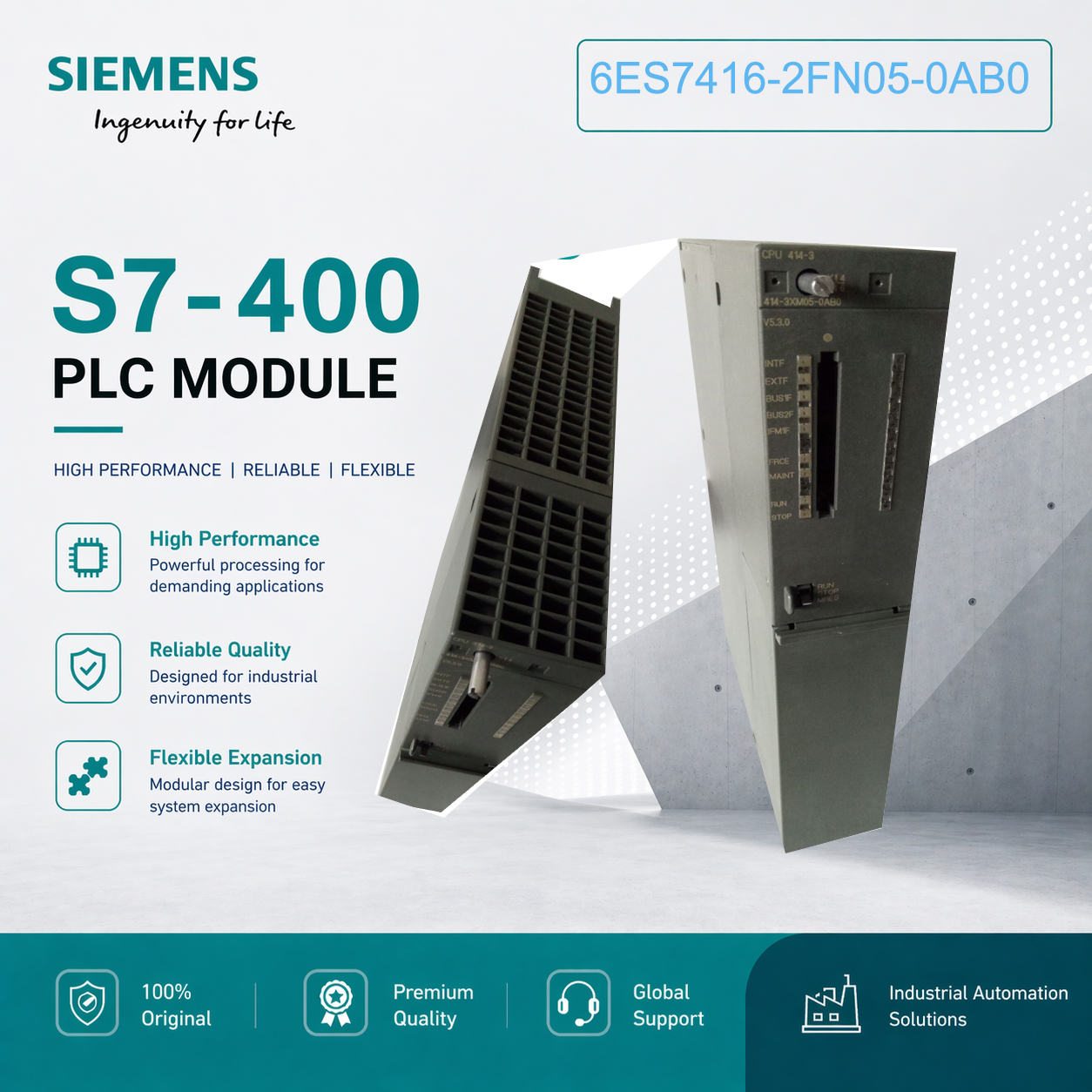

Siemens 6ES7416-2FN05-0AB0 CPU Module for Large Automation Projects

6ES7416-2FN05-0AB0 | CPU 416F-2 (Fail-Safe)
Product Name: SIMATIC S7-400F, CPU 416F-2 (Fail-Safe)
Work Memory: 1.6 MB for code, 800 KB for data
Bit Processing Time: 0.075 μs per bit operation
Interfaces: 2 × MPI/DP interfaces (12 Mbps each)
Safety Certification: SIL 3 (IEC 61508), PL e (ISO 13849-1)
Supported Protocols: MPI, PROFIBUS DP (master/slave), PG/OP communication, fail-safe communication
Max. I/O: 4096 DI/DO, 1024 AI/AO (including fail-safe I/O)
Expansion: Up to 16 modules per rack, max. 4 racks
Power Consumption: ~4.8 W (5 V DC backplane)
Operating Temperature: 0 °C … +60 °C
Protection Class: IP20
Dimensions: 195 × 40 × 260 mm (W×H×D)
Weight: ~1.3 kg
