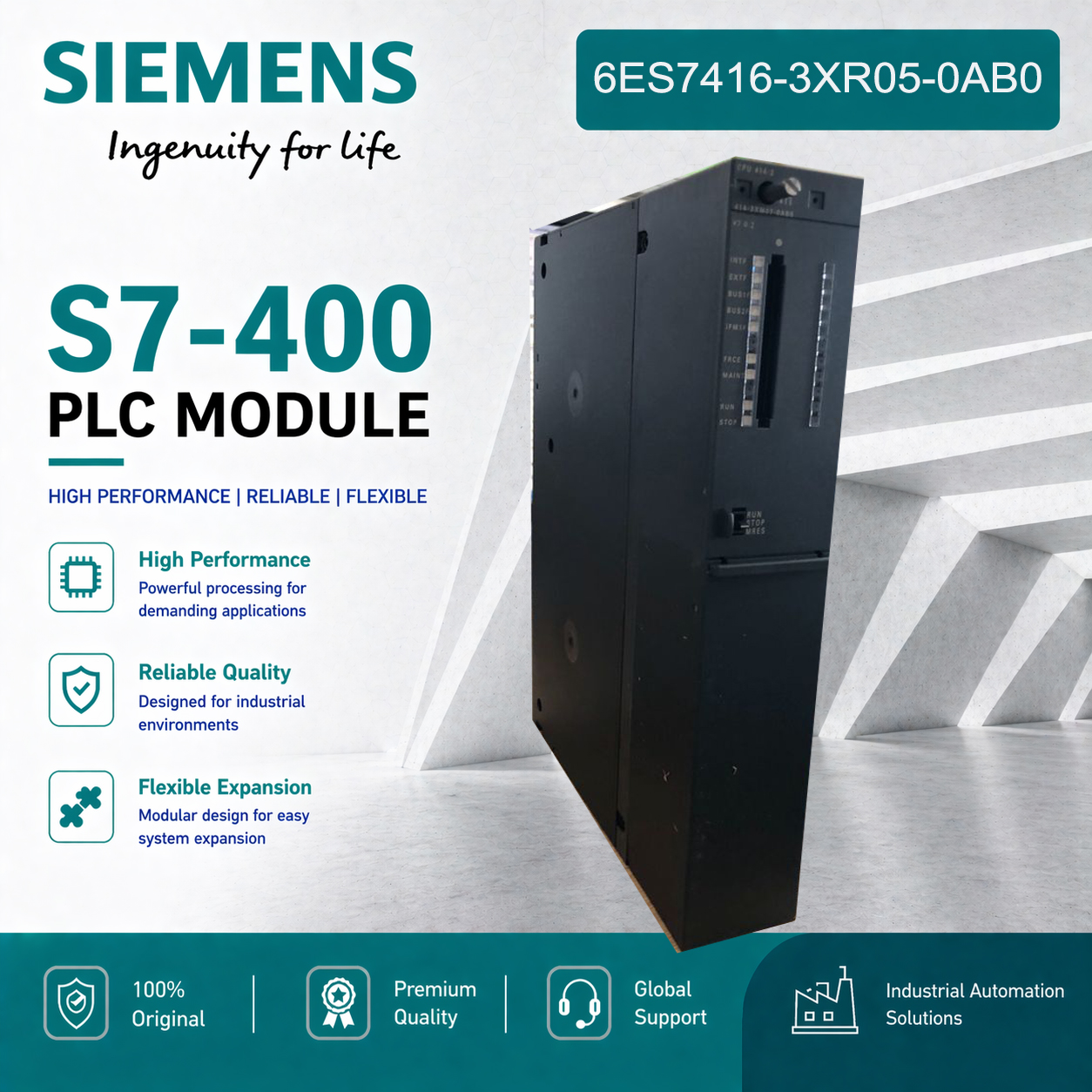

Siemens 6ES7416-3XR05-0AB0 CPU Module for Advanced Communication Systems

6ES7416-3XR05-0AB0 | CPU 416-3
Product Name: SIMATIC S7-400, CPU 416-3
Work Memory: 2.4 MB for code, 1.2 MB for data
Bit Processing Time: 0.05 μs per bit operation
Interfaces: 2 × MPI/DP interfaces (12 Mbps) + 1 additional integrated DP interface
Supported Protocols: MPI, PROFIBUS DP (master/slave), PG/OP communication
Max. I/O: 8192 DI/DO, 2048 AI/AO
Expansion: Up to 16 modules per rack, max. 4 racks
Power Consumption: ~5.2 W (5 V DC backplane)
Operating Temperature: 0 °C … +60 °C
Protection Class: IP20
Dimensions: 195 × 40 × 260 mm (W×H×D)
Weight: ~1.4 kg
