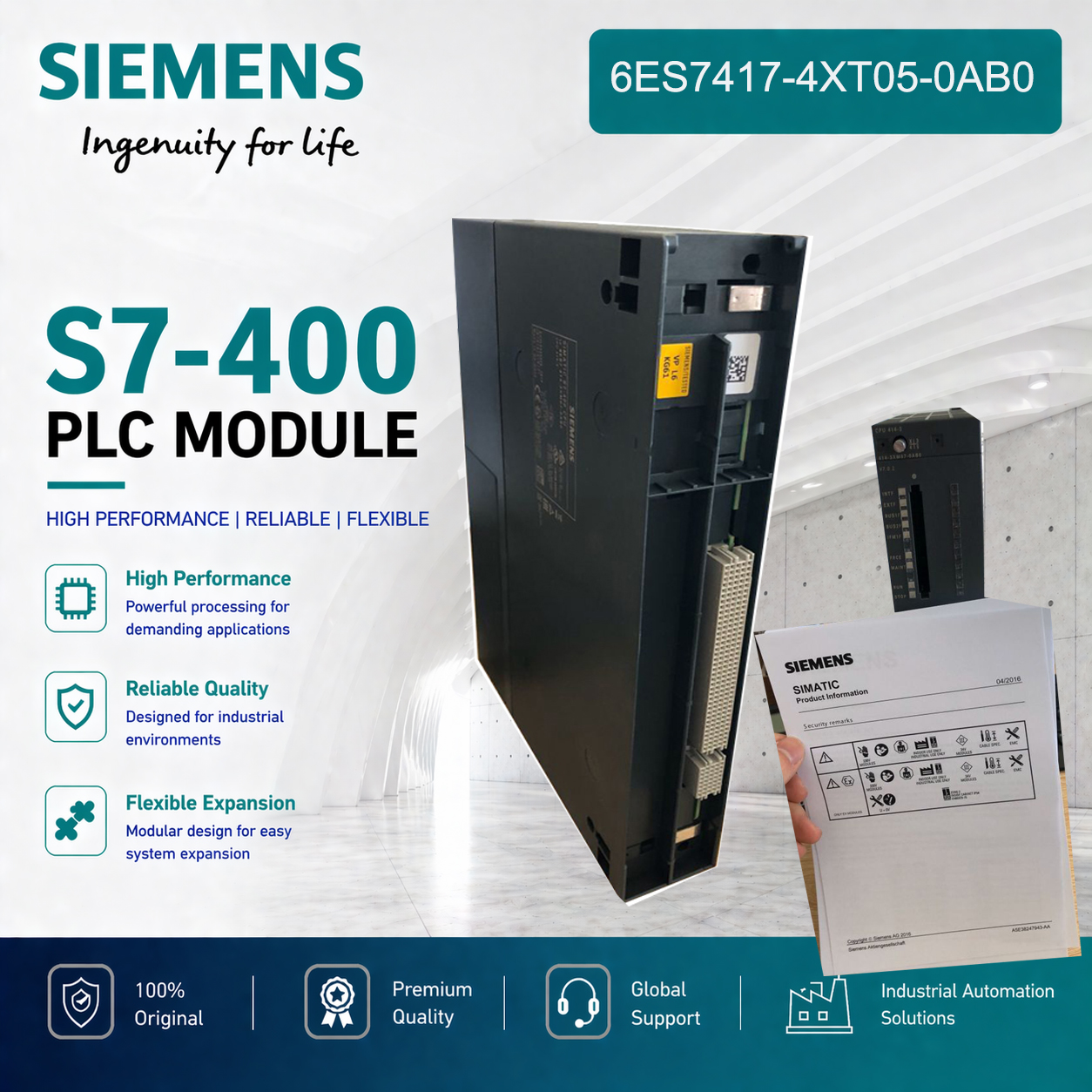

Siemens 6ES7417-4XT05-0AB0 High-End CPU Module for Complex Automation Systems

6ES7417-4XT05-0AB0 | CPU 417-4
Product Name: SIMATIC S7-400, CPU 417-4
Work Memory: 16 MB for code, 16 MB for data
Bit Processing Time: 0.03 μs per bit operation
Interfaces: 2 × MPI/DP interfaces (12 Mbps) + 2 additional integrated DP interfaces
Supported Protocols: MPI, PROFIBUS DP (master/slave), PG/OP communication
Max. I/O: 16384 DI/DO, 4096 AI/AO
Expansion: Up to 16 modules per rack, max. 4 racks
Power Consumption: ~7.0 W (5 V DC backplane)
Operating Temperature: 0 °C … +60 °C
Protection Class: IP20
Dimensions: 195 × 40 × 260 mm (W×H×D)
Weight: ~1.5 kg
