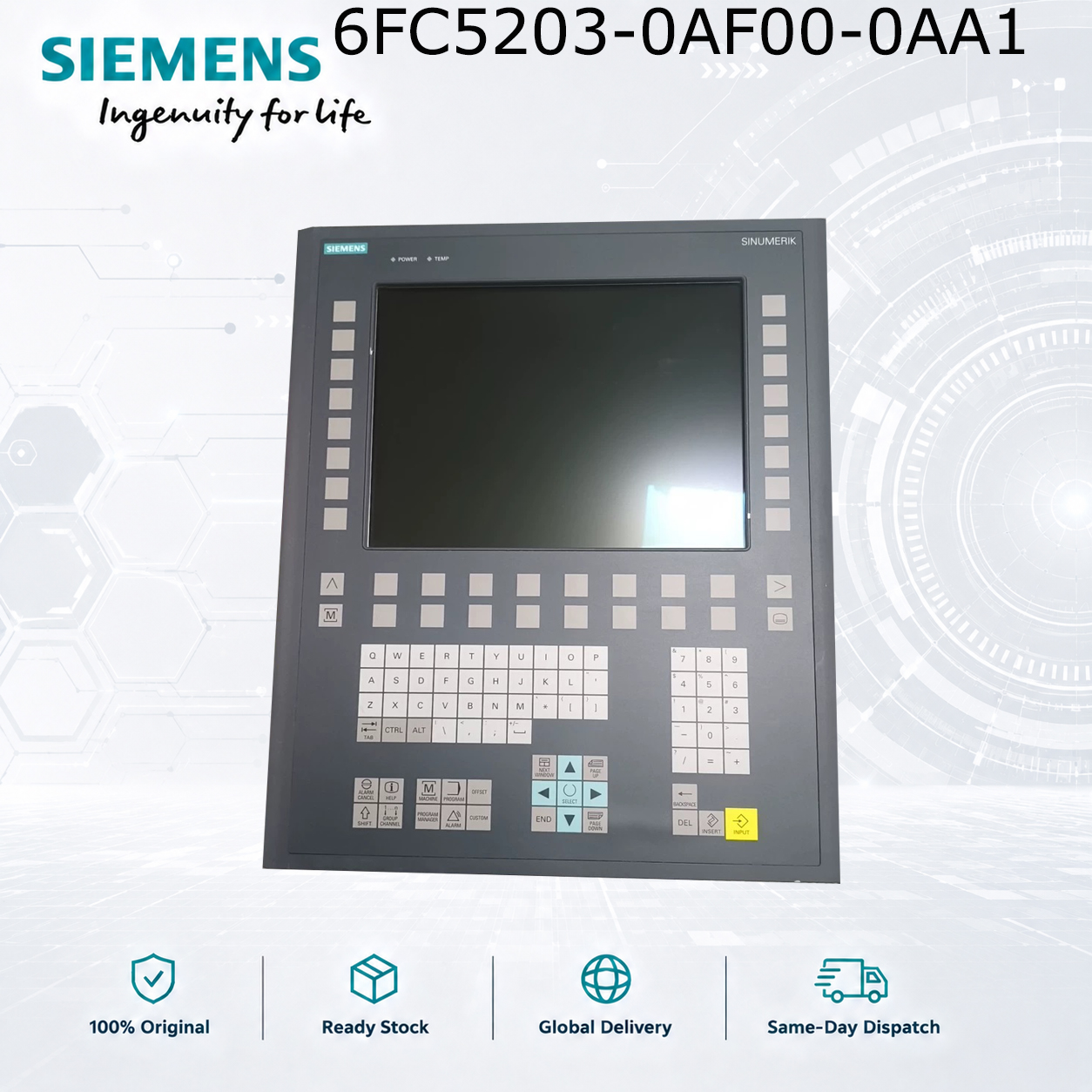

Siemens 6FC5203-0AF00-0AA1 | SINUMERIK OP 010 Operator Panel 10.4″ Touch Screen

Product Overview
The Siemens 6FC5203-0AF00-0AA1 is an OP 010 (Operator Panel 010) front unit for the SINUMERIK 810D and 840D powerline CNC systems. This versatile operator panel features a 10.4-inch TFT touch screen display combined with membrane keys, providing both intuitive touch operation and tactile feedback for machine control .

Technical Specifications

• Model Number: 6FC5203-0AF00-0AA1

• Product Type: OP 010 Operator Panel Front

• Product Line: SINUMERIK 810D / 840D powerline

• Display Size: 10.4 inch TFT

• Resolution: 640 x 480 pixels

• Input Methods: Touch screen + Membrane keys

• Operating Voltage: DC 5V

• Power Consumption: Max 16.0 W

• Front Protection: IP65

• Net Weight: 6.000 kg

• EAN: 4025515019879

Key Features

• 10.4" TFT Touch Screen: 640x480 resolution for clear visualization

• Dual Input Options: Touch screen plus membrane keys for flexible operation

• IP65 Front Protection: Dust-tight and protected against water jets

• Energy Efficient: Only 16W maximum power consumption

• Compatible with PCU/TCU: Works with PCU 50 or TCU as processing unit

Product Lifecycle Notice
⚠️ This product is from the SINUMERIK powerline series. Please verify compatibility with your existing system before ordering .

Typical Applications

• SINUMERIK 810D/840D CNC machine tools

• Milling and turning machine control

• Industrial automation HMI stations

What's Included

• 6FC5203-0AF00-0AA1 OP 010 operator panel front

• Mounting hardware

•
