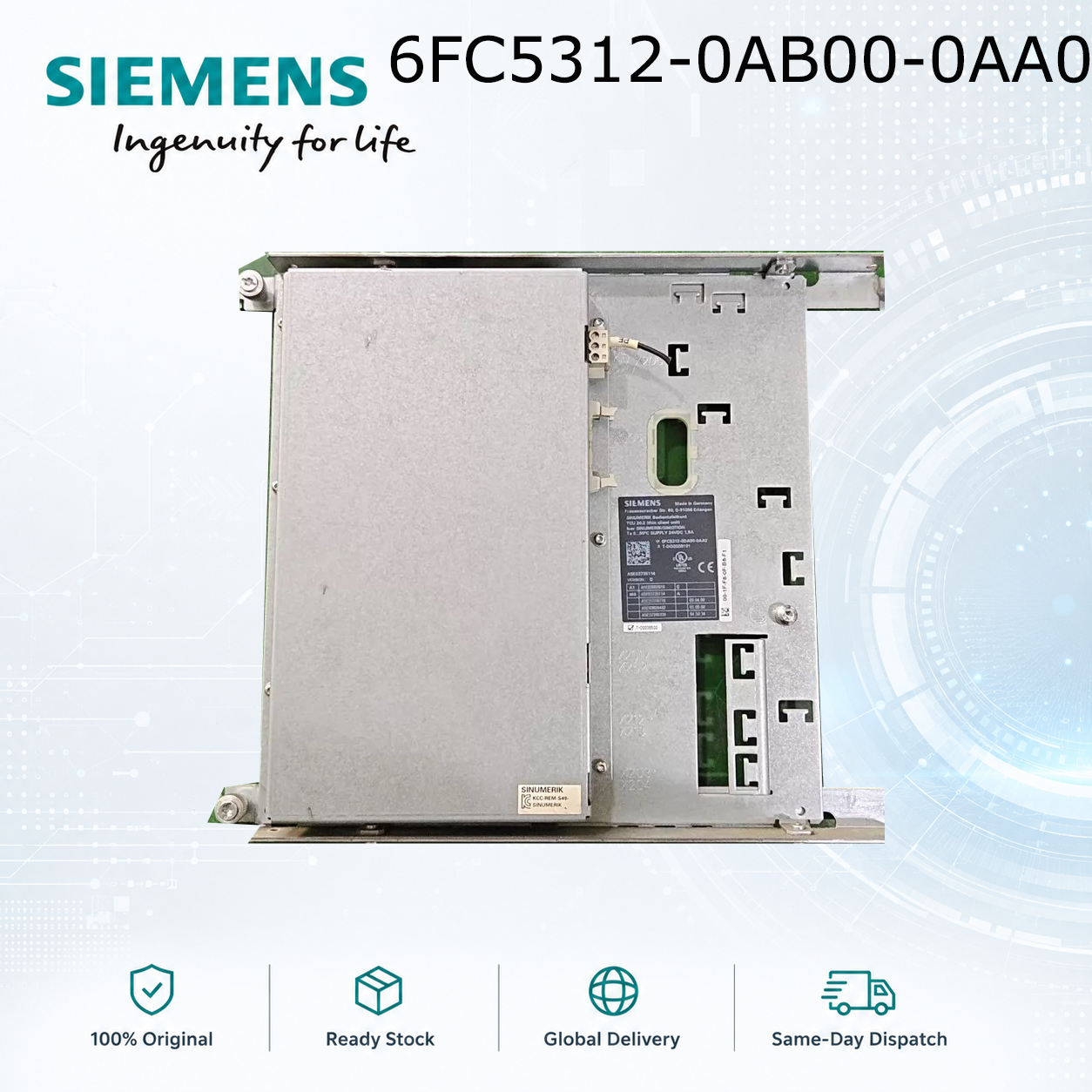

Siemens 6FC5312-0AB00-0AA0 | SINUMERIK 840D NCU 572.x Control Unit

6FC5312-0AB00-0AA0
Series: SINUMERIK I/O Expansion Module
Input: Control Signal
Output: Switch Signal
Rated Power: N/A
Rated Current: N/A
Protection Class: IP20
Applications: Medium channel expansion board, satisfy multi-point signal interaction of automatic machine tools

Band：Siemens
Condition: Brand new / Original
Stock: In stock
Delivery: 3 - 7 days
Warranty: 12 months

Product Overview
The Siemens 6FC5312-0AB00-0AA0 is an NCU (Numerical Control Unit) module for the SINUMERIK 840D powerline CNC system. The NCU is the central control unit of the 840D system, integrating NC-CPU, PLC functions, and communication capabilities.

This module belongs to the NCU 572.x series, the mid-range offering in the 840D powerline family, designed for complex CNC applications requiring higher axis counts and processing power than the entry-level 571 series.

Technical Specifications (Reference: NCU 572.2 / 572.3 parameters)

Parameter	Value
Model Number	6FC5312-0AB00-0AA0
Product Type	NCU (Numerical Control Unit)
Series	SINUMERIK 840D NCU 572.x
Processor	AMD K6-2, 233 MHz (572.3)
NC Memory	0.5 MB (expandable)
PLC Memory	96 KB (expandable)
Max Axes/Spindles	Standard 5, Max 10
Max Channels	Up to 6
Max Way Groups	Up to 6
User Memory (CNC)	3MB (expandable to 6MB for .5 series)
PLC Type	PLC 315-2DP (.3 series)
Communication	PROFIBUS-DP (prepared)
Width	50 mm
Height	316 mm
Depth	115 mm
Weight	approx. 0.68 - 0.88 kg
Power Loss	33 W
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 60°C

Key Features

Central CNC Control: Integrates NC-CPU and PLC functions in one module
Mid-Range Performance: AMD K6-2 233MHz processor for complex applications
Multiple Axes Support: Supports up to 5 axes standard, expandable to 10
PROFIBUS-DP Ready: For industrial network integration
Expandable Memory: NC memory expandable, CNC user memory up to 6MB
Multi-Channel Capability: Up to 6 channels and 6 way groups

Typical Applications

Complex CNC machine tools (milling machines, machining centers)
Multi-axis turning centers
Applications requiring 5+ axes of interpolation
Retrofit and upgrade projects for 840D powerline systems
High-performance industrial automation

SINUMERIK 840D System Integration
The NCU 572.x is part of the SINUMERIK 840D digital control system, which operates in conjunction with:

SIMODRIVE 611 digital drive system
SIMATIC S7-300 automation system
PCU 50 for HMI operations
OP (Operator Panel) for user interface

Compatibility Notes

Compatible with SINUMERIK 840D powerline systems
Requires NCU Box for installation (e.g., 6FC5247-0AA00-0AA2)
Compatible with SIMODRIVE 611D drive modules
System software not included (must be ordered separately)

What's Included

6FC5312-0AB00-0AA0 NCU 572.x module
Device bus cable and drive bus terminator
Battery (pre-installed)
No system software included
