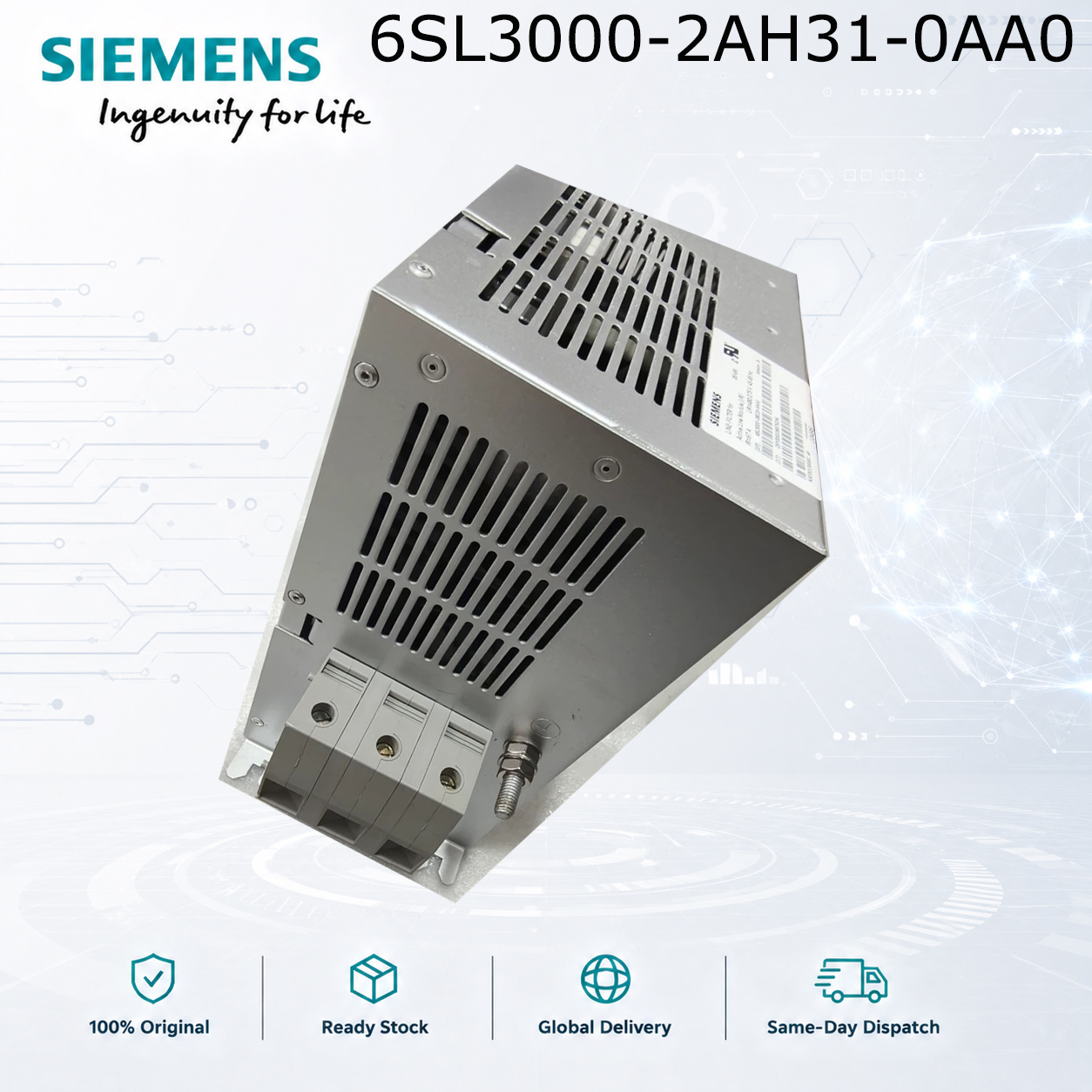

Siemens 6SL3000-2AH31-0AA0 | SINAMICS Motor Reactor 660-690V 100A

Product Overview
The Siemens 6SL3000-2AH31-0AA0 is a motor reactor designed for high-voltage SINAMICS and MICROMASTER PX drive systems. This output reactor operates on 660-690V 3AC and is rated for 85A and 100A AC drives, power modules, and motor modules .

Technical Specifications

• Model Number: 6SL3000-2AH31-0AA0

• Product Type: Motor Reactor / SINAMICS Motor Reactor

• Voltage Rating: 660-690V 3AC, 50/60Hz

• Current Rating: 85 A / 100 A AC Drives

• Net Weight: 25.000 kg

• Packaging Dimensions: 270 x 400 x 415 mm

• EAN: 4042948675953

• UPC: 662643344608

• Commodity Code: 85045000

• Country of Origin: Czech Republic

• Product Class: C - Manufactured to order, non-returnable

Product Lifecycle
✅ Active Product (PM300 status) - Currently in production

RoHS Compliance
✅ Compliant since July 1, 2006

WEEE Take-Back Obligation
⚠️ Yes - This product is subject to WEEE take-back obligations in EU

Key Features

• High Voltage Design: Designed for 660-690V AC drive systems

• Dual Current Rating: Suitable for both 85A and 100A drives

• Reduces voltage reflection at motor terminals for high-voltage motors

• Essential for long cable runs in high-voltage installations

Typical Applications

• SINAMICS high-voltage drive systems

• MICROMASTER PX 660-690V drives

• Industrial applications with high voltage requirements

• Long distance motor installations

What's Included

• 6SL3000-2AH31-0AA0 motor reactor

• Mounting hardware

•
