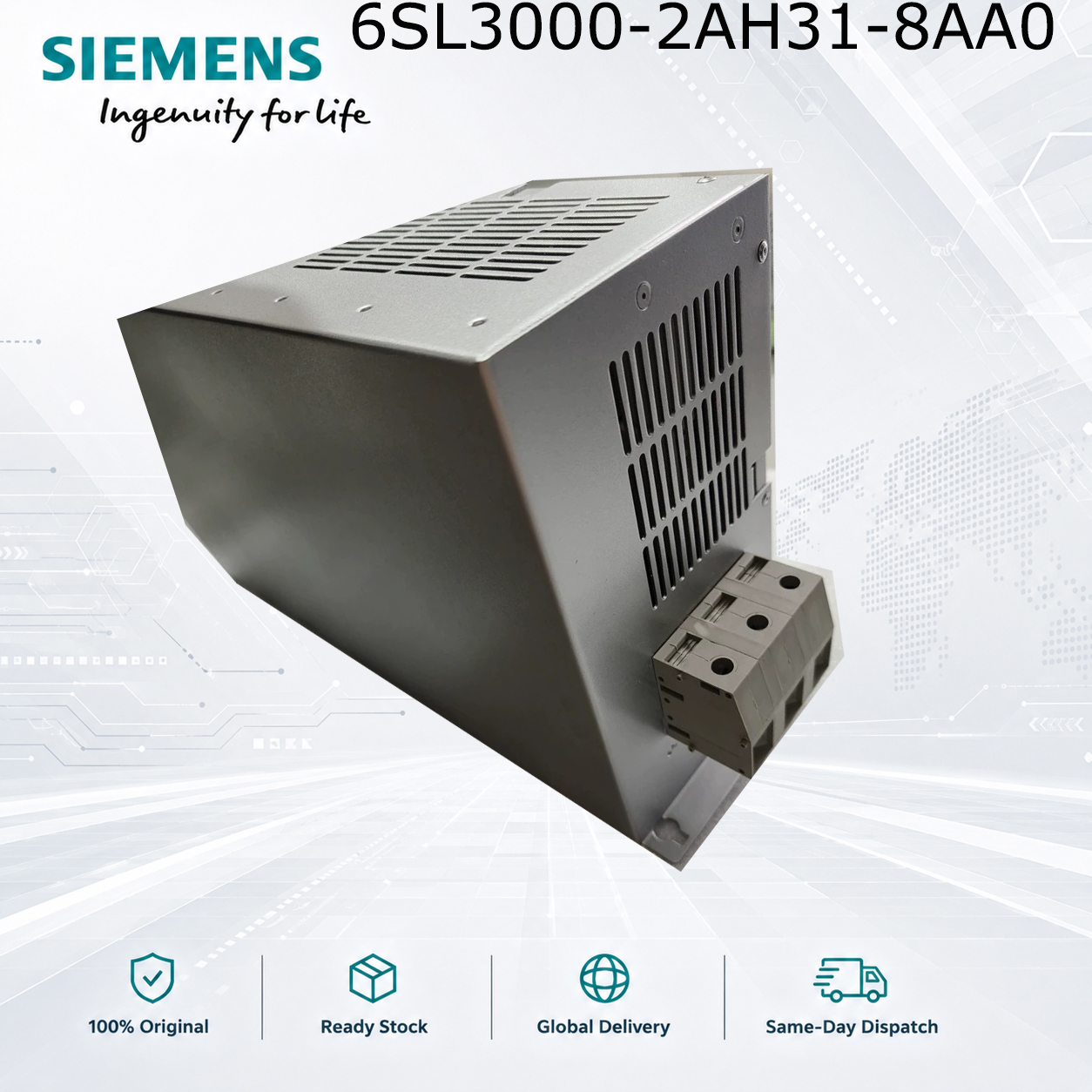

Siemens 6SL3000-2AH31-8AA0 | SINAMICS Motor Reactor 175A 660-690V

Product Overview
The Siemens 6SL3000-2AH31-8AA0 is a motor reactor (output reactor) for the SINAMICS and MICROMASTER PX drive systems. This component provides motor-side filtering for 3-phase 660-690V AC drives, power modules, and motor modules rated at 175A .

Technical Specifications

• Model Number: 6SL3000-2AH31-8AA0

• Product Type: Motor Reactor / Output Reactor

• Voltage Rating: 3PH 660-690V, 50/60Hz

• Rated Current: 175 A

• Inductance: 0.092 mH

• Power Loss: 0.40 kW

• Protection Class: IP00

• Net Weight: 36.000 kg

• Product Lifecycle: PM300 - Active Product

• Country of Origin: Czech Republic

• Commodity Code: 85045000

• UPC: 662643344622

• RoHS Compliant: Since July 1, 2006

• Product Class: C (Manufactured to order, non-returnable)

• WEEE Take-Back Obligation: Yes

• Compatible Power Modules: 6SL3210-1PH31-7CL0, 160kW FSG

Key Features

• Designed for 660-690V high-voltage AC drive systems

• Reduces voltage reflection (dv/dt) at motor terminals

• Limits capacitive charging currents in long motor cables

• Protects motor winding insulation from voltage spikes

• Extends effective motor cable length

Typical Applications

• SINAMICS high-voltage drive systems

• MICROMASTER PX 660-690V drives

• Industrial applications with long cable runs

• High-power motor protection

What‘s Included

• 6SL3000-2AH31-8AA0 motor reactor

• Mounting hardware
