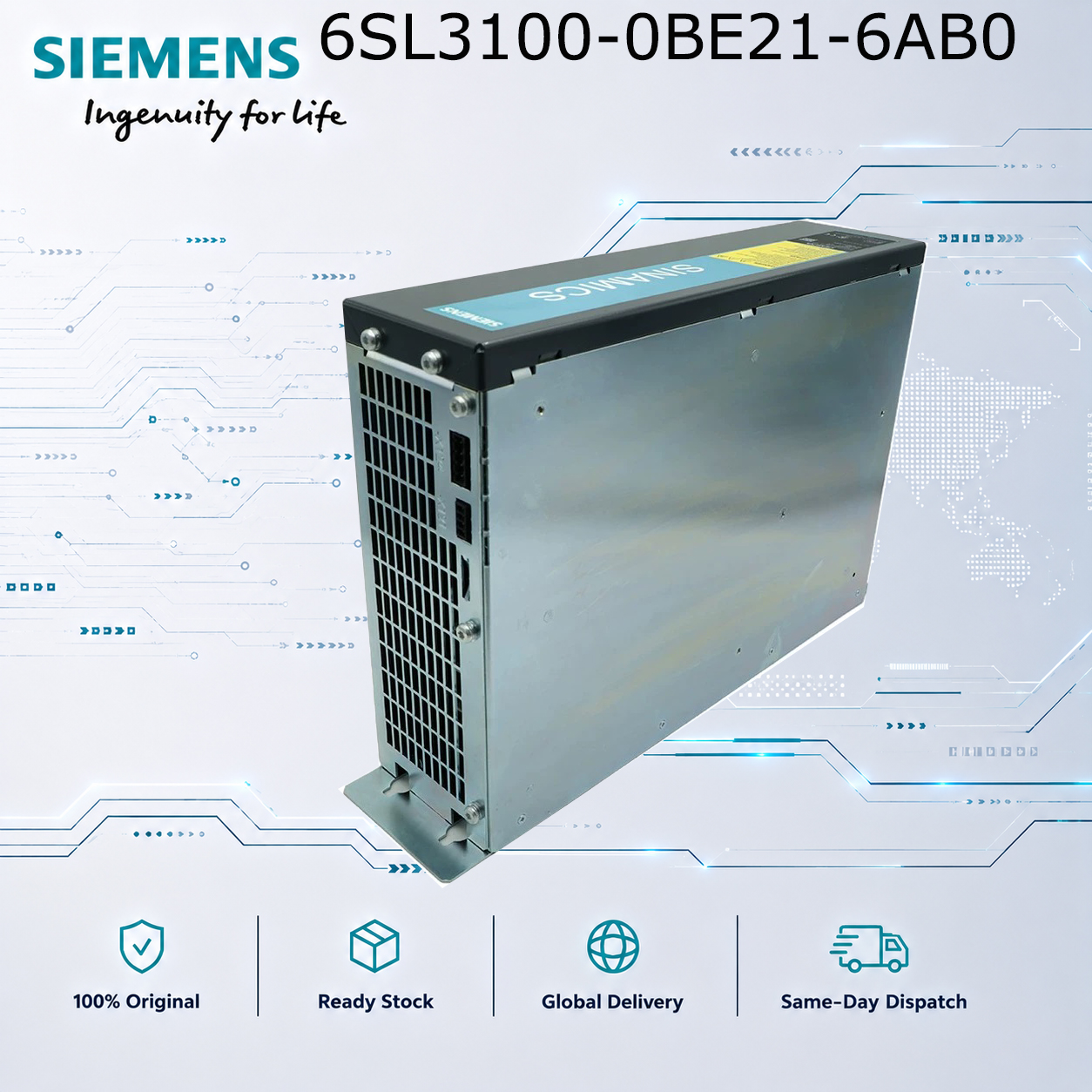

Siemens 6SL3100-0BE21-6AB0 | S120 Active Interface Module 36A

Product Overview
The Siemens 6SL3100-0BE21-6AB0 is an Active Interface Module (AIM) for the SINAMICS S120 drive system. This compact Booksize module is designed to be used with Active Line Modules (ALM) or Smart Line Modules (SLM), providing the necessary line connection, filtering, and reactor functions in a single integrated unit.

Technical Specifications

• Model Number: 6SL3100-0BE21-6AB0

• Product Type: S120 Active Interface Module (AIM)

• Product Line: SINAMICS S120

• Rated Current: 36 A

• Input Voltage: 380-480V 3AC, 50/60Hz

• Integrated Components: Line filter + Line reactor

• Cooling: Internal air cooling

• Protection Class: IP20

• Compatible Power Modules: ALM/SLM up to 36A

Key Features

• Integrated Filter and Reactor: Eliminates need for separate external filter and reactor components

• Booksize Format: Compact design for space-saving cabinet installation

• EMC Compliance: Meets Category C2/C3 requirements for industrial environments

Typical Applications

• Active Line Modules (ALM) up to 36A

• Smart Line Modules (SLM) up to 36A

• Multi-axis S120 drive systems

•
