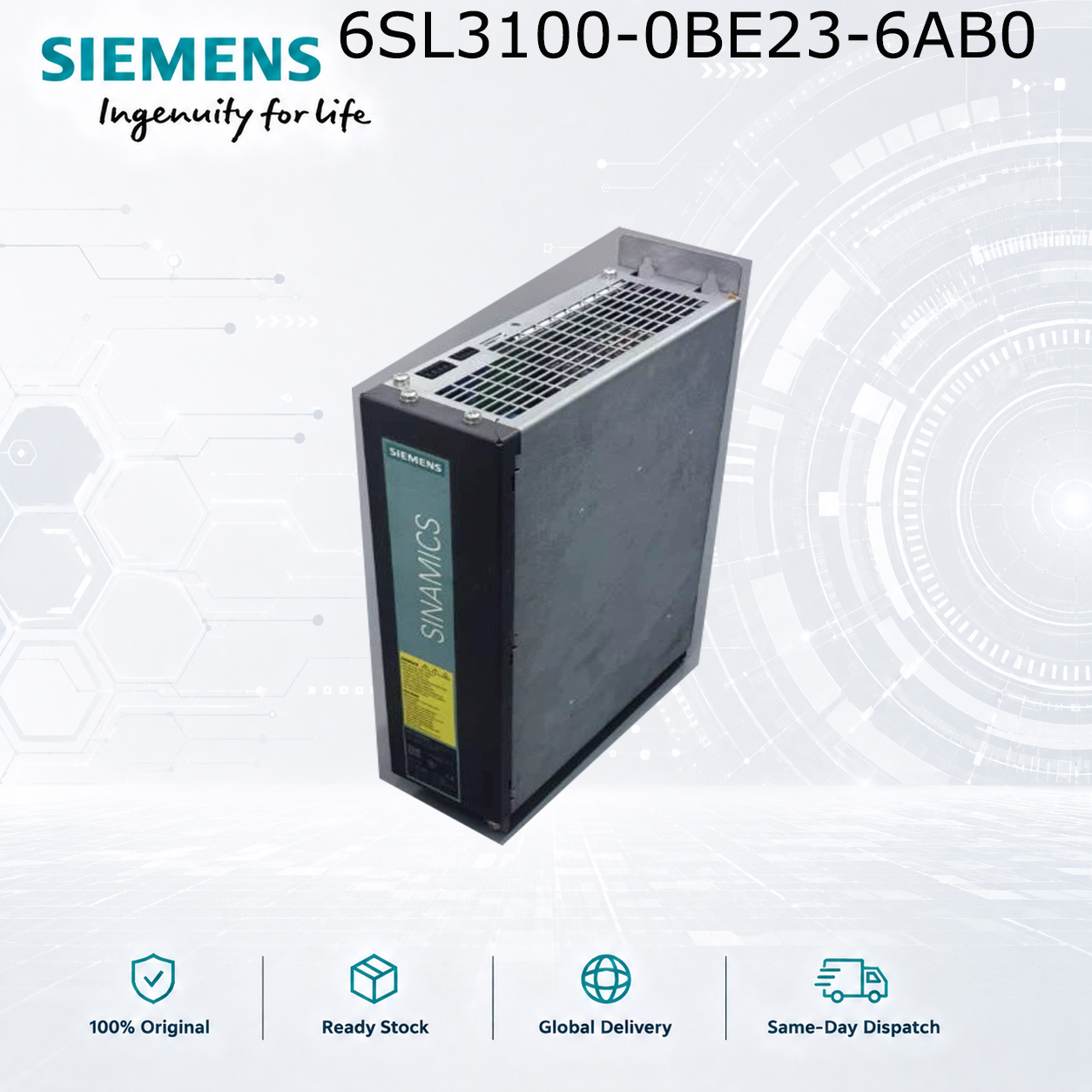

Siemens 6SL3100-0BE23-6AB0 | S120 Active Interface Module

Product Overview
The Siemens 6SL3100-0BE23-6AB0 is a compact S120 Active Interface Module (AIM) from the SINAMICS series. This module is designed for three-phase input voltage range of 380 to 480V AC, providing a nominal current of 0.49A with a built-in resistance of 1440 Ω (±10% tolerance).

Technical Specifications

• Model Number: 6SL3100-0BE23-6AB0

• Product Type: S120 Active Interface Module (AIM)

• Input Voltage: 380-480V 3AC, 50/60Hz

• Nominal Current: 0.49 A

• Built-in Resistance: 1440 Ω (±10%)

• 24V DC Power Input: 1.6 A

• Cooling: Integrated air cooling, 0.04 m³/s airflow

• Energy Loss: 0.34 kW

• Noise Level: 60 dB

• Switching Capacity (250V AC): 0.75 A

• Switching Capacity (60V DC): 0.75 A

• Protection Class: IP20 / UL Open

• Terminal Type: Screw terminals, PE M6 screw

• Dimensions (H x W x D): 270mm x 380mm x 150mm

• Weight: 19.00 kg (approx. 40 lbs)

Typical Applications

• Active Line Modules (ALM)

• Smart Line Modules (SLM)

• S120 drive systems requiring interface module functionality

Installation Notes

• Requires 24V DC power supply for operation

• Suitable for industrial environments (IP20 protection)

• Mount in control panels with adequate clearance for airflow

•
