Siemens 6SL3100-0BE28-0AB0 | S120 Active Interface Module 80kW

Product Overview

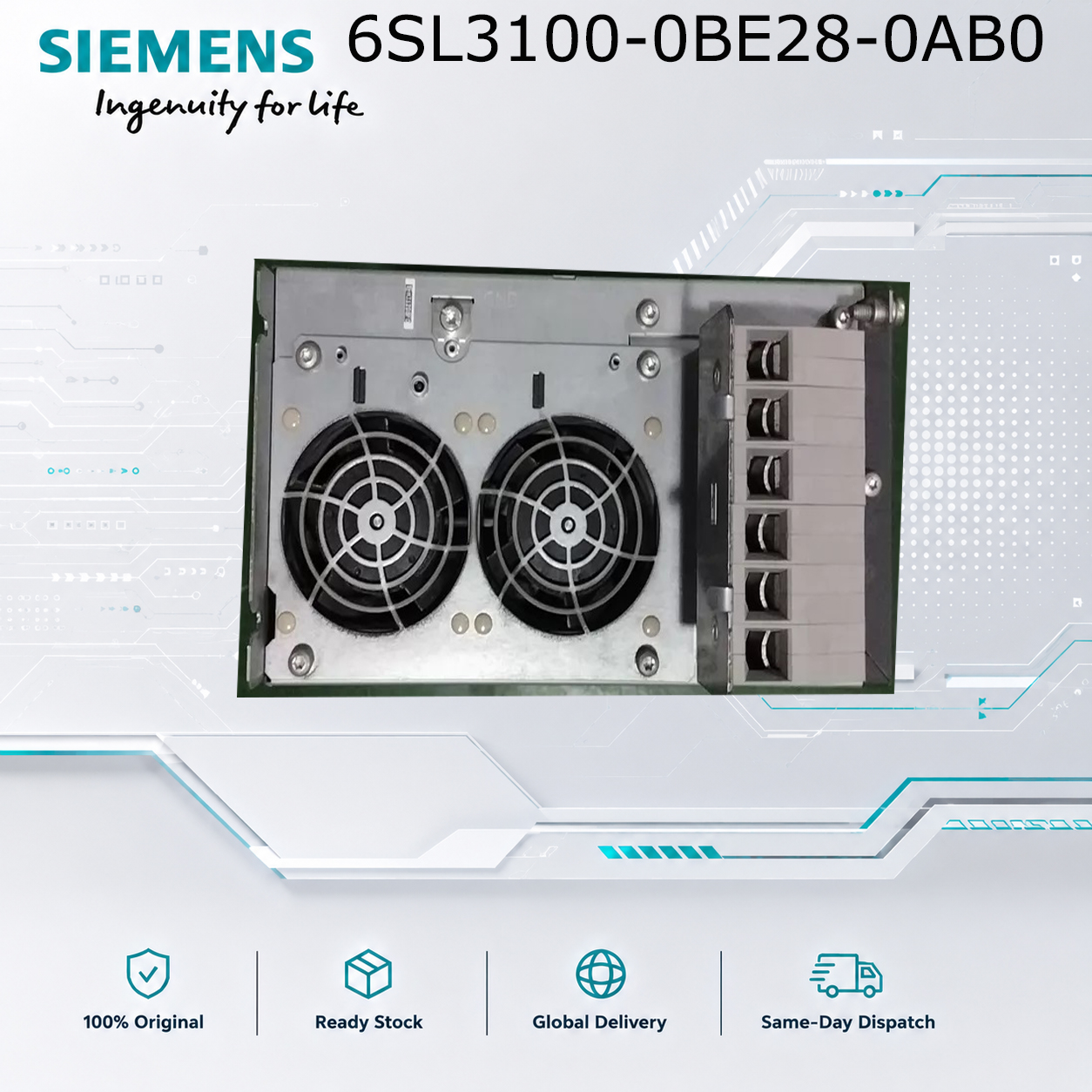

The Siemens 6SL3100-0BE28-0AB0 is an Active Interface Module (AIM) for the SINAMICS S120 drive system. This module is rated for 80kW and is specifically designed to be used with the 80kW Active Line Module (ALM) (e.g., 6SL3130-7TE28-0AA3).

Technical Specifications

• Model Number: 6SL3100-0BE28-0AB0

• Product Type: S120 Active Interface Module (AIM)

• Power Rating: 80 kW

• Rated Current: Approx. 85 A (compatible with 85A motor modules)

• Input Voltage: 380-480V 3AC, 50/60Hz

• Integrated Components: Line filter + Line reactor

• Cooling: Internal air cooling

• Protection Class: IP20

Key Features

• All-in-One Solution: Integrates both filter and reactor functions, eliminating the need for separate external components

• Optimized for 80kW ALM: Perfectly matched to Siemens 80kW Active Line Modules

• EMC Compliance: Meets Category C2/C3 requirements for industrial environments

Application Example
Typical configuration: 80kW ALM (6SL3130-7TE28-0AA3) + 80kW AIM (6SL3100-0BE28-0AB0) + motor modules (e.g., 85A for 30kW servo motors)

Important Note
When using the AIM module, separate external filters and reactors are NOT required as they are integrated within the AIM.
