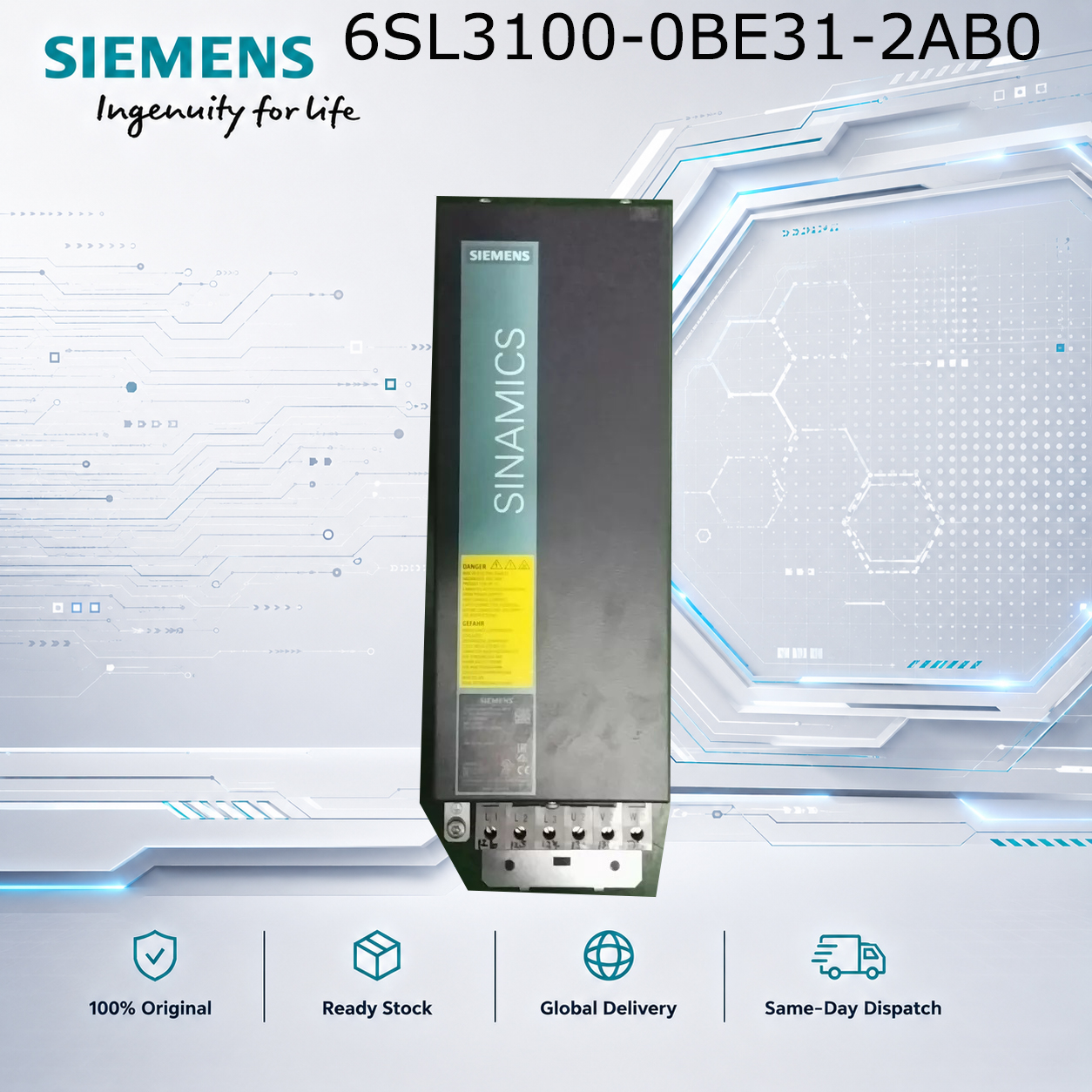

Siemens 6SL3100-0BE31-2AB0 | S120 Active Interface Module 120kW

Product Overview
The Siemens 6SL3100-0BE31-2AB0 is an Active Interface Module (AIM) for the SINAMICS S120 drive system. This module is rated for 120kW/132A and is designed to be used with 120kW Active Line Modules (ALM) supporting up to 132A motor modules.

Technical Specifications

• Model Number: 6SL3100-0BE31-2AB0

• Product Type: S120 Active Interface Module (AIM)

• Power Rating: 120 kW

• Rated Current: 132 A (compatible with 132A motor modules)

• Input Voltage: 380-480V 3AC, 50/60Hz

• Integrated Components: Line filter + Line reactor

• Cooling: Internal air cooling (forced-air for high power)

• Protection Class: IP20

Key Features

• High Power Capacity: Supports up to 120kW ALM and 132A motor modules

• Integrated Filter and Reactor: Complete line interface in one module

• EMC Compliance: Meets Category C2/C3 requirements

Application Notes

• Can be used with larger capacity than required (oversizing is acceptable, but undersizing is not)

• When using AIM, separate external filters are not required

Note on Compatibility
The AIM must match the actual hardware configuration. Software/commissioning tools like SCOUT or STARTER will detect the AIM model during auto-configuration.
