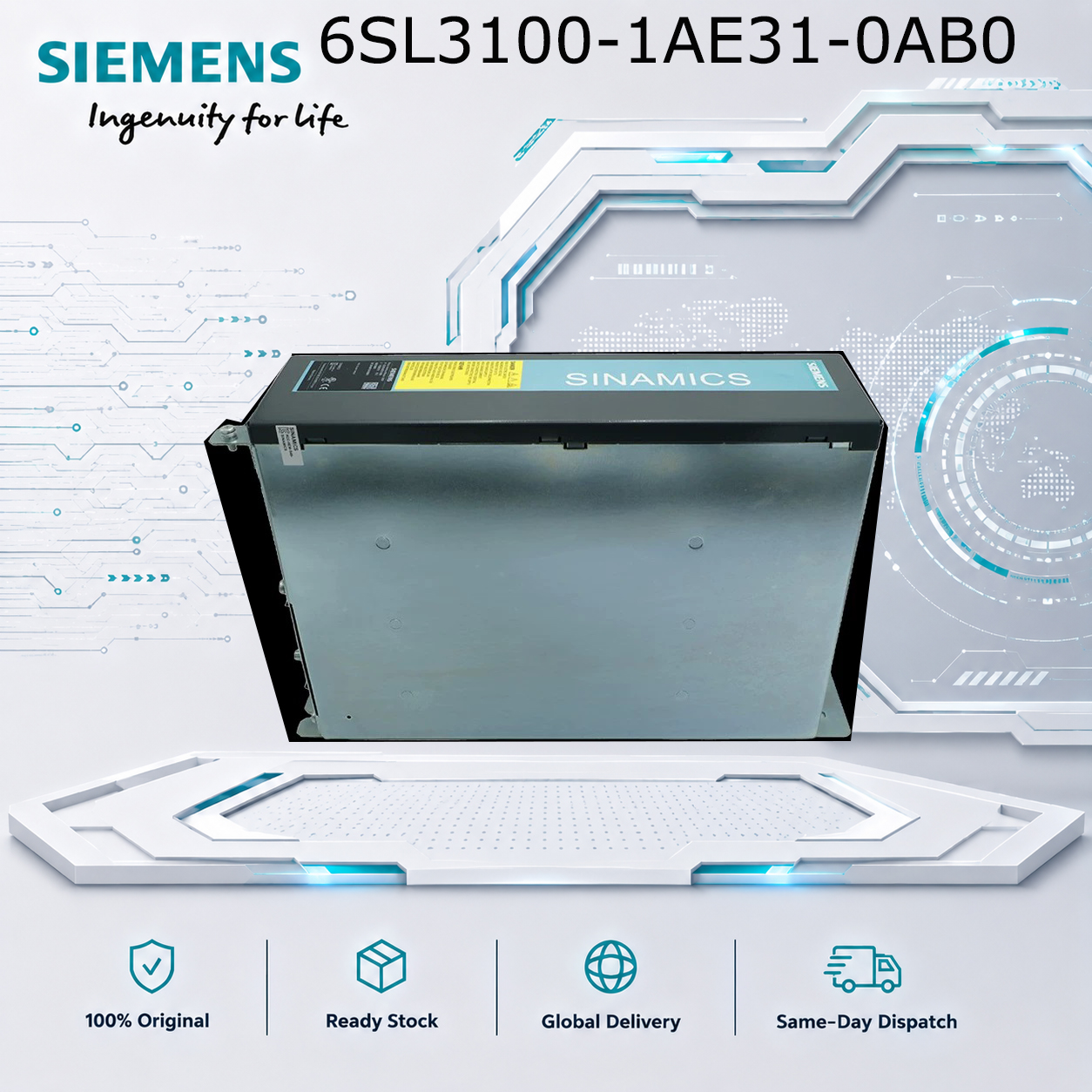

Siemens 6SL3100-1AE31-0AB0 | S120 Active Interface Module 100kW

Product Overview
The Siemens 6SL3100-1AE31-0AB0 is an Active Interface Module (AIM) designed for use with the SINAMICS S120 100kW Basic Line Module (BLM). The BLM (e.g., 6SL3130-1TE31-0AA0) is a non-regenerative line module that supplies DC power to the DC link.

Technical Specifications

• Model Number: 6SL3100-1AE31-0AB0

• Product Type: S120 Active Interface Module (AIM)

• Power Rating: 100 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Compatible Line Module: 100kW Basic Line Module (6SL3130-1TE31-0AA0)

• Integrated Components: Line filter + Line reactor

• Cooling: Internal air cooling

• Protection Class: IP20

Special Note on Parallel Operation
When using Basic Line Modules (BLM) with built-in braking capability, note that 6SL3100-1AE31-0AA0 is specifically mentioned in technical documentation regarding parallel braking module connections.

Key Features

• BLM Compatibility: Optimized for 100kW Basic Line Modules

• Integrated Interface: Complete line connection solution

• EMC Compliant: Meets industrial EMC requirements

Typical Applications

• Basic Line Modules (BLM) 100kW

• DC link power supply for multi-axis S120 systems

• Applications requiring non-regenerative front-end

•
