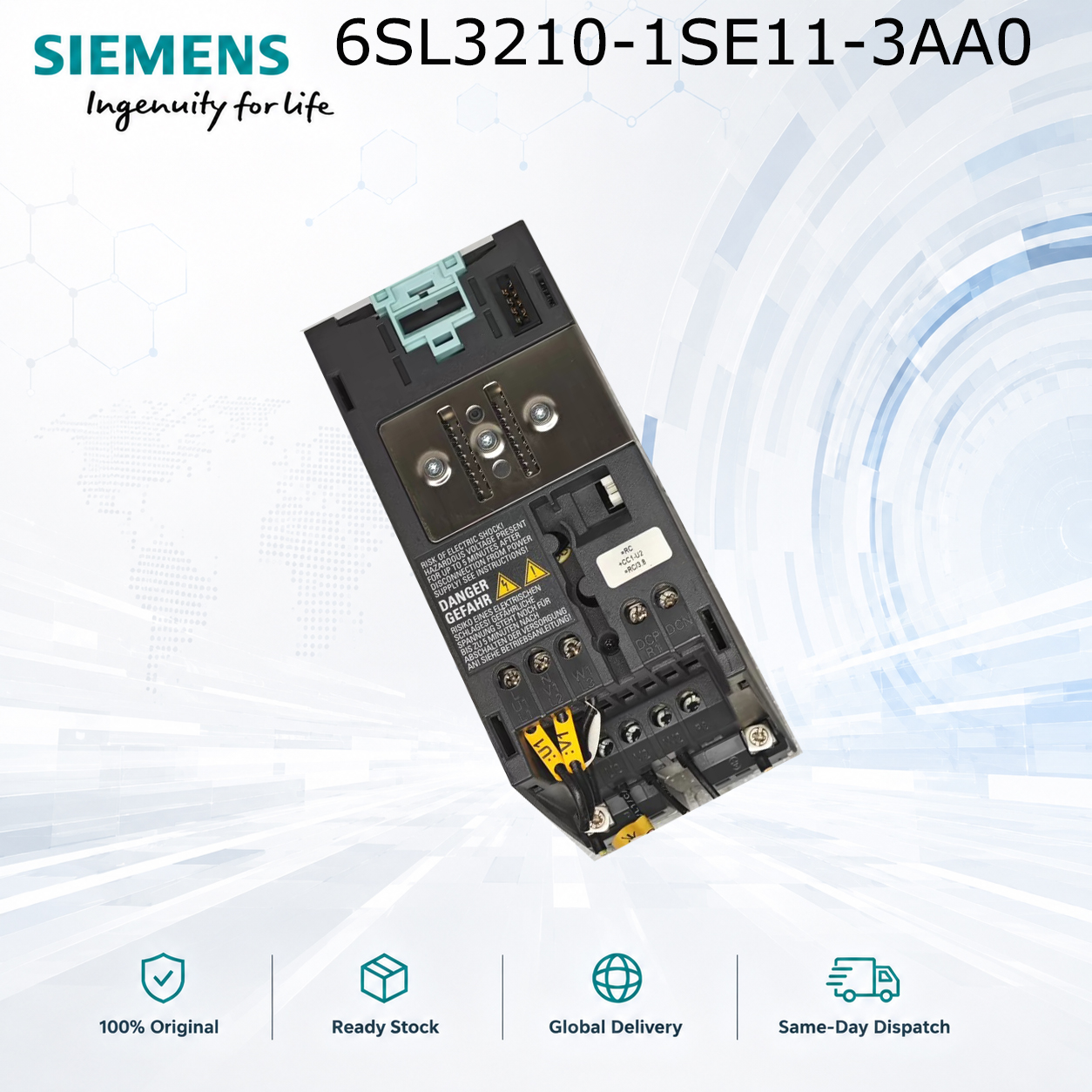

Siemens 6SL3210-1SE11-3AA0 | S120 PM340 0.37kW Standard Power Module

Product Overview
The Siemens 6SL3210-1SE11-3AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this standard version (non-coated) delivers 0.37kW of output power at 1.3A. It features Framesize A (FSA) construction with internal air cooling .

Technical Specifications

• Model Number: 6SL3210-1SE11-3AA0

• Product Type: S120 PM340 Power Module (Standard)

• Rated Power: 0.37 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Rated Output Current: 1.3 A

• Frame Size: Framesize A (FSA) - Blocksize

• Cooling: Internal air cooling

• Safety Function: Safe Torque Off (STO)

• Braking Chopper: Not integrated

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Dimensions: FSA standard (approx. 73mm width)

• Weight: Approx. 1.2 kg

Typical Applications
Small conveyors, packaging machine feeders, laboratory equipment, light positioning axes, small pumps and fans up to 0.37kW.

Key Differentiator - Standard Version (AA0)
This standard version is designed for normal industrial environments without high humidity or corrosive conditions. Choose AA0 for cost-effective solutions in clean, dry environments where additional protective coating is unnecessary.
