Siemens 6SL3210-1SE11-7AA0 | S120 PM340 0.55kW Standard Power Module

Product Overview

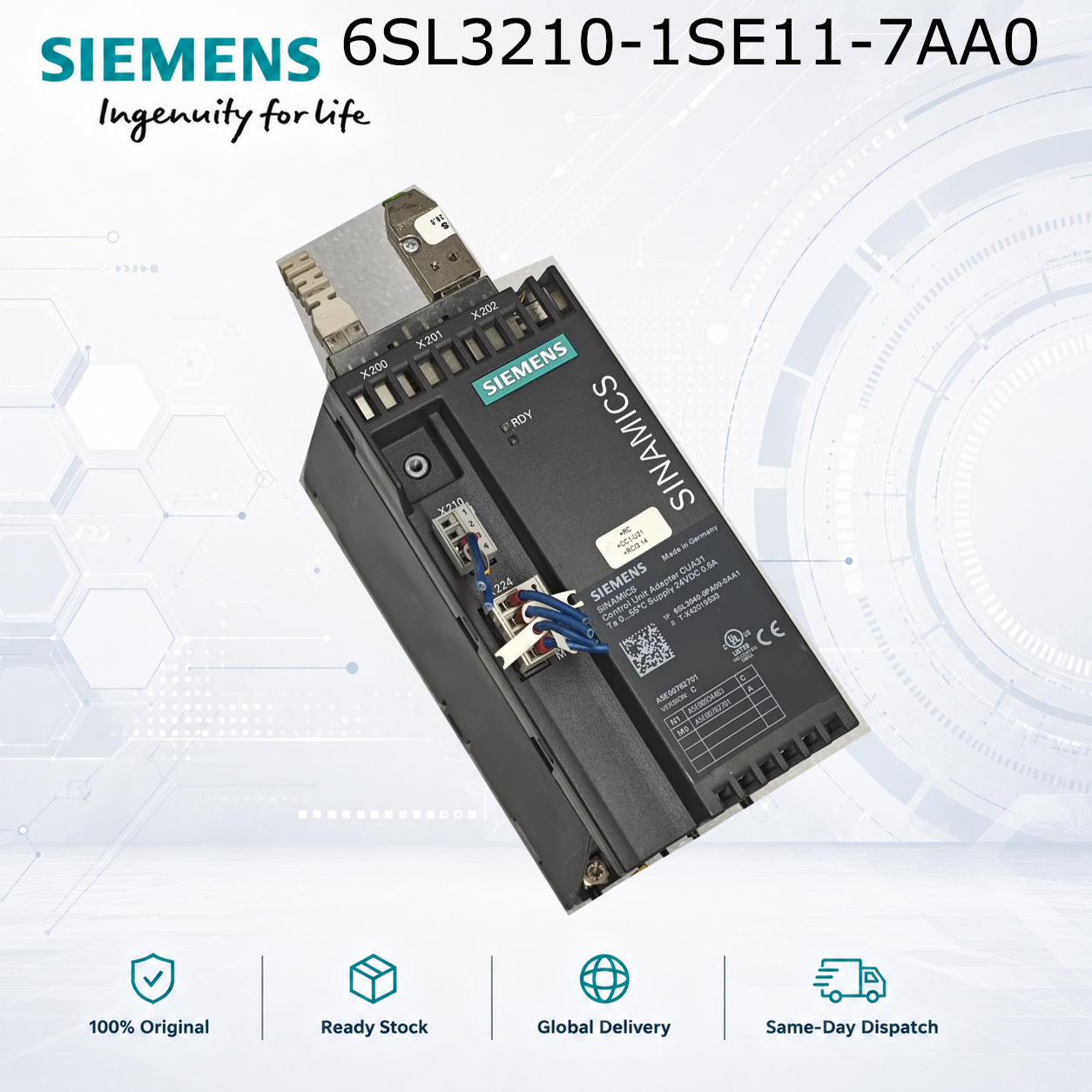

The Siemens 6SL3210-1SE11-7AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 0.55kW of output power at 1.7A. This AA0 version features an integrated line filter for enhanced EMC performance .

Technical Specifications

• Model Number: 6SL3210-1SE11-7AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 0.55 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Rated Output Current: 1.7 A

• Frame Size: Framesize B (FSB) / Blocksize

• Special Feature: Integrated line filter (Class C2 per EN61800-3)

• Cooling: Internal air cooling

• Safety Function: Safe Torque Off (STO)

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

Key Feature - Integrated Line Filter
This AA0 version includes a built-in line filter, providing:

• Class C2 EMC compliance per EN61800-3

• Suitable for TN power systems

• Reduced external component requirements

• Cleaner installation with less cabinet space

Typical Applications
Small conveyors, packaging machine feeders, light positioning axes, small pumps and fans up to 0.55kW in applications requiring EMC compliance without external filters.

AA0 vs UA0 Key Difference

FAqS
