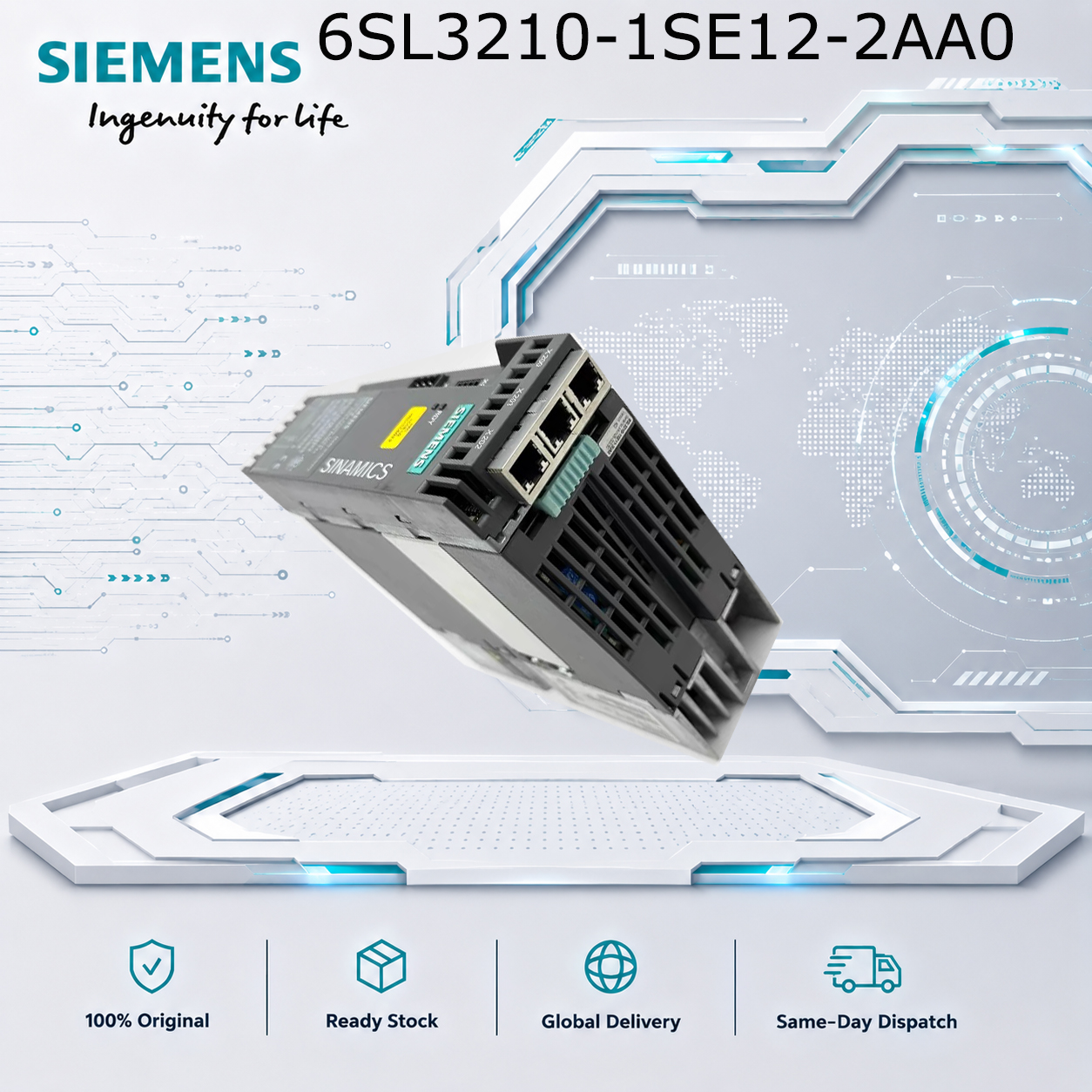

Siemens 6SL3210-1SE12-2AA0 | S120 PM340 0.75kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE12-2AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 0.75kW of output power at 2.2A. This AA0 version features an integrated line filter for EMC compliance .

Technical Specifications

• Model Number: 6SL3210-1SE12-2AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 0.75 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Rated Output Current: 2.2 A

• Frame Size: Framesize A (FSA) / Blocksize

• Dimensions: 73mm x 173mm x 145mm

• Weight: 3.20 kg

• Special Feature: Integrated line filter

• Cooling: Internal air cooling

• Noise Level: <60 dB

• Sound Pressure Level: 0.96 dB(A)

• Humidity Tolerance: 10% to 90% non-condensing

• Protection Class: IP20 / UL open type

Key Feature - Integrated Line Filter
This AA0 version includes a built-in line filter for:

• Class C2 EMC compliance per EN61800-3

• Operation on TN power systems only

• Simplified cabinet installation

• Reduced external component count

Installation Information

• Max motor cable length (shielded): 50m

• Max motor cable length (unshielded): 75m

• Operating temperature: 0°C to 40°C

• Storage temperature: -25°C to +70°C

Typical Applications
Standard industrial applications requiring 0.75kW power with EMC compliance, including small conveyors, packaging machinery, mixers, and pump drives
