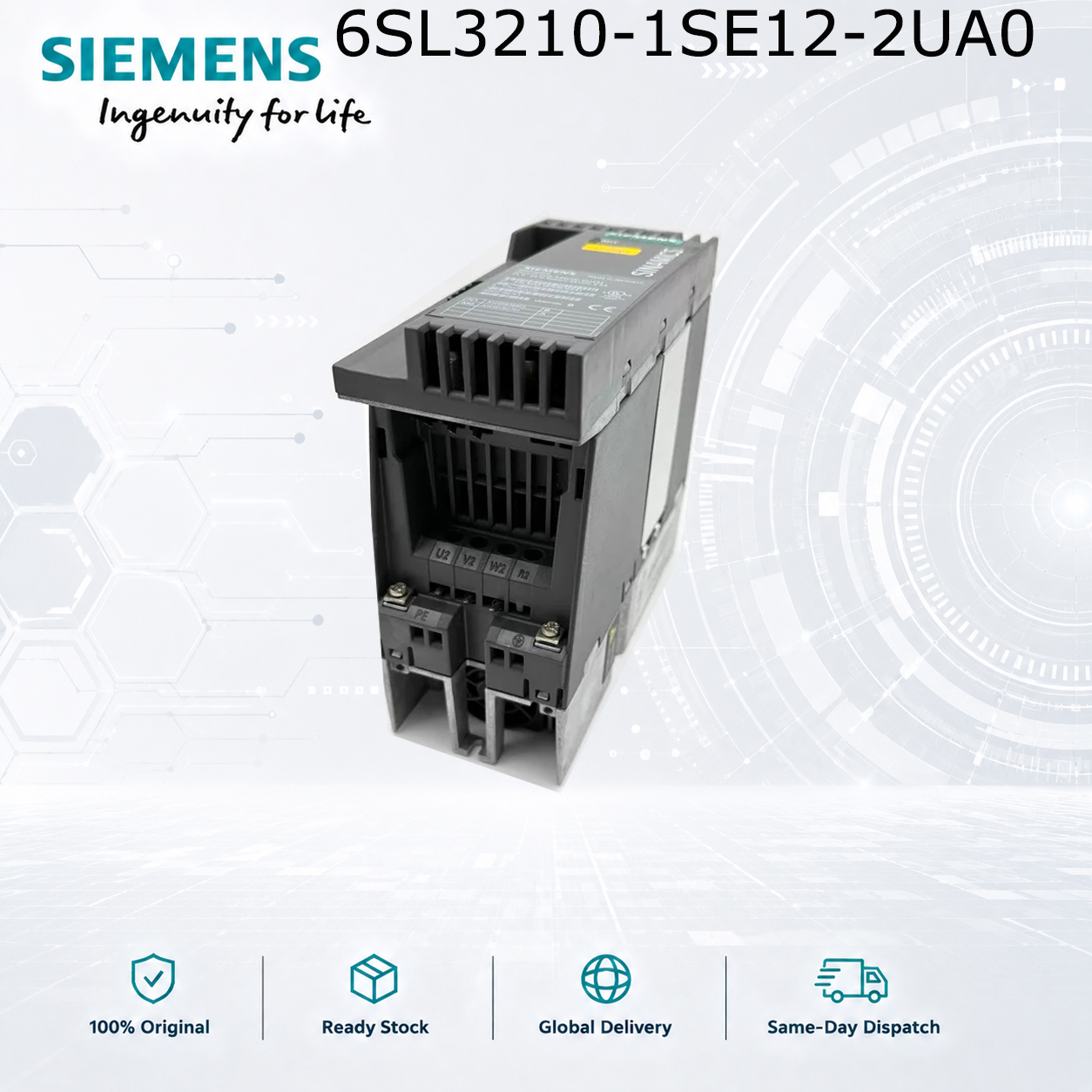

Siemens 6SL3210-1SE12-2UA0 | S120 PM340 0.75kW Power Module

Product Overview
The Siemens 6SL3210-1SE12-2UA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 0.75kW of output power at 2.2A, making it the highest-rated module in the Framesize A (FSA) category before moving up to larger frame sizes.

This module represents the upper limit of the compact FSA form factor, offering maximum power density for applications where cabinet space is at a premium but higher torque is required.

Technical Specifications

• Model Number: 6SL3210-1SE12-2UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 0.75 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 2.2 A

• Input Phases: 3-phase input, 3-phase output

• Frame Size: Framesize A (FSA) - Blocksize

• Efficiency: > 92% at rated load

• Safety Function: Safe Torque Off (STO)

• Braking Chopper: Not integrated

• Communication: DRIVE-CLiQ interface

• Protection Class: IP20 / UL open type

• Cooling Method: Internal air cooling

• Operating Temperature: 0°C to +40°C

• Storage Temperature: -25°C to +70°C

• Humidity: 10% to 90% non-condensing

• Noise Level: Typically less than 60 dB

• Sound Pressure Level: 0.96 dB(A)

• Dimensions: 73mm x 173mm x 145mm (W x H x D)

• Weight: Approx. 3.20 kg

What‘s Included

• 6SL3210-1SE12-2UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Recommended for this power class

• 24V DC power supply: 0.5A minimum

• Control unit: CU310-2 or CU320-2

Typical Applications for 6SL3210-1SE12-2UA0

This 0.75kW module is the highest power in the compact FSA class, suitable for:

• Standard conveyor systems (10-15 meters)

• Small packaging machines (form-fill-seal, cartoners)

• Small mixers and agitators (0.75kW motors)

• Light-duty palletizers

• Small extruders and injection molding auxiliary equipment

• Fan and pump drives (0.75kW)

Why Choose the 0.75kW Model?

The 6SL3210-1SE12-2UA0 is the highest power available in the compact FSA footprint:

• Maximum power density: Get 0.75kW in the same 73mm width as the 0.37kW model

• Future-proofing: Extra capacity for motor upgrades or load increases

• Cost-effective: Avoid jumping to larger (and more expensive) frame sizes

System Compatibility

Compatible with:

• CU310-2 PN (PROFINET)

• CU310-2 DP (PROFIBUS)

• CU320-2 PN (multi-axis setups, up to 6 axes)

• TIA Portal V15.1 and newer

• STARTER V4.5 and newer

Real-World Installation Tips

• Maximum motor cable length: Shielded cables up to 50m, unshielded up to 75m.

• Noise considerations: With typical noise levels under 60 dB, this module is suitable for office-adjacent or noise-sensitive environments.

• Thermal management: At 0.75kW continuous operation, ensure proper airflow. The FSA form factor runs warmer at max rating than lower-power variants.

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the frame size of 6SL3210-1SE12-2UA0?
A: This module uses Framesize A (FSA) / Blocksize construction. It has the same physical dimensions as the 0.37kW and 0.55kW models but delivers higher power output.

Q: What are the physical dimensions?
A: Width: 73mm, Height: 173mm, Depth: 145mm. Weight is approximately 3.20 kg.

Q: What is the noise level of this module?
A: The module operates with noise levels typically under 60 dB, with a sound pressure level of 0.96 dB(A), making it suitable for noise-sensitive environments.

Q: What is the maximum motor cable length?
A: Shielded motor cables up to 50m, unshielded up to 75m.

Q: Is this an original Siemens product?
A: Yes. 100% genuine with full manufacturer warranty.
