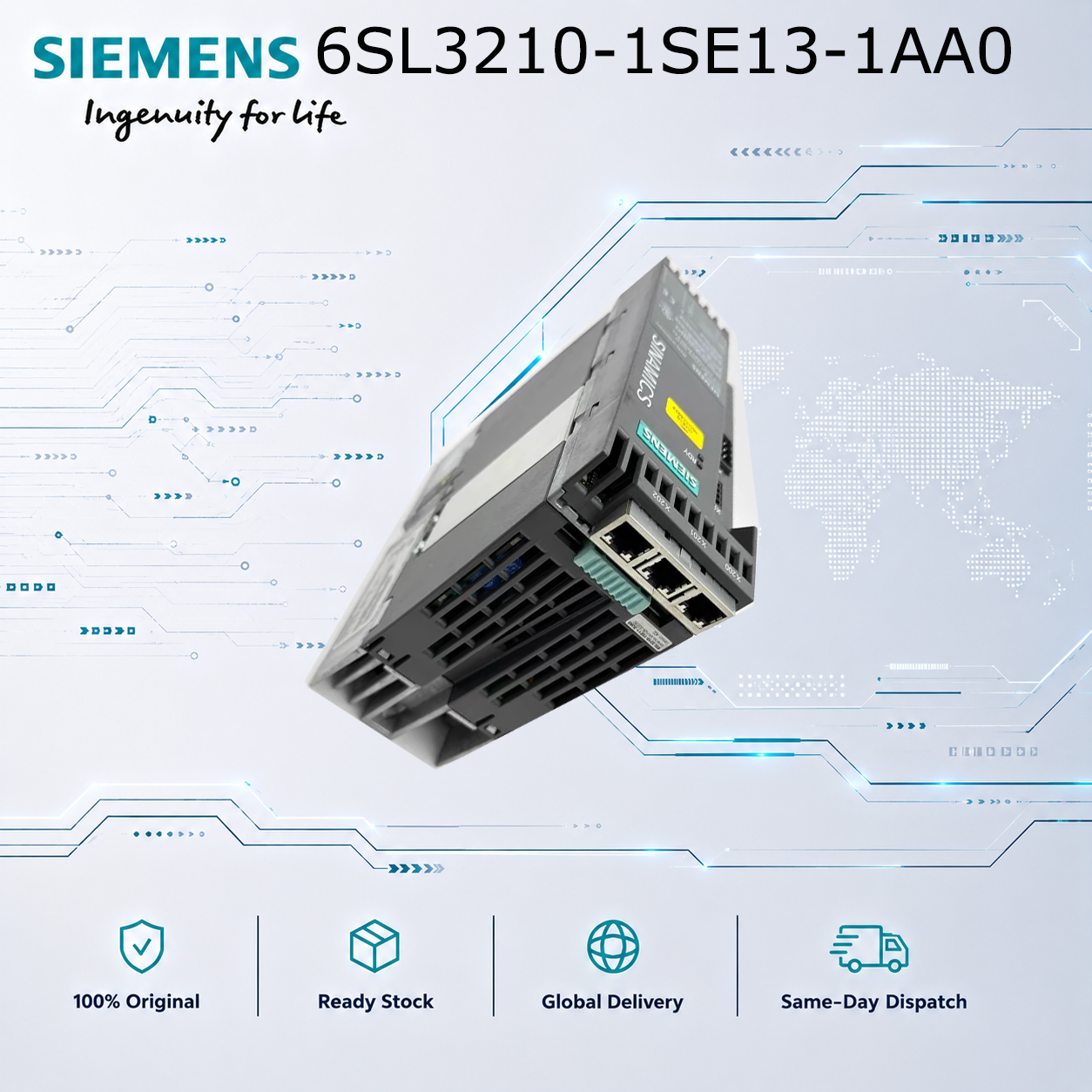

Siemens 6SL3210-1SE13-1AA0 | S120 PM340 1.1kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE13-1AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 1.1kW of output power at 3.1A. This AA0 version features an integrated line filter for EMC compliance .

Technical Specifications

• Model Number: 6SL3210-1SE13-1AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 1.1 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Rated Output Current: 3.1 A

• Frame Size: Framesize A (FSA) / Blocksize

• Special Feature: Integrated line filter (Class C2)

• Cooling: Internal air cooling

• Safety Function: Safe Torque Off (STO)

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

Key Feature - Integrated Line Filter
This AA0 version includes a built-in line filter providing:

• Class C2 EMC compliance per EN61800-3

• Suitable for TN power systems

• Simplified installation without external filtering components

Typical Applications
Standard industrial applications requiring 1.1kW power with EMC compliance, including medium conveyors, packaging machinery, mixers, small extruders, and pump drives up to 1.1kW .
