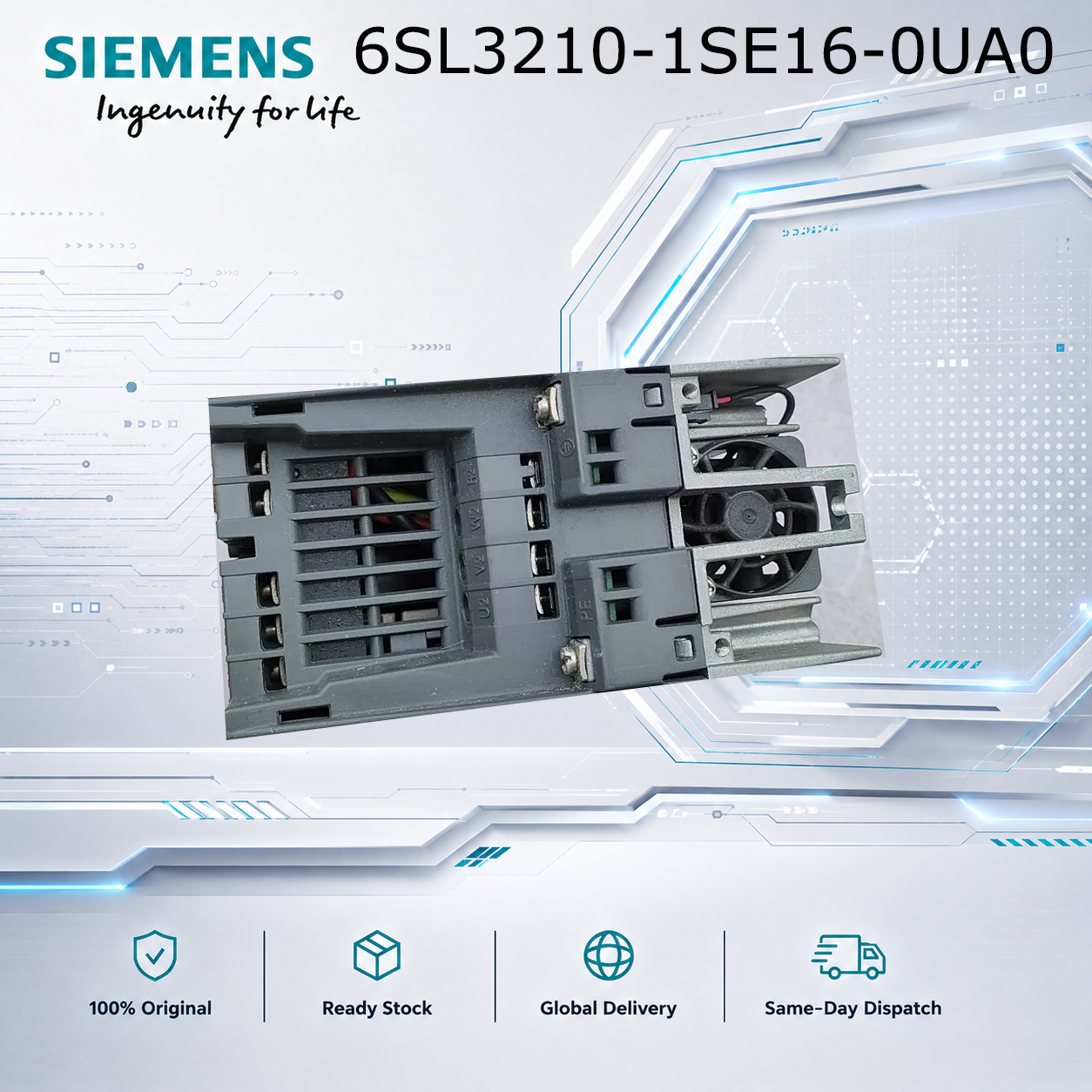

Siemens 6SL3210-1SE16-0UA0 | S120 PM340 2.2kW Power Module

Product Overview
The Siemens 6SL3210-1SE16-0UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 2.2kW of output power, representing the transition from Framesize A (FSA) to Framesize B (FSB) construction .

This module operates within a wider input voltage range of 280-480V AC, offering greater flexibility for applications with unstable power supplies. It is designed for industrial applications requiring higher power output while maintaining a compact Booksized footprint.

Technical Specifications

• Model Number: 6SL3210-1SE16-0UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 2.2 kW

• Input Voltage: 280-480V AC (3-phase)

• Rated Output Current: 5.0 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize B (FSB) - Blocksize

• Cooling Type: Internal air cooling

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Operating Humidity: Up to 80% RH (non-condensing)

• Maximum Operating Altitude: 1000m above sea level

• Storage Humidity: Up to 80% RH (non-condensing)

• Dimensions: Larger than FSA, consult Siemens manual for exact measurements

• Weight: Approx. 4.0 kg

What‘s Included

• 6SL3210-1SE16-0UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 1.0A minimum (higher than FSA models)

• Control unit: CU310-2 or CU320-2

Typical Applications for 6SL3210-1SE16-0UA0

This 2.2kW module is ideal for :

• Medium conveyor systems

• Packaging machinery (vertical form-fill-seal, flow wrappers)

• Industrial mixers and agitators

• Small extruders

• Palletizers and stackers

• Fan and pump drives up to 2.2kW

• Material handling equipment

Why Choose the 2.2kW Model?

The 6SL3210-1SE16-0UA0 marks the entry point into the FSB frame size:

• Wider voltage tolerance: Operates from 280V to 480V AC, offering better performance during voltage fluctuations

• Higher power capacity: 2.2kW output for more demanding applications

• Transition point: Ideal when FSA power is insufficient but larger chassis modules are unnecessary

System Compatibility

Compatible with:

• CU310-2 PN (PROFINET)

• CU310-2 DP (PROFIBUS)

• CU320-2 PN (multi-axis setups)

• TIA Portal V15.1 and newer

• STARTER / SCOUT software

Altitude Derating Information
Above 1000m altitude, derating is required. For installations above 1000m, contact technical support for specific current reduction requirements .

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the input voltage range for 6SL3210-1SE16-0UA0?
A: This module operates on 280-480V AC, three-phase. This wider range (compared to the standard 380-480V) offers better tolerance for voltage fluctuations .

Q: What is the weight of this module?
A: The module weighs approximately 4.0 kg .

Q: What altitude can this module operate at?
A: Maximum operating altitude is 1000m above sea level without derating. Above 1000m, contact technical support for derating requirements .

Q: What humidity levels can this module tolerate?
A: Operating and storage humidity up to 80% relative humidity, non-condensing .
