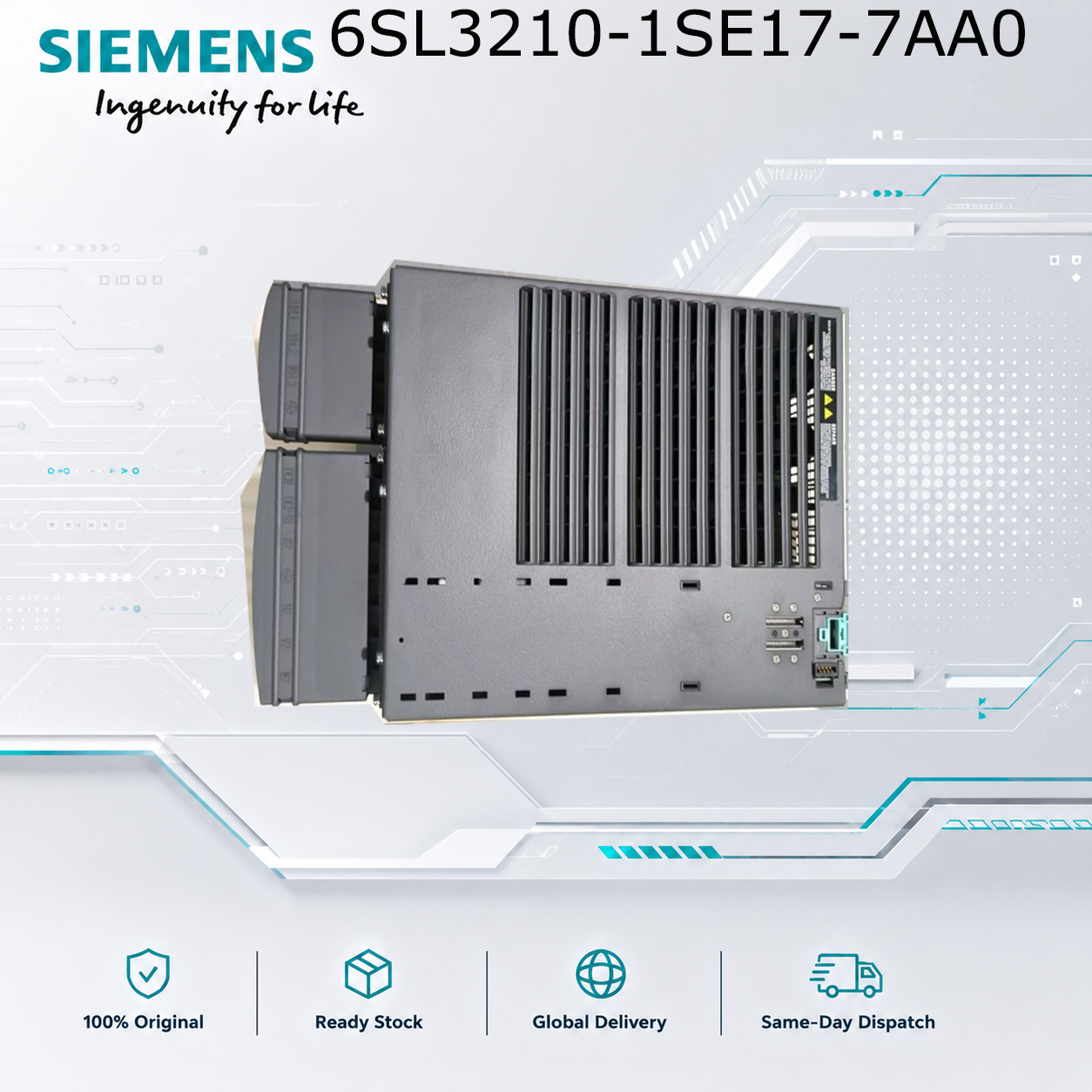

Siemens 6SL3210-1SE17-7AA0 | S120 PM340 3.0kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE17-7AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 3.0kW of output power at 7.7A. This AA0 version features an integrated line filter for EMC compliance .

Technical Specifications

• Model Number: 6SL3210-1SE17-7AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 3.0 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Rated Output Current: 7.7 A

• Frame Size: Framesize B (FSB) / Blocksize

• Special Feature: Integrated line filter

• Cooling: Internal air cooling

• Protection Class: IP20

• Product Dimensions: 270mm x 165mm x 153mm (H x D x W)

• Net Weight: 4.000 kg

• Operating Temperature: 0°C to +40°C

• Product Lifecycle: PM410 - Discontinued (as of 2019.10.01)

Key Feature - Integrated Line Filter
This AA0 version includes a built-in line filter providing Class C2 EMC compliance per EN61800-3, suitable for TN power systems only .

Product Lifecycle Notice
⚠️ This product has been discontinued by Siemens (effective October 1, 2019) and is now available as a spare/replacement part only .

Typical Applications
Industrial applications requiring 3.0kW power with EMC compliance, including standard conveyors, packaging machinery, industrial mixers, and pump drives.

What's Included

• 6SL3210-1SE17-7AA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

•
