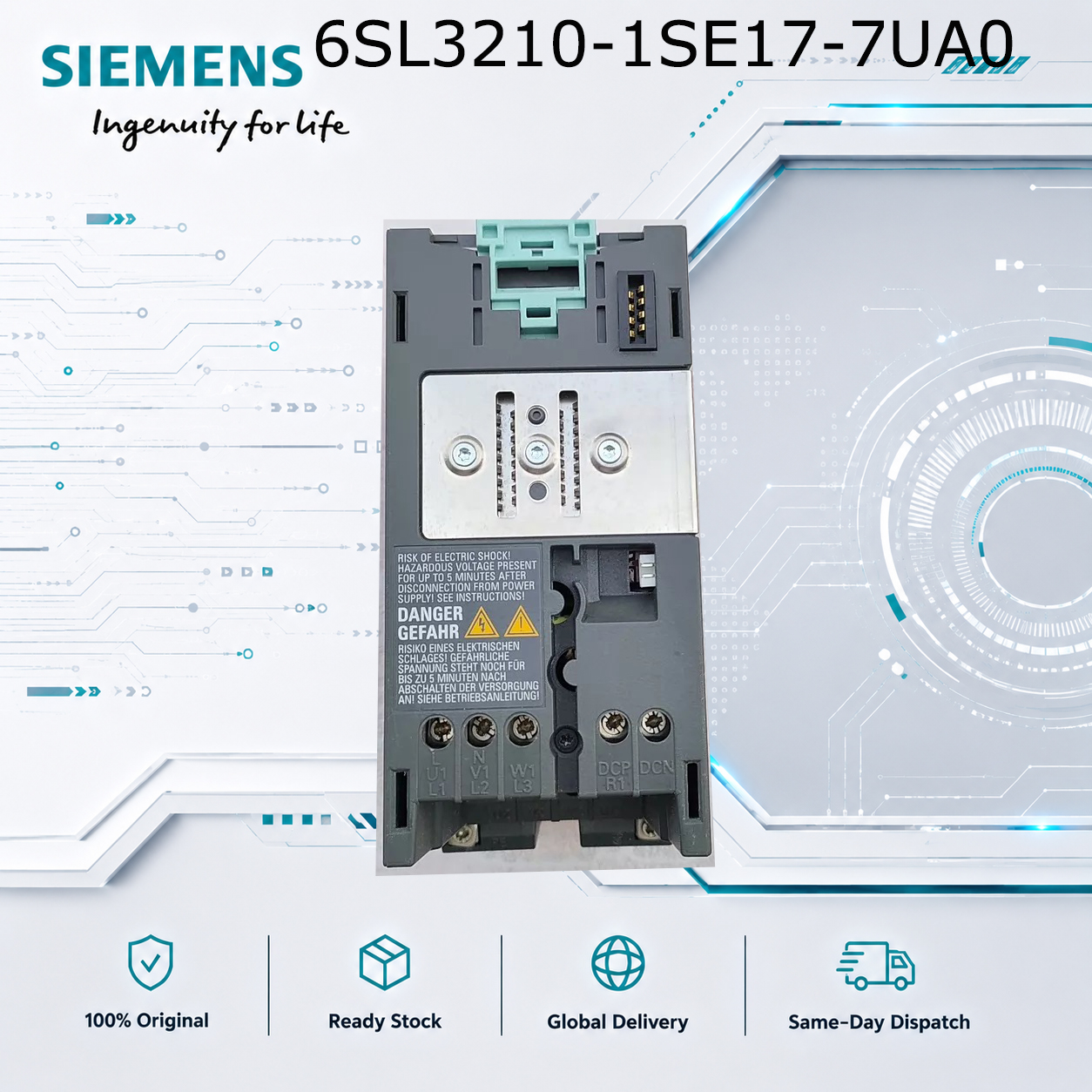

Siemens 6SL3210-1SE17-7UA0 | S120 PM340 3.0kW Power Module

Product Overview
The Siemens 6SL3210-1SE17-7UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 3.0kW of output power at 7.7A, making it a popular mid-range option for industrial automation applications .

This module represents the standard offering in the Framesize B (FSB) category, offering excellent power density for applications requiring up to 3.0kW. It is designed for industrial environments where reliable performance and compact dimensions are essential.

Technical Specifications

• Model Number: 6SL3210-1SE17-7UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 3.0 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 7.7 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize B (FSB) - Blocksize

• Cooling Type: Internal air cooling

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Storage Temperature: -40°C to +70°C

• Dimensions: FSB standard dimensions

• Weight: Standard FSB weight

Product Lifecycle Notice
Please note that Siemens has announced end-of-life for this model (effective October 1, 2019). This product is now available as a spare/replacement part only .

What‘s Included

• 6SL3210-1SE17-7UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 1.0A minimum

• Control unit: CU310-2 or CU320-2

Typical Applications for 6SL3210-1SE17-7UA0

This 3.0kW module is well-suited for :

• Medium to large conveyor systems

• Packaging machinery (horizontal form-fill-seal, cartoners)

• Industrial mixers and agitators

• Small extruders and injection molding machines

• Palletizers and stackers

• Fan and pump drives up to 3.0kW

• Material handling and logistics equipment

Why Choose the 3.0kW Model?

The 6SL3210-1SE17-7UA0 is often the preferred choice for standard industrial applications:

• Balanced performance: 3.0kW at 7.7A offers excellent power for a wide range of applications

• FSB efficiency: Optimized thermal performance in the FSB form factor

• Common size: One of the most frequently specified PM340 modules for standard applications

System Compatibility

Compatible with:

• CU310-2 PN (PROFINET)

• CU310-2 DP (PROFIBUS)

• CU320-2 PN (multi-axis setups)

• TIA Portal engineering platform

• STARTER / SCOUT software

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the rated output current of 6SL3210-1SE17-7UA0?
A: The module provides 7.7A output current at 3.0kW power rating .

Q: Is this product still in production?
A: Siemens has discontinued this model as of October 1, 2019. It is now available only as a spare or replacement part. Verify stock availability before ordering .

Q: What frame size does this module use?
A: This module uses Framesize B (FSB) / Blocksize construction .

Q: What cooling method does this module use?
A: Internal air cooling .
