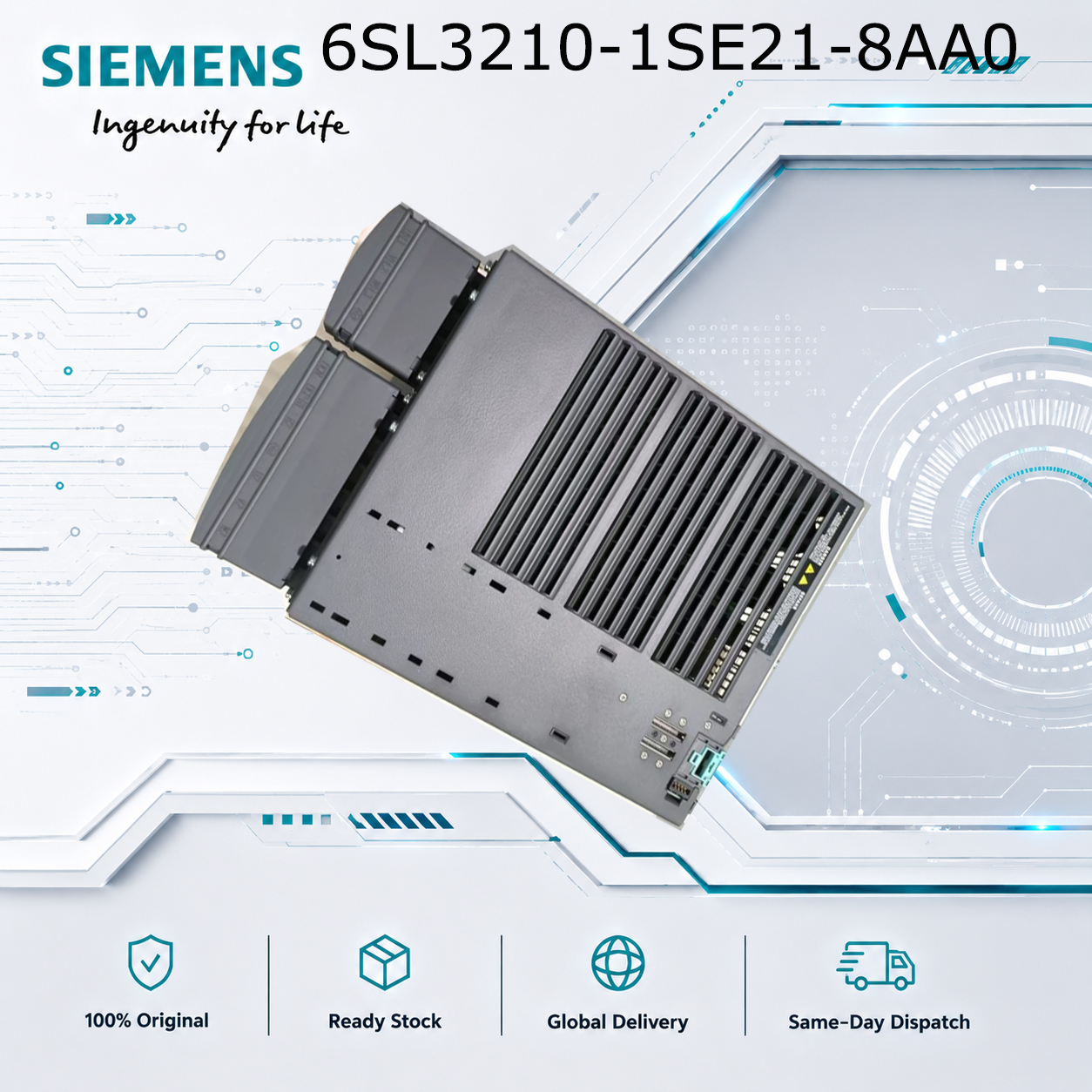

Siemens 6SL3210-1SE21-8AA0 | S120 PM340 7.5kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE21-8AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 7.5kW of output power at 18A. This AA0 version features an integrated line filter for EMC compliance .

Technical Specifications

• Model Number: 6SL3210-1SE21-8AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 7.5 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Rated Output Current: 18 A

• Frame Size: Framesize C (FSC) / Blocksize

• Special Feature: Integrated line filter

• Cooling: Internal air cooling

• Protection Class: IP20

• Dimensions (W x H x D): 188.4mm x 333.4mm x 185mm

• Net Weight: 6.5 kg

• UPC: 662643433630

• Operating Temperature: 0°C to +40°C

• Storage Temperature: -25°C to +70°C

Key Feature - Integrated Line Filter
This AA0 version includes a built-in line filter providing Class C2 EMC compliance per EN61800-3, reducing electrical noise and ensuring reliable operation of connected equipment .

Typical Applications
Industrial applications requiring 7.5kW power with EMC compliance, including medium to large conveyors, industrial mixers, small extruders, compressors, and blowers.

What's Included

• 6SL3210-1SE21-8AA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

•
