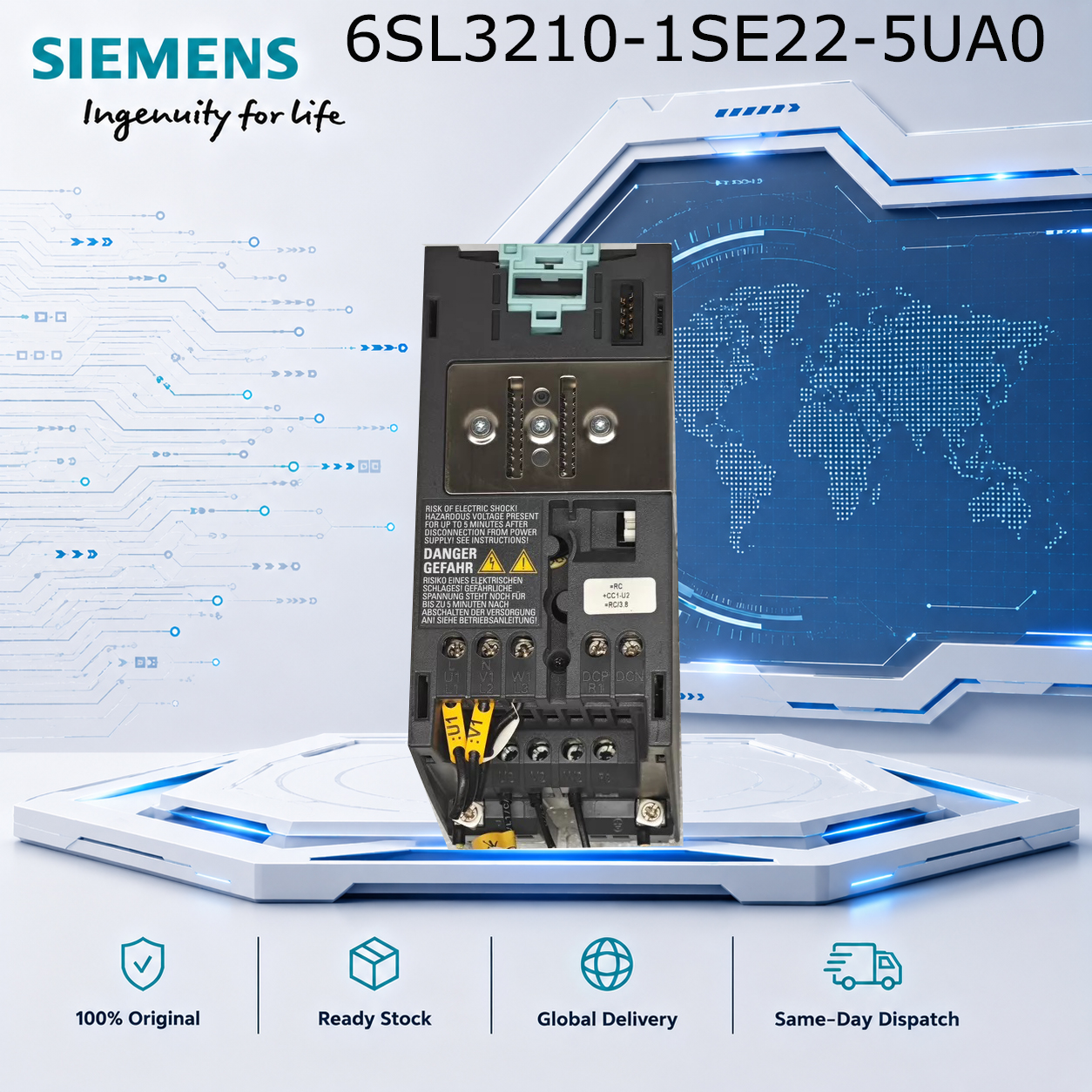

Siemens 6SL3210-1SE22-5UA0 | S120 PM340 7.5kW Power Module

Product Overview
The Siemens 6SL3210-1SE22-5UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 7.5kW of output power at 25A, making it a popular mid-range option in the Framesize C (FSC) category .

This module operates on a three-phase 380-480V AC input and supports flexible control modes including V/f, vector control, and servo control for synchronous motors. It features built-in braking chopper and supports multi-axis applications with CU320-2 control units.

Technical Specifications

• Model Number: 6SL3210-1SE22-5UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 7.5 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 25.0 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize C (FSC) - Booksized

• Control Method: V/f, vector control, servo control

• Integrated Safety: Safe Torque Off (STO)

• Braking Chopper: Built-in

• Cooling Type: Internal air cooling

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Weight: Approx. 8.0-9.0 kg

What‘s Included

• 6SL3210-1SE22-5UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 1.5A minimum

• Control unit: CU310-2 or CU320-2

• Braking resistor: For dynamic braking applications

Typical Applications for 6SL3210-1SE22-5UA0

This 7.5kW module is well-suited for:

• Large conveyor systems

• Industrial mixers and agitators

• Extruders and injection molding machines

• Palletizers and stackers

• Fan and pump drives up to 7.5kW

• Compressors and blowers

• Material handling and logistics systems

• Hoists and cranes (light duty)

Comparison with Adjacent Models

Frequently Asked Questions

Q: What control methods does this module support?
A: The 6SL3210-1SE22-5UA0 supports V/f control, vector control, and servo control for synchronous motors, offering maximum flexibility.

Q: Does this module include a braking chopper?
A: Yes, a built-in braking chopper is included for dynamic braking applications.

Q: Can this module be used in multi-axis applications?
A: Yes, when paired with a CU320-2 control unit, this module can be part of a multi-axis S120 drive system.
