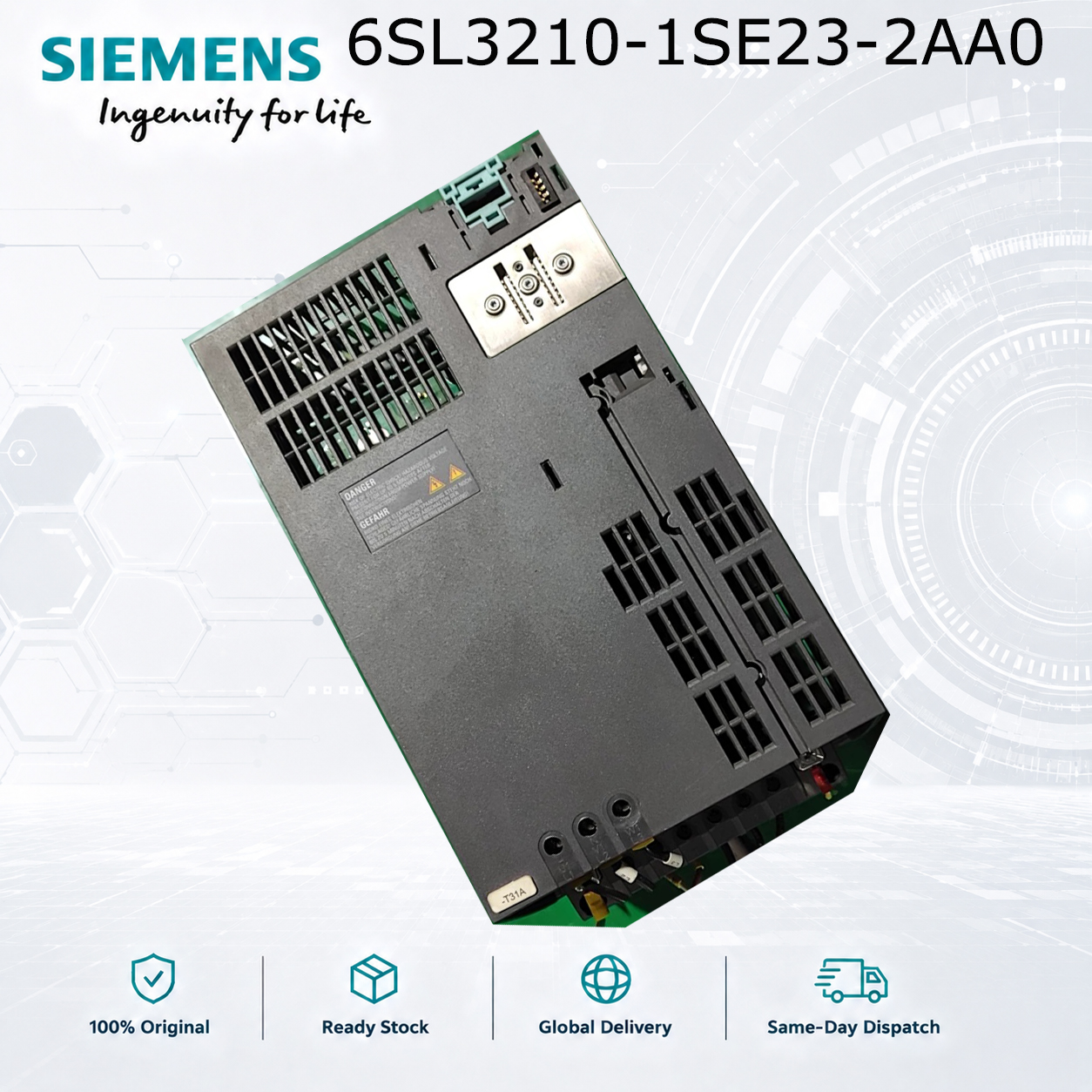

Siemens 6SL3210-1SE23-2AA0 | S120 PM340 15kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE23-2AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 15kW of output power at 32A. This AA0 version features an integrated line filter for EMC compliance .

Technical Specifications

• Model Number: 6SL3210-1SE23-2AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 15 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Input Current: 105 A (max)

• Rated Output Current: 32 A

• Frame Size: Framesize C (FSC) / Blocksize

• Special Feature: Integrated line filter

• Cooling: Internal air cooling

• Protection Class: IP20

• Net Weight: 6.500 kg

• Weight (alternate): 5.44 kg (12.00 lbs)

• Storage Temperature: -40°C to 70°C

• Operating Temperature: 0°C to +40°C

• Product Lifecycle: PM410 - Discontinued (as of 2019.10.01)

Key Feature - Integrated Line Filter
This AA0 version includes a built-in line filter that assists in minimizing electrical noise and improving performance reliability .

Product Lifecycle Notice
⚠️ This product has been discontinued by Siemens (effective October 1, 2019) and is now available as a spare/replacement part only .

Typical Applications
Industrial applications requiring 15kW power with EMC compliance, including medium to large conveyors, industrial mixers, small extruders, compressors, and blowers.

What's Included

• 6SL3210-1SE23-2AA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

•
