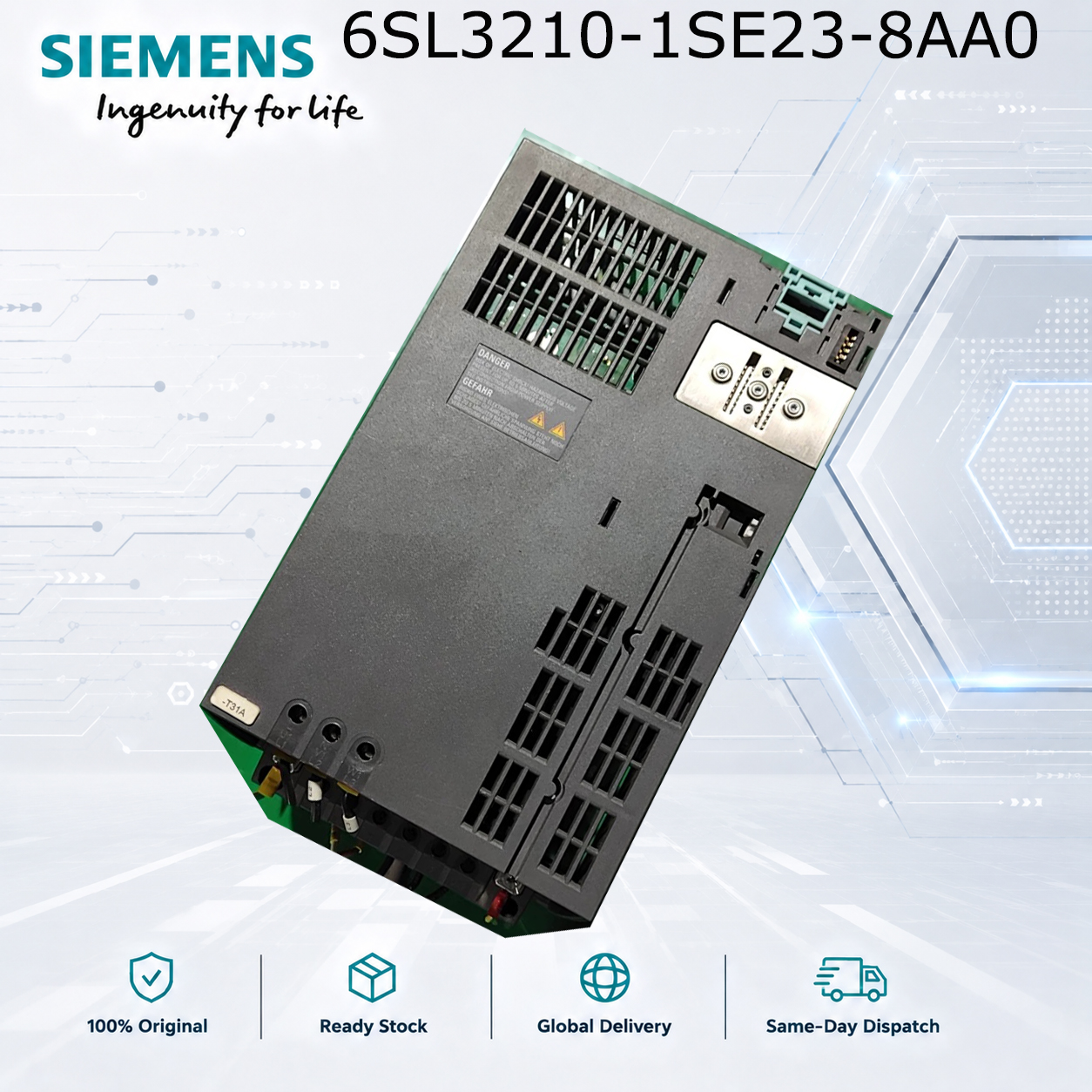

Siemens 6SL3210-1SE23-8AA0 | S120 PM340 18.5kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE23-8AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 18.5kW of output power at 38A. This AA0 version features a built-in line filter for EMC compliance .

Technical Specifications

• Model Number: 6SL3210-1SE23-8AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 18.5 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Rated Output Current: 38 A

• Frame Size: Framesize D (FSD) / Blocksize

• Special Feature: Built-in line filter

• Cooling: Internal air cooling

• Protection Class: IP20

• Weight: 17.69 kg (39.00 lbs)

• Minimum Input Voltage: 380 V

• Maximum Input Voltage: 480 V

• Operating Frequency: 50-60 Hz

• Construction: Blocksize Frame

Key Feature - Built-in Line Filter
This AA0 version includes a built-in line filter that helps reduce electrical noise, ensuring reliable operation of connected equipment .

Note on Frame Size
This module uses Framesize D (FSD) construction. Note that some industry sources may list this as FSC or FSD - please verify compatibility before ordering .

Typical Applications
Industrial applications requiring 18.5kW power with EMC compliance, including heavy-duty conveyors, industrial mixers, extruders, compressors, and large pump drives.

What's Included

• 6SL3210-1SE23-8AA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

•
