Siemens 6SL3210-1SE23-8UA0 | S120 PM340 15kW Power Module

Product Overview

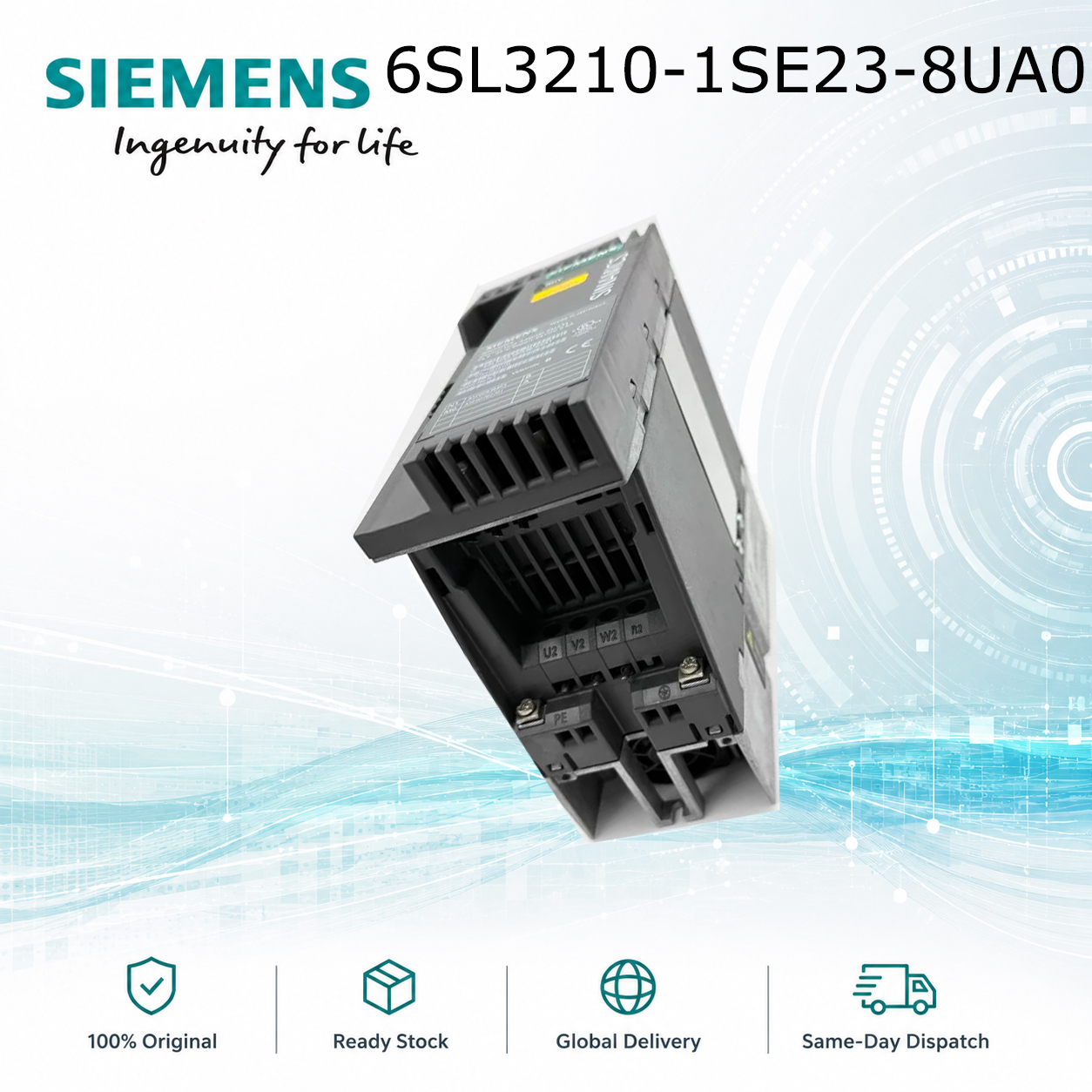

The Siemens 6SL3210-1SE23-8UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 15kW of output power at 38A, representing the maximum power rating in the Framesize C (FSC) category before transitioning to larger frame sizes .

This module is designed for demanding industrial applications requiring high power output while maintaining the compact Booksize format. It offers the highest power density available in the FSC form factor.

Technical Specifications

• Model Number: 6SL3210-1SE23-8UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 15.0 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 38.0 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize C (FSC) - Booksized

• Integrated Safety: Safe Torque Off (STO)

• Braking Chopper: Built-in

• Cooling Type: Internal air cooling

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Weight: Approx. 13.0-14.0 kg

Product Lifecycle Notice
Please note that Siemens has announced end-of-life for this model (effective October 1, 2019). This product is now available as a spare/replacement part only.

What‘s Included

• 6SL3210-1SE23-8UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 2.0A minimum

• Control unit: CU310-2 or CU320-2

Typical Applications for 6SL3210-1SE23-8UA0

This 15kW module is ideal for:

• Heavy-duty conveyor systems

• Large industrial mixers and agitators

• Extruders and injection molding machines

• Large palletizers and stackers

• Fan and pump drives up to 15kW

• Compressors and blowers

• Hoists and cranes

• Test stands and dynamometers

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the rated output of 6SL3210-1SE23-8UA0?
A: The module provides 15kW output power at 38A current rating.

Q: Is this product still in production?
A: Siemens has discontinued this model as of October 1, 2019. It is now available only as a spare or replacement part.

Q: What is the frame size?
A: This is the maximum power rating for Framesize C (FSC).
