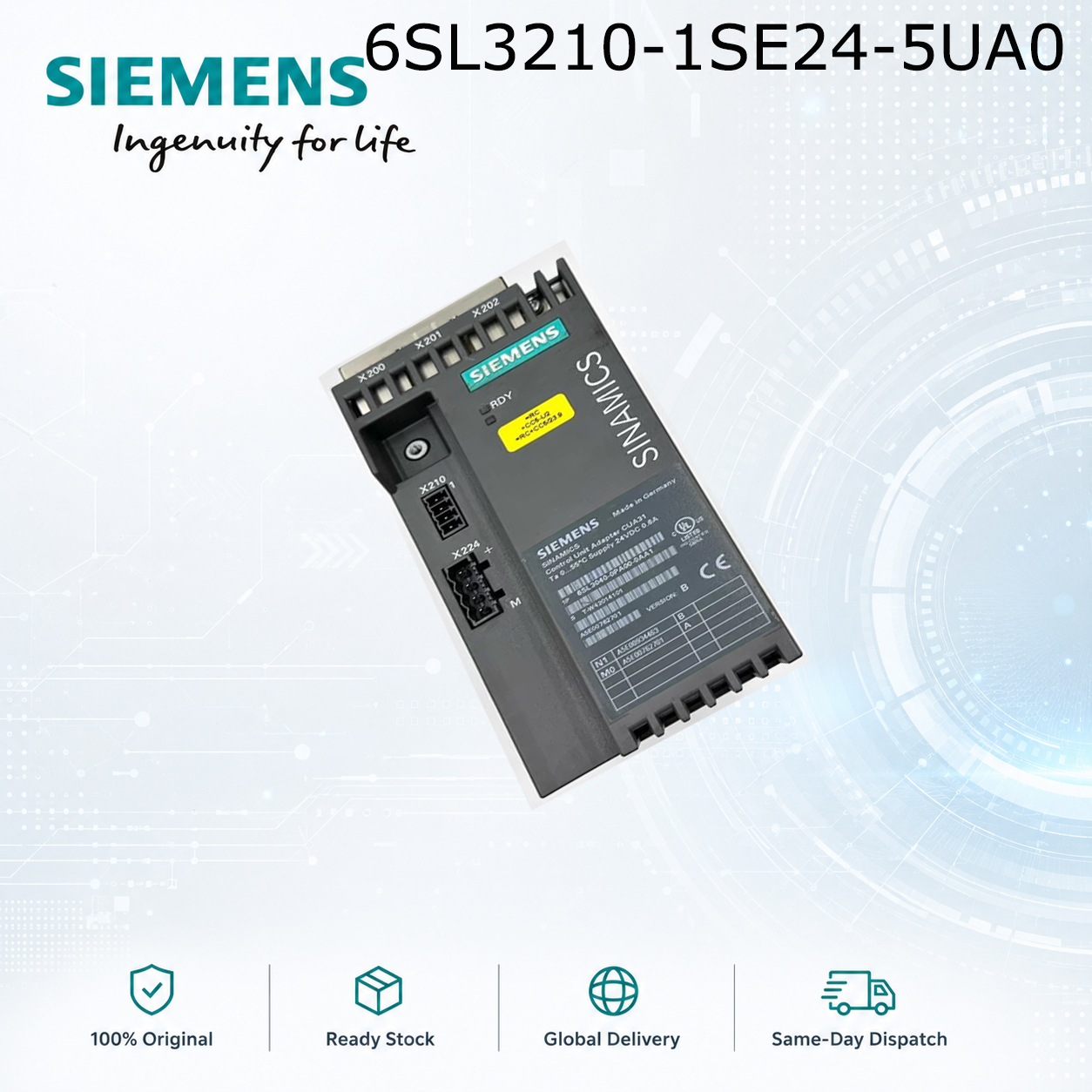

Siemens 6SL3210-1SE24-5UA0 | S120 PM340 18.5kW Power Module

Product Overview
The Siemens 6SL3210-1SE24-5UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 18.5kW of output power at 45A, representing the entry level of the Framesize D (FSD) category .

This module is designed for heavy industrial applications requiring substantial power output. The FSD frame size features a 100mm width and is designed for high current applications with forced-air cooling for optimal performance.

Technical Specifications

• Model Number: 6SL3210-1SE24-5UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 18.5 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 45.0 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize D (FSD) - 100mm width

• Integrated Safety: Safe Torque Off (STO)

• Braking Chopper: Built-in

• Cooling Type: Forced-air cooling (internal fan)

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Dimensions: 100mm width × 355mm height × 275mm depth

• Weight: Approx. 19.0 kg

What‘s Included

• 6SL3210-1SE24-5UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 2.5A minimum

• Control unit: CU310-2 or CU320-2

Typical Applications for 6SL3210-1SE24-5UA0

This 18.5kW module is ideal for:

• Heavy-duty conveyor systems

• Large industrial mixers and agitators

• Extruders and injection molding machines

• Palletizers and stackers

• Fan and pump drives up to 18.5kW

• Compressors and blowers

• Hoists and cranes

• Test stands

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the frame size of 6SL3210-1SE24-5UA0?
A: This module uses Framesize D (FSD) with 100mm width.

Q: What cooling method does this module use?
A: Unlike smaller FSC modules, the FSD series uses forced-air cooling with an internal fan.

Q: What are the dimensions?
A: Width: 100mm, Height: 355mm, Depth: 275mm. Weight is approximately 19.0 kg.
