Siemens 6SL3210-1SE26-0UA0 | S120 PM340 22kW Power Module

Product Overview

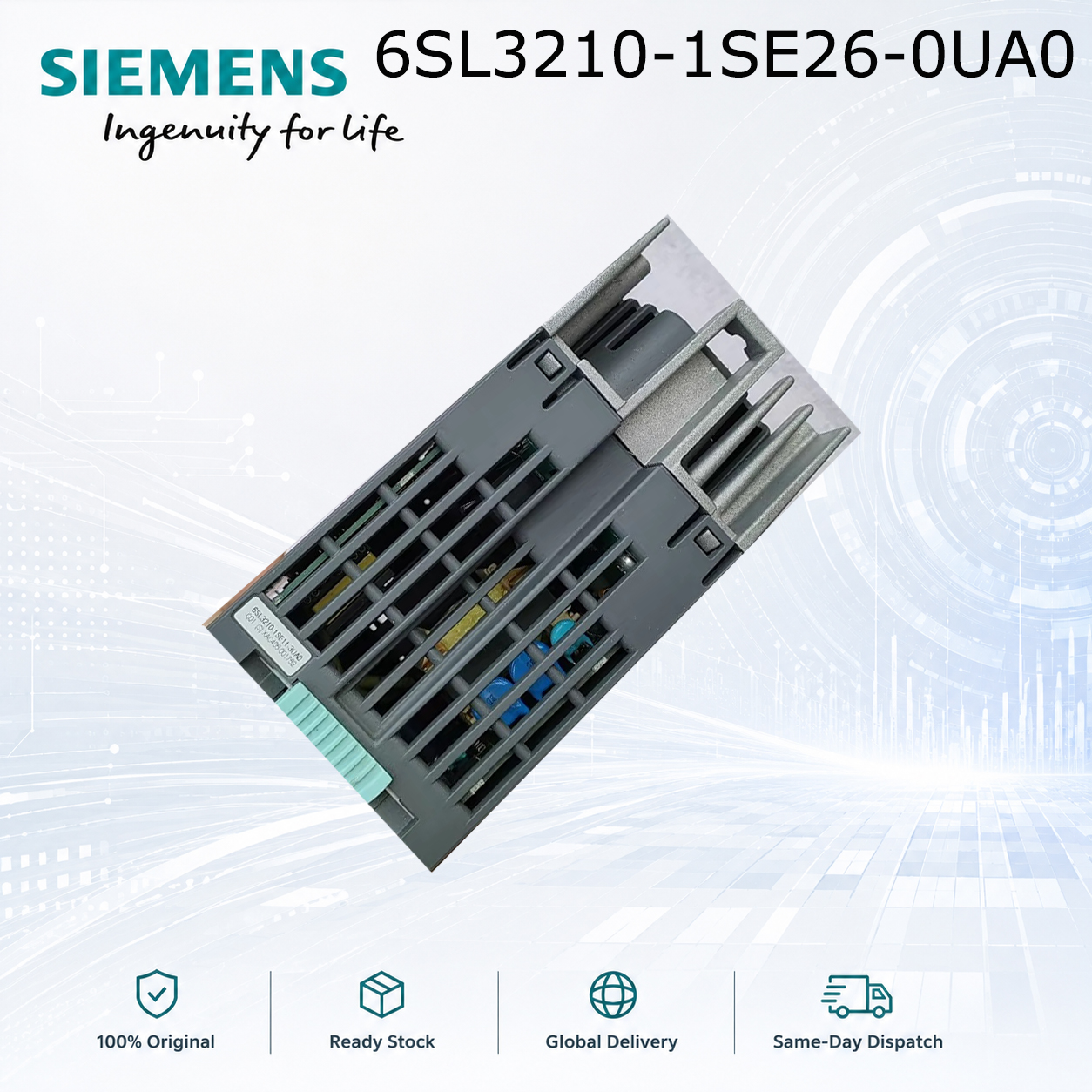

The Siemens 6SL3210-1SE26-0UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 22kW of output power at 60A, representing a standard offering in the Framesize D (FSD) category .

This module is designed for heavy industrial applications requiring substantial power output. It operates on a three-phase 380-480V AC input and includes a built-in braking chopper and forced-air cooling.

Technical Specifications

• Model Number: 6SL3210-1SE26-0UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 22.0 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 60.0 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize D (FSD) - 100mm width

• Integrated Safety: Safe Torque Off (STO)

• Braking Chopper: Built-in

• Cooling Type: Forced-air cooling (internal fan)

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Dimensions: 100mm width × 355mm height × 275mm depth

• Weight: Approx. 19.5 kg

What‘s Included

• 6SL3210-1SE26-0UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 2.5A minimum

• Control unit: CU310-2 or CU320-2

Typical Applications for 6SL3210-1SE26-0UA0

This 22kW module is ideal for:

• Heavy-duty conveyor systems

• Large industrial mixers and agitators

• Extruders and injection molding machines

• Palletizers and stackers

• Fan and pump drives up to 22kW

• Compressors and blowers

• Hoists and cranes

• Test stands

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the rated output current of 6SL3210-1SE26-0UA0?
A: The module provides 60.0A output current at 22kW power rating.

Q: What frame size does this module use?
A: Framesize D (FSD) with 100mm width.

Q: Does this module include forced-air cooling?
A: Yes, the FSD series includes an internal fan for forced-air cooling.
