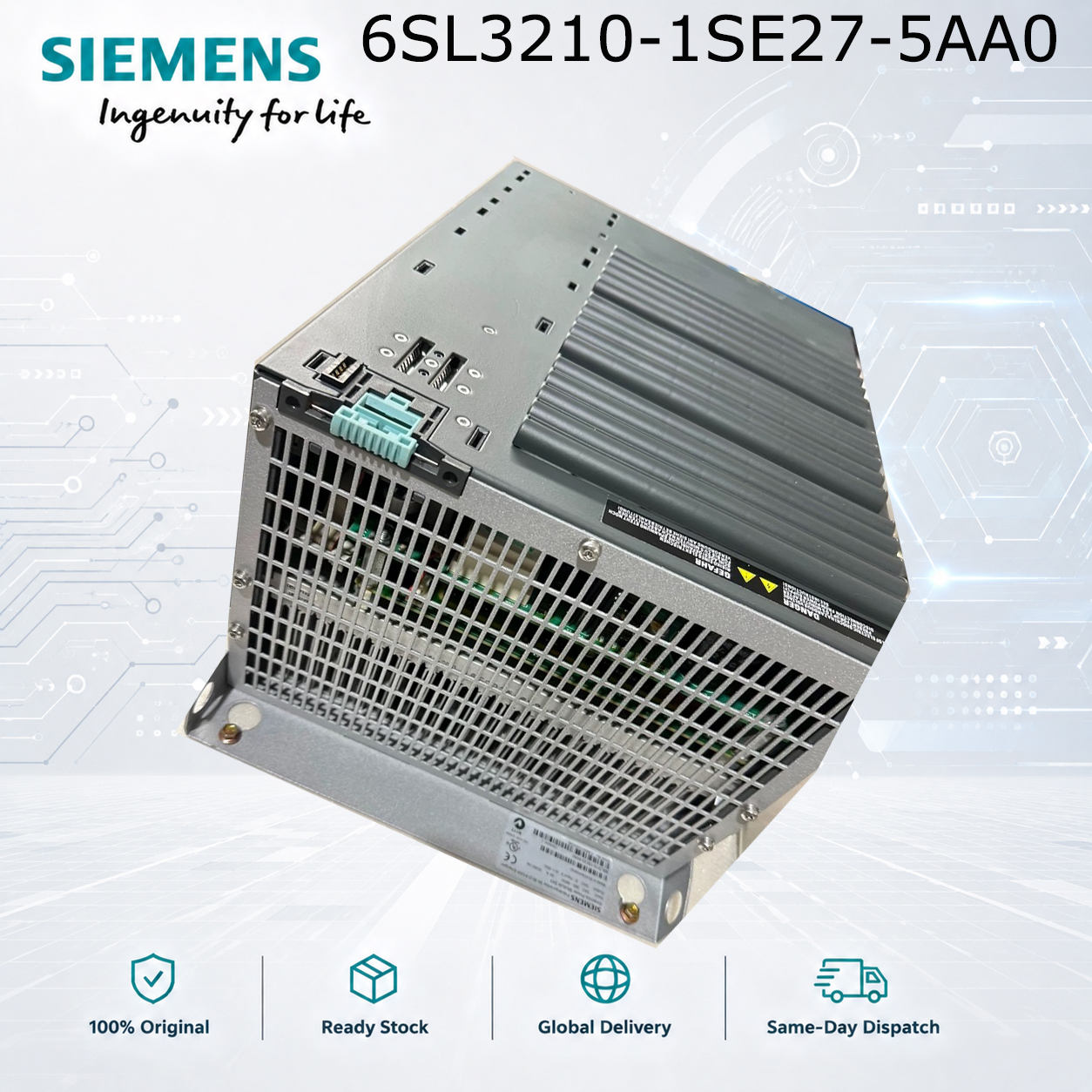

Siemens 6SL3210-1SE27-5AA0 | S120 PM340 30-37kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE27-5AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 30-37kW of output power. This AA0 version features a built-in line filter and fan cooling for enhanced performance .

Technical Specifications

• Model Number: 6SL3210-1SE27-5AA0

• Product Type: S120 PM340 Power Module

• Rated Active Power: 30 to 37 kW

• Input Voltage: 380-480V 3AC

• Rated Current: 65 to 75 A

• Maximum Output Current: 124 A

• Line Frequency: 47 to 63 Hz

• Rated Pulse Frequency: 4 kHz

• Frame Size: Framesize D (FSD)

• Special Feature: Built-in line filter

• Cooling Method: Fan cooling

• Protection Class: IP20

• Power Loss: 0.99 kW

• Ambient Operating Temperature: 0°C to 40°C (non-condensing)

• Humidity Tolerance: 95% RH at 40°C (without condensation)

• Storage Temperature: -25°C to 70°C

• Installation Altitude: Up to 1,000 meters above sea level

• UPC: 662643259179

Key Features

• Fan Cooling: Unlike smaller FSC modules with internal air cooling, this FSD module uses active fan cooling for improved thermal management at higher power levels

• Built-in Line Filter: Provides EMC compliance for TN power systems

• High Power Density: 30-37kW output in compact FSD format

Typical Applications
Industrial applications requiring 30-37kW power with EMC compliance, including:

• Heavy-duty conveyor systems

• Large industrial mixers and agitators

• Extruders and injection molding machines

• Large compressors and blowers

• High-capacity pump drives

• Test stands and dynamometers

Installation Notes

• Install in clean indoor environments free from corrosive chemicals

• Maintain proper clearance for airflow (fan cooling requires adequate ventilation)

• Maximum altitude: 1,000 meters above sea level without derating

What's Included

• 6SL3210-1SE27-5AA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

•
