Siemens 6SL3210-1SE27-5UA0 | S120 PM340 30kW Power Module

Product Overview

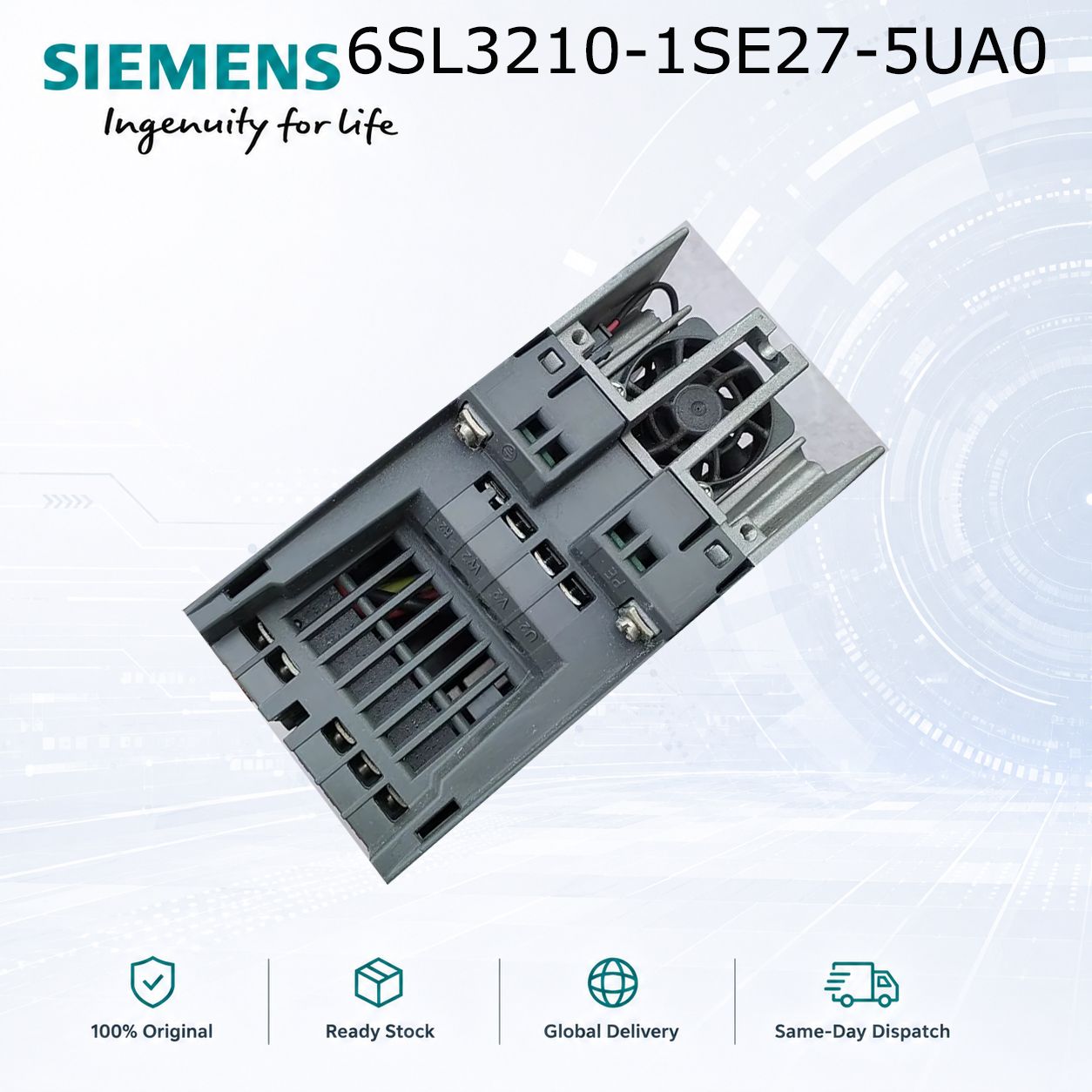

The Siemens 6SL3210-1SE27-5UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 30kW of output power at 75A, representing the maximum power rating in the Framesize D (FSD) category .

This module is designed for heavy industrial applications requiring significant power output. It represents the upper limit of the 100mm FSD format before transitioning to the larger FSE/FSEF frame sizes.

Technical Specifications

• Model Number: 6SL3210-1SE27-5UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 30.0 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 75.0 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize D (FSD) - 100mm width (maximum rating)

• Integrated Safety: Safe Torque Off (STO)

• Braking Chopper: Built-in

• Cooling Type: Forced-air cooling (internal fan)

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Dimensions: 100mm width × 355mm height × 275mm depth

• Weight: Approx. 20.0 kg

What‘s Included

• 6SL3210-1SE27-5UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 3.0A minimum

• Control unit: CU310-2 or CU320-2

Typical Applications for 6SL3210-1SE27-5UA0

This 30kW module is ideal for:

• Heavy-duty conveyor systems

• Large industrial mixers and agitators

• Extruders and injection molding machines

• Large palletizers and stackers

• Fan and pump drives up to 30kW

• Compressors and blowers

• Hoists and cranes

• Test stands

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the rated output of 6SL3210-1SE27-5UA0?
A: The module provides 30kW output power at 75A current rating.

Q: What is the frame size?
A: This is the maximum power rating for Framesize D (FSD) with 100mm width.

Q: What cooling method does this module use?
A: Forced-air cooling with an internal fan.
