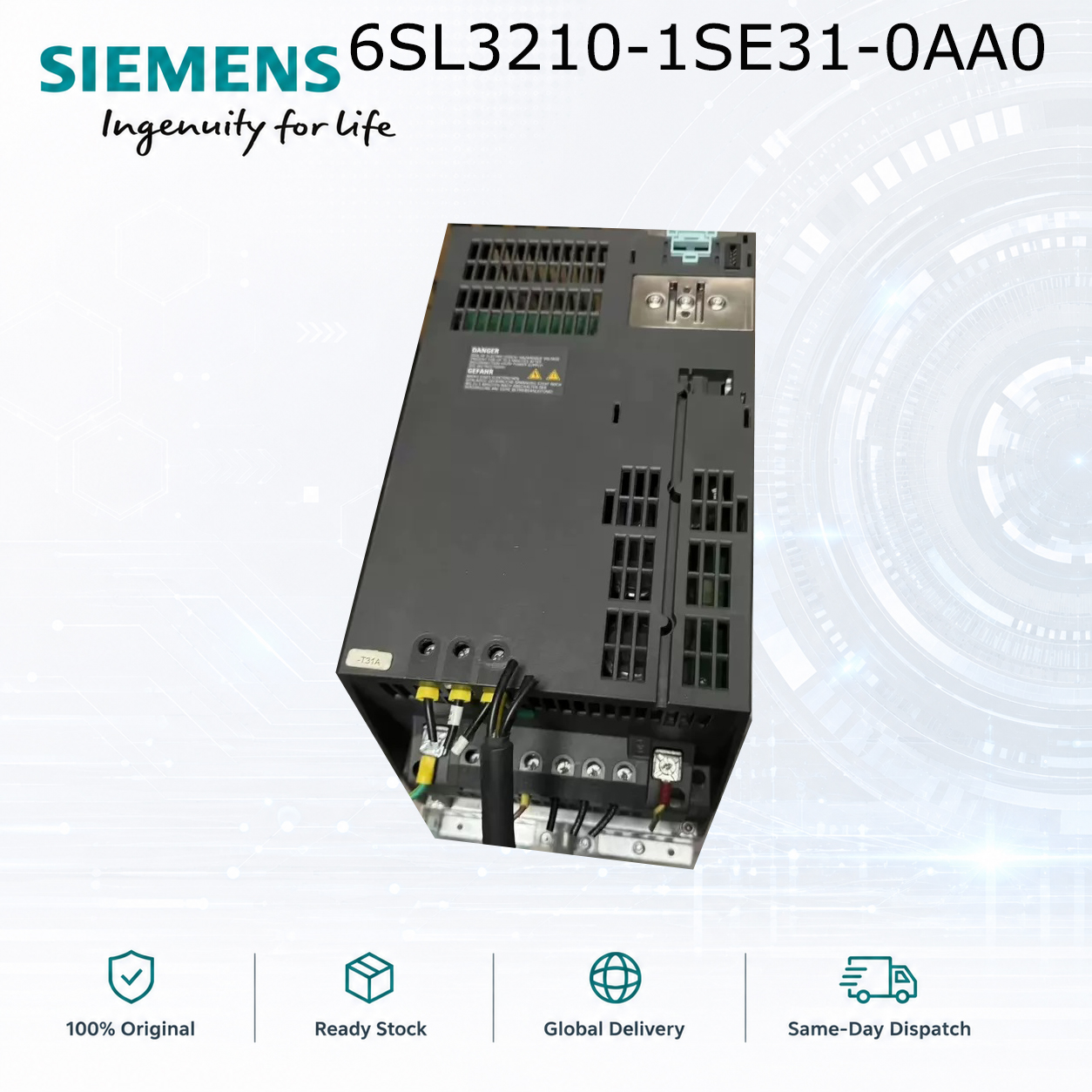

Siemens 6SL3210-1SE31-0AA0 | S120 PM340 45kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE31-0AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 45kW of output power at 90A. This AA0 version features an integrated line filter for enhanced EMC performance .

Technical Specifications

• Model Number: 6SL3210-1SE31-0AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 45 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Input Current: 105 A

• Rated Output Current: 90 A

• Frame Size: Framesize E (FSE) / Blocksize

• Special Feature: Integrated line filter

• Cooling: Internal air cooling

• Protection Class: IP20

• Net Weight: 5.44 kg (12.00 lbs)

• Storage Temperature: -40°C to 70°C

• Operating Temperature: 0°C to +40°C

• Construction: Blocksize Frame

• Product Lifecycle: PM410 - Discontinued (as of 2019.10.01)

Key Feature - Integrated Line Filter
This AA0 version includes a built-in line filter that aids in reducing electrical noise and enhancing operational stability. PM340 Power Modules of Category C3 with integrated line filters meet EMC limit values for Category C3 and can be used in industrial environments .

Product Lifecycle Notice
⚠️ This product has been discontinued by Siemens (effective October 1, 2019) and is now available as a spare/replacement part only .

Typical Applications
Industrial applications requiring 45kW power with EMC compliance, including heavy-duty conveyor systems, large industrial mixers, extruders, large compressors, high-capacity pump drives, and test stands .

What‘s Included

• 6SL3210-1SE31-0AA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

•
