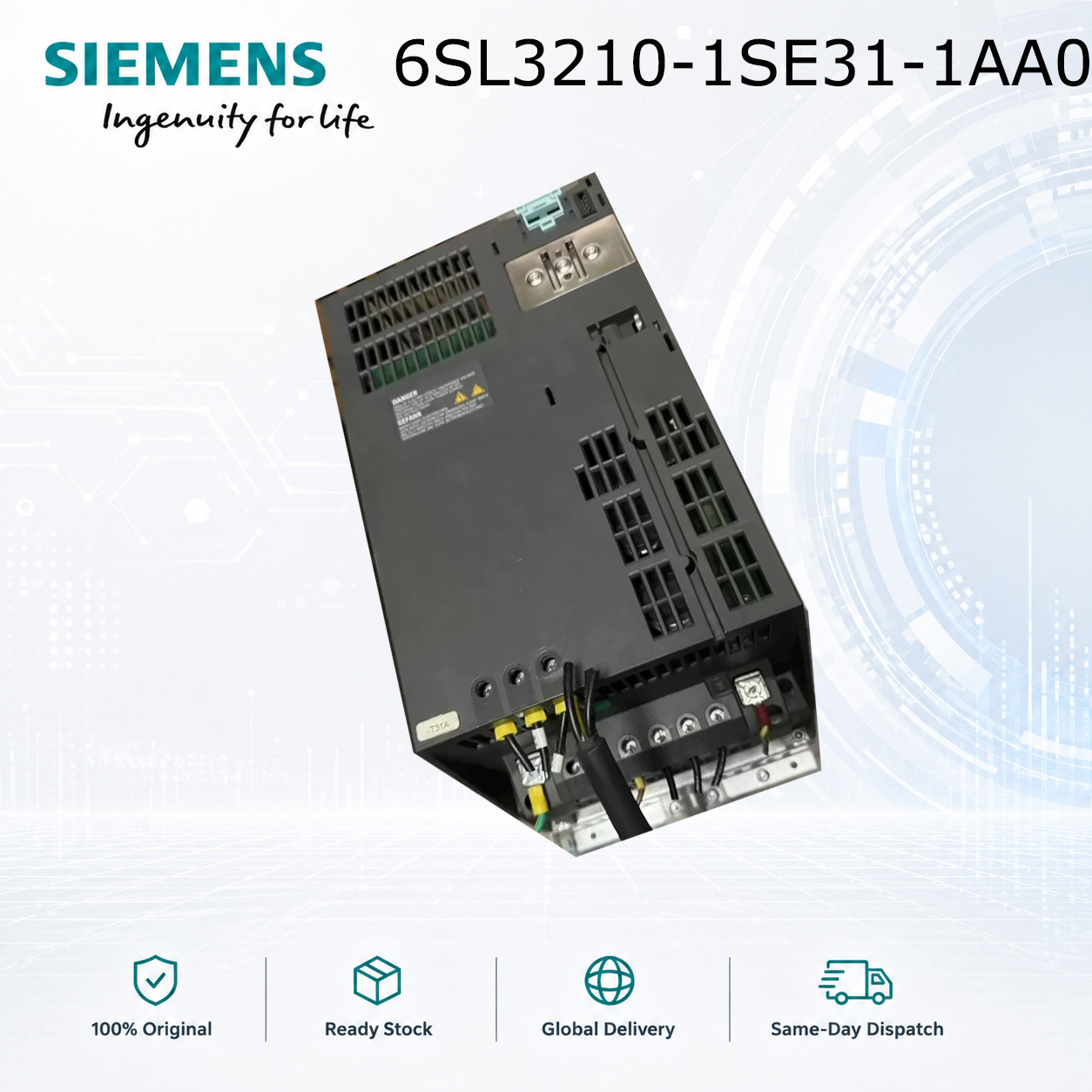

Siemens 6SL3210-1SE31-1AA0 | S120 PM340 55kW Power Module with Filter

Product Overview
The Siemens 6SL3210-1SE31-1AA0 is a single-axis AC/AC converter power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 55kW of output power at 110A. This AA0 version features a built-in line filter for EMC compliance .

Technical Specifications

• Model Number: 6SL3210-1SE31-1AA0

• Product Type: S120 PM340 Power Module

• Rated Power: 55 kW

• Input Voltage: 380-480V 3AC, 50/60Hz

• Rated Output Current: 110 A

• Frame Size: Blocksize Frame

• Special Feature: Built-in line filter

• Cooling: Internal air cooling

• Protection Class: IP20

• Weight: 66.7 kg

• Operating Temperature: 0°C to +40°C

• Product Lifecycle: Discontinued (as of 2019.10.01)

Key Feature - Built-in Line Filter
This AA0 version includes a built-in filter that aids in managing electrical noise, ensuring stable operation over time . The integrated line filter allows the module to meet Category C3 EMC requirements for industrial environments .

Product Lifecycle Notice
⚠️ This product has been discontinued by Siemens (effective October 1, 2019) and is now available as a spare/replacement part only.

Typical Applications
Industrial applications requiring 55kW power with EMC compliance, including heavy-duty industrial machinery, large extruders, injection molding machines, large compressors, and high-power pump drives.

What‘s Included

• 6SL3210-1SE31-1AA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

•
