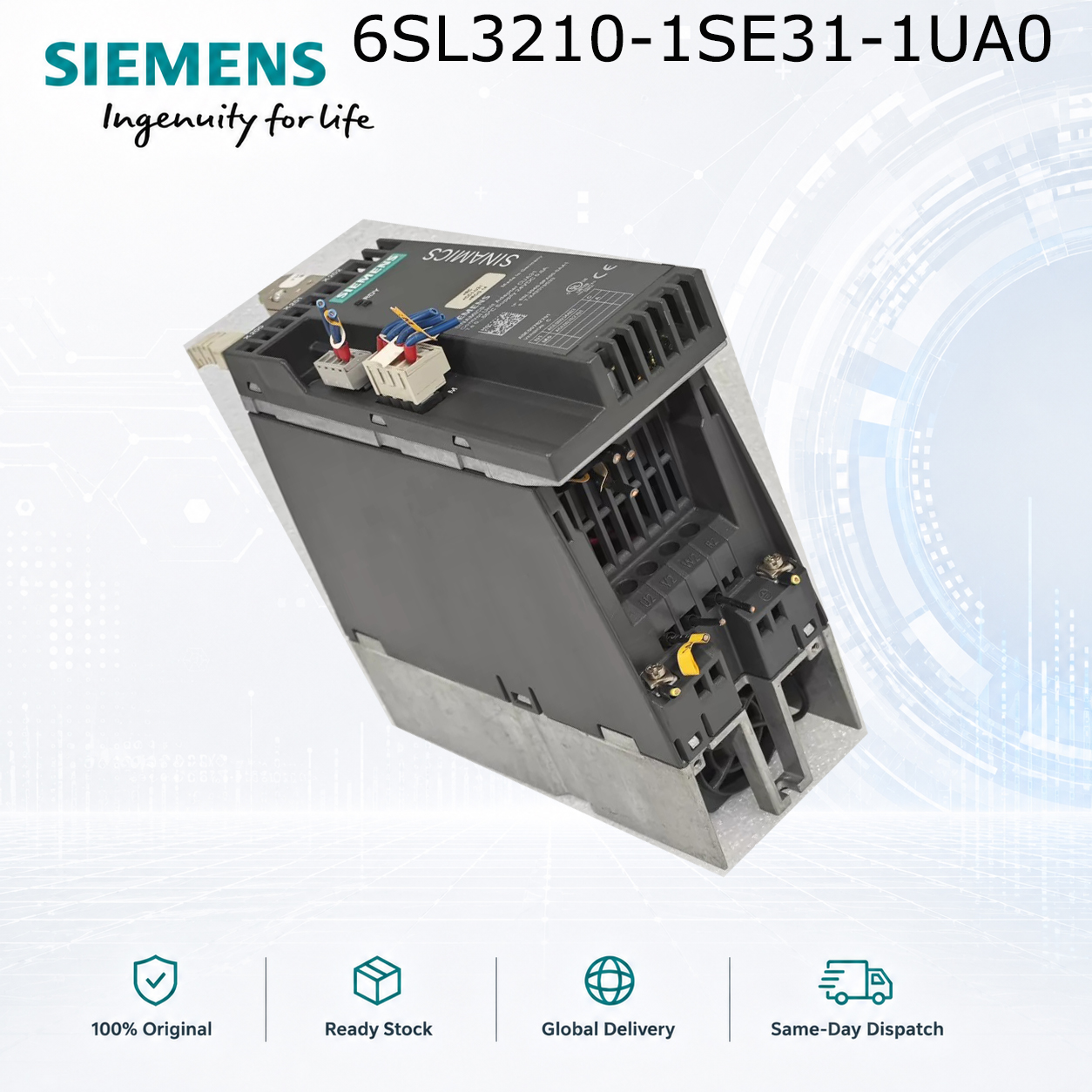

Siemens 6SL3210-1SE31-1UA0 | S120 PM340 45kW Power Module

Product Overview
The Siemens 6SL3210-1SE31-1UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 45kW of output power at 110A, representing a standard offering in the Framesize E (FSE) category .

This module is designed for high-power industrial applications requiring substantial torque and performance. It features a 200mm width and forced-air cooling for demanding continuous duty applications.

Technical Specifications

• Model Number: 6SL3210-1SE31-1UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 45.0 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 110.0 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize E (FSE) - 200mm width

• Integrated Safety: Safe Torque Off (STO)

• Braking Chopper: Built-in

• Cooling Type: Forced-air cooling (internal fan)

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Dimensions: 200mm width × appropriate height and depth

• Weight: Approx. 40.0 kg

What‘s Included

• 6SL3210-1SE31-1UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 3.5A minimum

• Control unit: CU320-2 (recommended)

Typical Applications for 6SL3210-1SE31-1UA0

This 45kW module is ideal for:

• High-power conveyor systems

• Large industrial mixers and agitators

• Extruders and injection molding machines

• Large palletizers and stackers

• Fan and pump drives up to 45kW

• Compressors and blowers

• Hoists and cranes

• Test stands

• Winders and unwinders

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the rated output current of 6SL3210-1SE31-1UA0?
A: The module provides 110.0A output current at 45kW power rating.

Q: What frame size does this module use?
A: Framesize E (FSE) with 200mm width.

Q: What is the approximate weight?
A: Approximately 40.0 kg (88.2 lbs).
