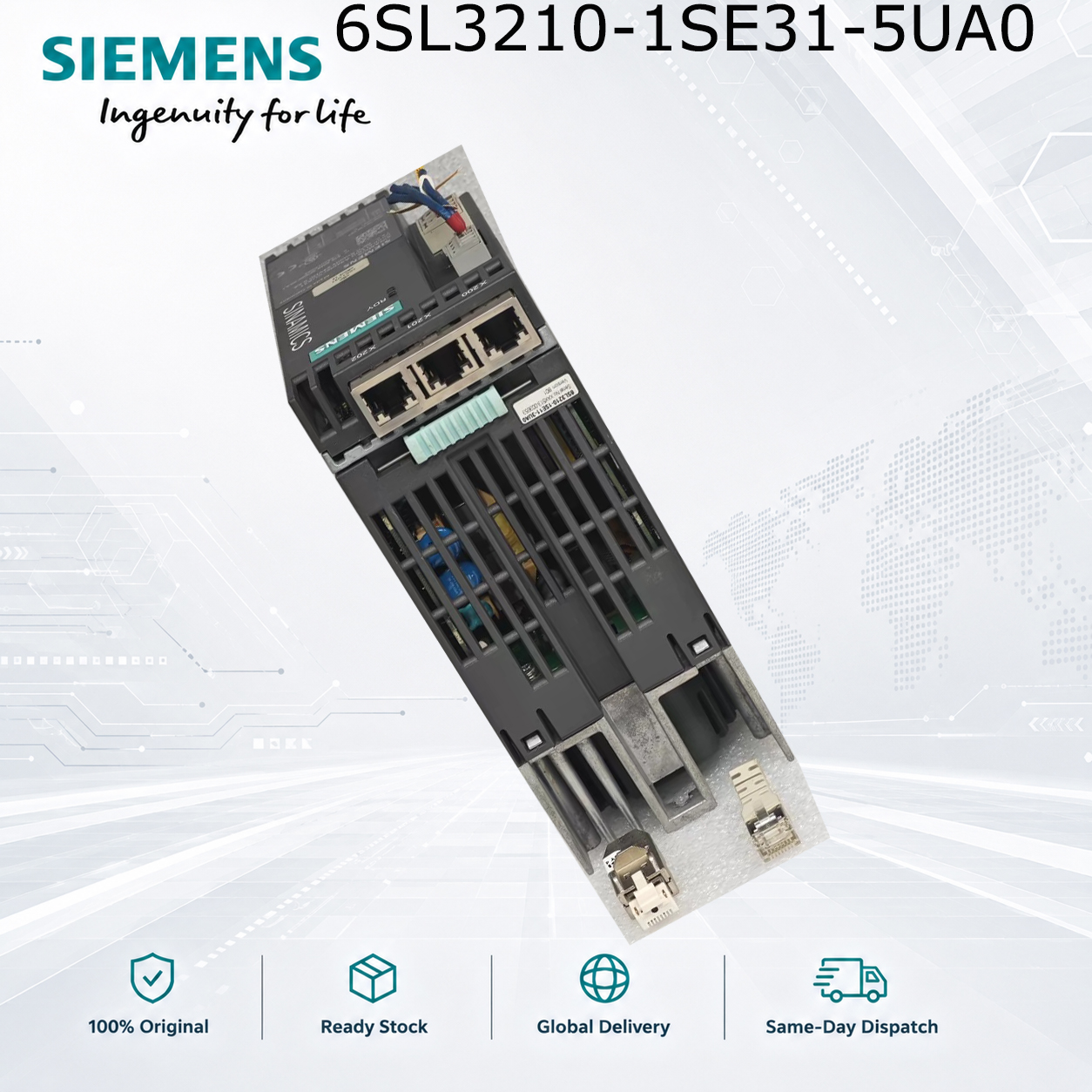

Siemens 6SL3210-1SE31-5UA0 | S120 PM340 55kW Power Module

Product Overview
The Siemens 6SL3210-1SE31-5UA0 is a single-axis AC/AC power module from the SINAMICS S120 drive family. Part of the PM340 Booksize series, this unit delivers 55kW of output power at 145A, representing a high-power offering in the Framesize E (FSE) category .

This module is designed for the most demanding industrial applications requiring high power output. It represents the upper range of the FSE frame size and is built for continuous heavy-duty operation.

Technical Specifications

• Model Number: 6SL3210-1SE31-5UA0

• Product Type: S120 PM340 Power Module (Booksize)

• Rated Power: 55.0 kW

• Input Voltage: 380-480V AC (3-phase)

• Rated Output Current: 145.0 A

• Operating Frequency: 50/60 Hz

• Frame Size: Framesize E (FSE) - 200mm width

• Integrated Safety: Safe Torque Off (STO)

• Braking Chopper: Built-in

• Cooling Type: Forced-air cooling (internal fan)

• Protection Class: IP20

• Operating Temperature: 0°C to +40°C

• Dimensions: 200mm width × appropriate height and depth

• Weight: Approx. 49.0 kg

Product Lifecycle Notice
Please note that Siemens has announced end-of-life for this model (effective October 1, 2019). This product is now available as a spare/replacement part only.

What‘s Included

• 6SL3210-1SE31-5UA0 power module

• DRIVE-CLiQ cable

• Mounting screws and busbar covers

• Quick start guide

What You’ll Need Separately

• Line reactor: Required for this power class

• 24V DC power supply: 4.0A minimum

• Control unit: CU320-2 (required for high-power applications)

Typical Applications for 6SL3210-1SE31-5UA0

This 55kW module is ideal for:

• High-power conveyor systems

• Large industrial mixers and agitators

• Heavy-duty extruders and injection molding machines

• Large palletizers and stackers

• Fan and pump drives up to 55kW

• Large compressors and blowers

• Heavy-duty hoists and cranes

• Test stands and dynamometers

• Winders and unwinders

Comparison with Adjacent Models

Frequently Asked Questions

Q: What is the rated output of 6SL3210-1SE31-5UA0?
A: The module provides 55kW output power at 145A current rating.

Q: Is this product still in production?
A: Siemens has discontinued this model as of October 1, 2019. It is now available only as a spare or replacement part.

Q: What is the frame size and weight?
A: Framesize E (FSE) with 200mm width. Weight is approximately 49.0 kg (108.0 lbs).

Q: Which control unit is required?
A: The CU320-2 control unit is required for this high-power module.
