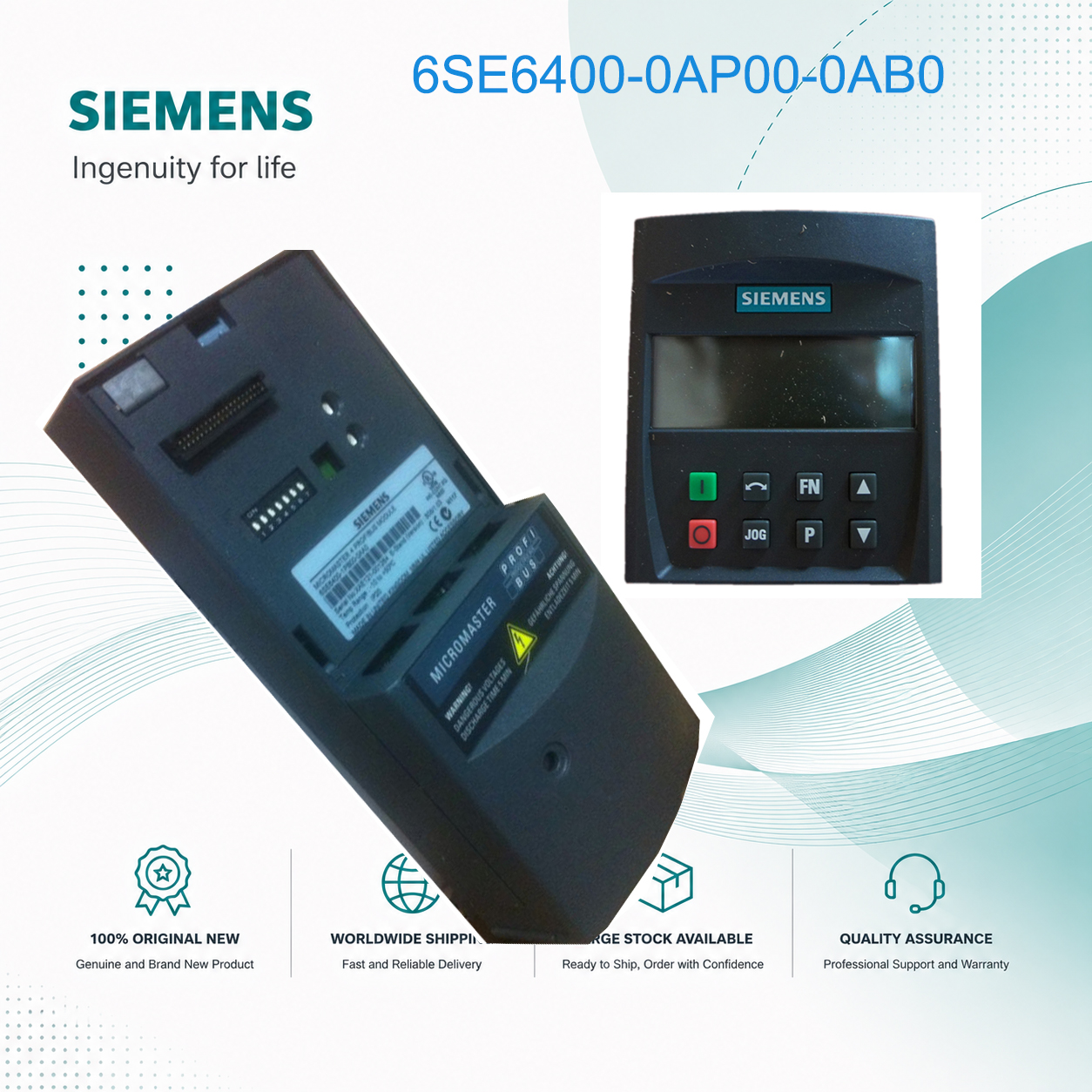

Siemens Asian Advanced Operator Panel AAOP for MICROMASTER 420/440 VFD 6SE6400-0AP00-0AB0

Siemens Asian Advanced Operator Panel AAOP – Bilingual Interface for Asian Markets

The Siemens 6SE6400-0AP00-0AB0 is the Asian Advanced Operator Panel (AAOP) designed specifically for the MICROMASTER 420 and 440 series drives. This panel features a Chinese/English bilingual interface, making it the preferred choice for Chinese-speaking technicians and operators [citation:8].

Key Specifications:
- Product Type: Asian Advanced Operator Panel (AAOP)
- Compatible Series: MICROMASTER 420, 440 [citation:8]
- Display: Multi-line LCD with backlight (5 lines × 16 characters) [citation:8]
- Language Support: Simplified Chinese and English (bilingual) [citation:8]
- Parameter Storage: Supports upload/download of parameter sets
- Keypad: 8 physical keys (Start/Stop/Fwd/Rev/Jog/Menu/Up/Down/Confirm) [citation:8]
- Protection Class: IP20
- Power Supply: Powered directly from inverter (plug-and-play)
- Operating Temperature: -10°C to +50°C [citation:8]
- Storage Temperature: -25°C to +65°C [citation:8]
- Humidity: 10% to 95% RH, non-condensing [citation:8]
- Dimensions: 110mm × 80mm × 40mm [citation:8]
- Weight: 0.3 kg [citation:8]
- Certifications: CE, UL, cUL, C-Tick [citation:8]

Supported Functions:
- Full parameter programming with Chinese menu guidance
- Parameter upload/download for drive cloning
- Real-time monitoring of drive status (frequency, current, voltage)
- Fault and warning diagnosis with Chinese descriptions
- Local control (start, stop, direction, jog)
- Parameter set storage and comparison

Typical Applications:
- Chinese-language industrial environments
- Multi-drive systems requiring identical parameter setups
- OEM equipment with MM420/MM440 drives serving Chinese operators
- Maintenance depots supporting MM4 drives in Asia
- Remote sites where Chinese-speaking technicians perform drive work

Key Features:
- True bilingual interface (Simplified Chinese + English) [citation:8]
- Multi-line backlit LCD shows more information per screen [citation:8]
- Parameter cloning capability eliminates manual programming [citation:8]
- Advanced diagnostic functions with Chinese text descriptions [citation:8]
- Same form factor as standard AOP (drop-in replacement)
- Supports both direct drive mounting and remote cabinet installation

Comparison Table:

| Feature | BOP (0BP00-0AA1) | AOP (0AP00-0AA1) | AAOP (0AP00-0AB0) |
|---------|-------------------|-------------------|--------------------|
| Display | Single line LED | Multi-line LCD | Multi-line LCD |
| Backlight | No | Yes | Yes |
| Language | English | English | Chinese/English [citation:8] |
| Parameter Storage | No | Yes (10 sets) | Yes [citation:8] |
| Fault Text | Codes only | English | Chinese/English |
| MM430 Compatible | Yes | No | No |

Important Notes:
- The "AB0" suffix indicates the Asian version with Chinese language support
- NOT compatible with MICROMASTER 430 series [citation:8]
- This product has been discontinued by Siemens (PM410). Available while stock lasts
- For new designs, consider BOP-2 or SINAMICS G120 series with IOP panels

FAQ:

Q1: What is the difference between AAOP (0AB0) and standard AOP (0AA1)?
A: The AAOP (6SE6400-0AP00-0AB0) is the Asian version featuring a bilingual Simplified Chinese/English interface. The standard AOP (6SE6400-0AP00-0AA1) is English-only [citation:8].

Q2: Can this AAOP work with MM430 series drives?
A: No. Like the standard AOP, the AAOP is only compatible with MICROMASTER 420 and 440 series. For MM430, use the Basic Operator Panel (BOP) [citation:8].

Q3: Can I store parameters from one drive and copy to another?
A: Yes. The AAOP supports parameter upload from a source drive and download to target drives, making mass configuration of multiple MM4 drives very efficient [citation:8].

Q4: Does the AAOP require external power?
A: No. The AAOP is powered directly from the drive when plugged into the control module interface – truly plug-and-play [citation:8].

Q5: Can I mount the AAOP remotely on a control cabinet door?
A: Yes. Siemens offers remote mounting accessories (cable and mounting frame) that allow the AAOP to be installed on a cabinet door for operator access.
