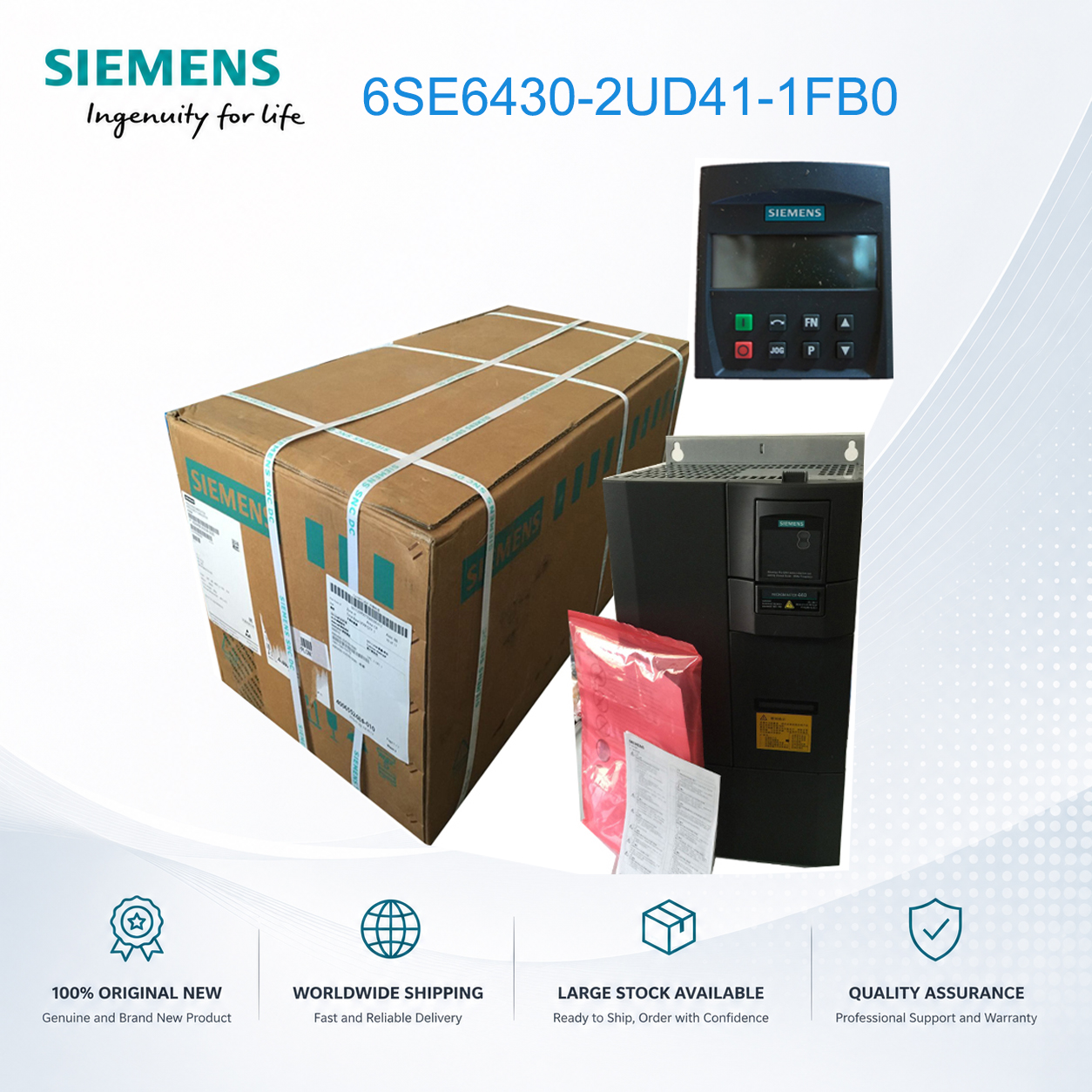

Siemens MICROMASTER 430 VFD 110kW 380-480V 3-Phase Pump Fan Drive 6SE6430-2UD41-1FB0

Siemens MICROMASTER 430 VFD 110kW – FX-Size High-Power Drive for Large Industrial Systems

The Siemens MICROMASTER 430, model 6SE6430-2UD41-1FB0, delivers 110kW output power with 380-480V 3-phase input. This unfiltered variable torque drive is designed for large-scale industrial pump and fan applications requiring high power output and continuous operation. This model represents the entry point to the FX-size chassis [13†L6-L8].

Key Specifications:
- Output Power: 110 kW (variable torque / square-law torque)
- Input Voltage: 380-480V AC 3-phase, +10/-10%, 47-63Hz
- Input Current: 200 A
- Rated Output Current: 205 A
- Output Frequency: 0-600Hz
- Overload Capacity: 110% for 59s, 150% for 1s
- Protection Class: IP20
- Operating Temperature: -10°C to +50°C
- Dimensions (H×W×D): 1400mm × 326mm × 356mm
- Weight: Approx. 116 kg
- Filter: Without built-in filter
- Frame Size: FX

Typical Applications:
- Large industrial process pumps (110kW / 150 HP)
- High-capacity industrial fans
- Large HVAC central plant chillers
- Large cooling tower installations
- Municipal water/wastewater pump stations
- Industrial ventilation systems for large facilities

Key Features:
- Built-in PID controller for closed-loop regulation
- Linear V/f control with Flux Current Control (FCC)
- 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs
- 15 fixed frequencies, 4 skip frequencies
- BiCo technology for flexible I/O configuration
- Integrated RS-485 Modbus RTU interface
- Optional PROFIBUS-DP communication module
- Flying restart for spinning motor capture
- DC injection braking and compound braking
- Overload protection: 150% for 60 seconds [13†L12]

Pump & Fan Special Features:
- Multi-pump switching (staging up to 3 additional pumps)
- Bypass logic with automatic transfer
- Manual/Auto mode with switchover
- Dry well detection / belt break detection
- Energy saving mode with consumption monitoring
- Sleep mode for idle operation

FX-Size Chassis Information:
The FX-size chassis (1400×326×356mm) is designed for high-power applications in the 110kW-160kW range. The larger enclosure provides superior thermal dissipation and higher current capacity for continuous heavy-duty operation.

Why Choose the 110kW Model?
The 110kW model is the entry point to the FX-size chassis, offering the highest power density in the MM430 series. For applications that have outgrown the 90kW F-size model, this drive provides a natural upgrade path.

Important Notes:
- This product is discontinued. Available ONLY as a spare part
- A BOP or AOP is required for parameter changes beyond factory defaults
- SINAMICS G120 series is the recommended successor for new installations

FAQ:

Q1: What is the output frequency range for this FX-size model?
A: For power ratings 110kW and above, the output frequency range is 0-267Hz (compared to 0-650Hz for lower power models) [8†L17-L18].

Q2: Does this drive include a built-in EMC filter?
A: No. This is the unfiltered version (FB0 suffix). For applications requiring EMC compliance, external filters are available as accessories.

Q3: What is the input current requirement?
A: The input current is approximately 200A at full load [13†L8]. Ensure your supply circuit can handle this current with appropriate branch circuit protection.

Q4: Can this drive be used for multi-pump control?
A: Yes. MM430 includes built-in multi-pump staging logic. Using the relay outputs, it can sequence additional pumps (up to 3 total including the drive-controlled pump).

Q5: What is the typical efficiency of this drive?
A: For 110kW-250kW models, efficiency is 97%-98% [8†L19].
