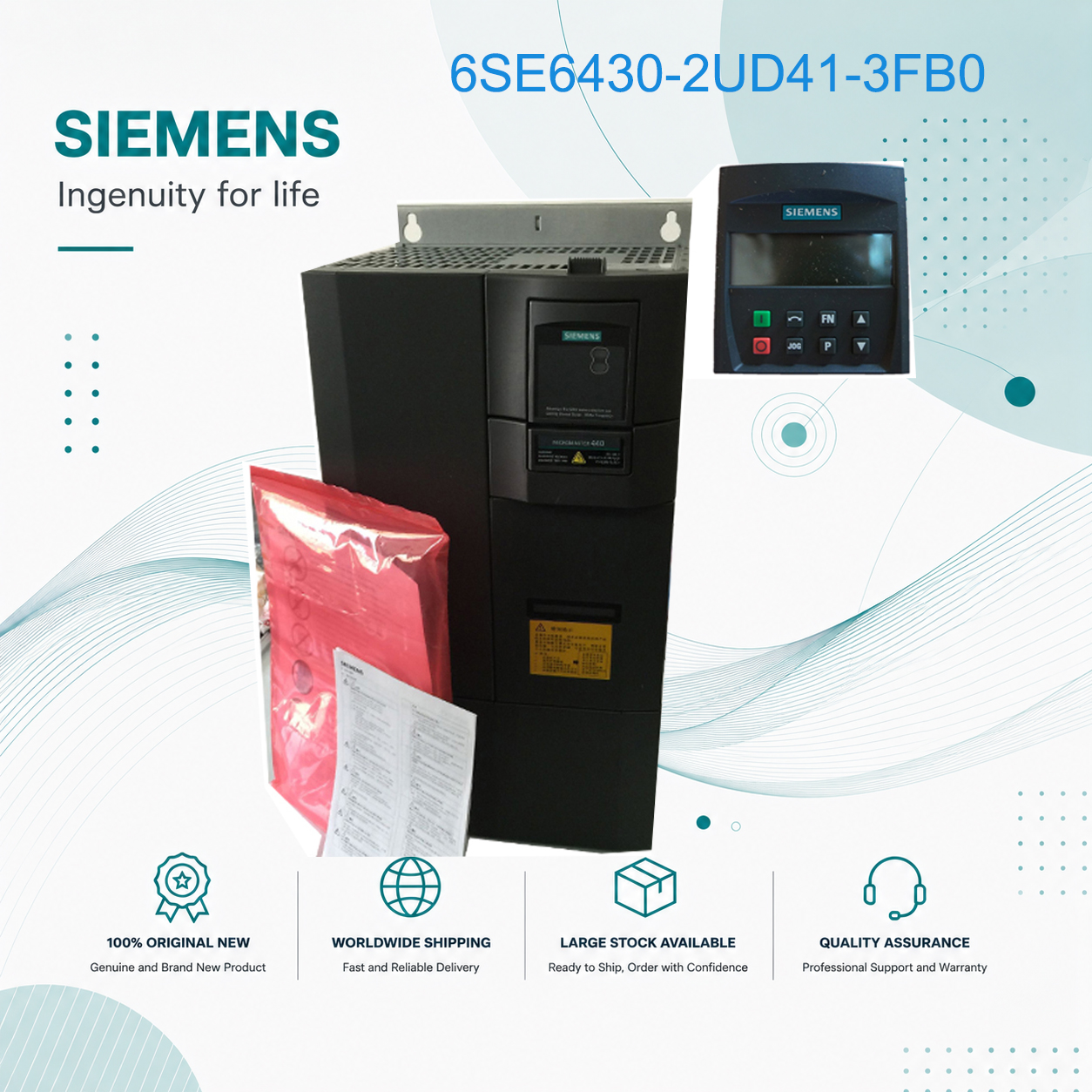

Siemens MICROMASTER 430 VFD 132kW 380-480V 3-Phase Pump Fan Drive 6SE6430-2UD41-3FB0

Siemens MICROMASTER 430 VFD 132kW – FX-Size High-Capacity Drive for Large Industrial Systems

The Siemens MICROMASTER 430, model 6SE6430-2UD41-3FB0, delivers 132kW output power with 380-480V 3-phase input. This unfiltered variable torque drive is engineered for high-capacity pump and fan applications requiring continuous operation in demanding industrial environments [14†L8-L9].

Key Specifications:
- Output Power: 132 kW (variable torque / square-law torque)
- Input Voltage: 380-480V AC 3-phase, +10/-10%, 47-63Hz
- Rated Output Current: 250 A
- Output Frequency: 0-267Hz (for 110kW-250kW range)
- Overload Capacity: 110% for 59s, 150% for 1s
- Protection Class: IP20
- Operating Temperature: 0°C to +40°C
- Dimensions (H×W×D): 1400mm × 326mm × 356mm
- Weight: Approx. 116 kg
- Filter: Without built-in filter
- Frame Size: FX

Typical Applications:
- Large industrial process pumps (132kW / 180 HP)
- High-capacity industrial fans
- Large HVAC central plant systems
- Large cooling tower installations
- Municipal water/wastewater pump stations
- Industrial ventilation systems for large facilities

Key Features:
- Built-in PID controller for closed-loop regulation
- Linear V/f control with Flux Current Control (FCC)
- 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs
- 15 fixed frequencies, 4 skip frequencies
- BiCo technology for flexible I/O configuration
- Integrated RS-485 Modbus RTU interface
- Optional PROFIBUS-DP communication module
- Flying restart for spinning motor capture
- DC injection braking and compound braking
- Protection functions: overvoltage, undervoltage, overload, short circuit, ground fault, motor stall prevention, motor lock, motor overtemperature, drive overtemperature [5†L8-L9]

Pump & Fan Special Features:
- Multi-pump switching (staging up to 3 additional pumps)
- Bypass logic with automatic transfer
- Manual/Auto mode with switchover
- Dry well detection / belt break detection
- Energy saving mode with consumption monitoring
- Sleep mode for idle operation

FX-Size Chassis Information:
The FX-size chassis (1400×326×356mm) is designed for high-power applications in the 110kW-132kW range. The 132kW model represents the mid-range option within the FX-size family.

Selection Guide:
The 132kW model is the step up from the 110kW model within the same FX-size chassis. For power requirements above 132kW (up to 160kW), transition to the G-size chassis models.

Important Notes:
- This product is discontinued. Available ONLY as a spare part
- A BOP or AOP is required for parameter changes beyond factory defaults
- SINAMICS G120 series is the recommended successor for new designs

FAQ:

Q1: What is the output frequency range for this model?
A: For power ratings 110kW and above, the output frequency range is 0-267Hz (compared to 0-650Hz for lower power models) [8†L17-L18].

Q2: What is the ambient temperature range?
A: The operating ambient temperature range is 0°C to +40°C [14†L9]. For environments below 0°C, allow longer warm-up time before applying full load.

Q3: Does this drive include an operator panel?
A: No. This model ships without AOP/BOP. An operator panel is required for parameter changes beyond factory defaults [14†L9].

Q4: What is the typical efficiency of this drive?
A: For 110kW-250kW models, efficiency is 97%-98% [8†L19].

Q5: What protection features are included?
A: Comprehensive protection includes overvoltage, undervoltage, overload, short circuit, ground fault, motor stall prevention, motor lock, motor overtemperature, and drive overtemperature [5†L8-L9].

📦 Spare Part – Limited Stock | Tech Support | Confirm availability before ordering
Contact us for pricing and availability.
