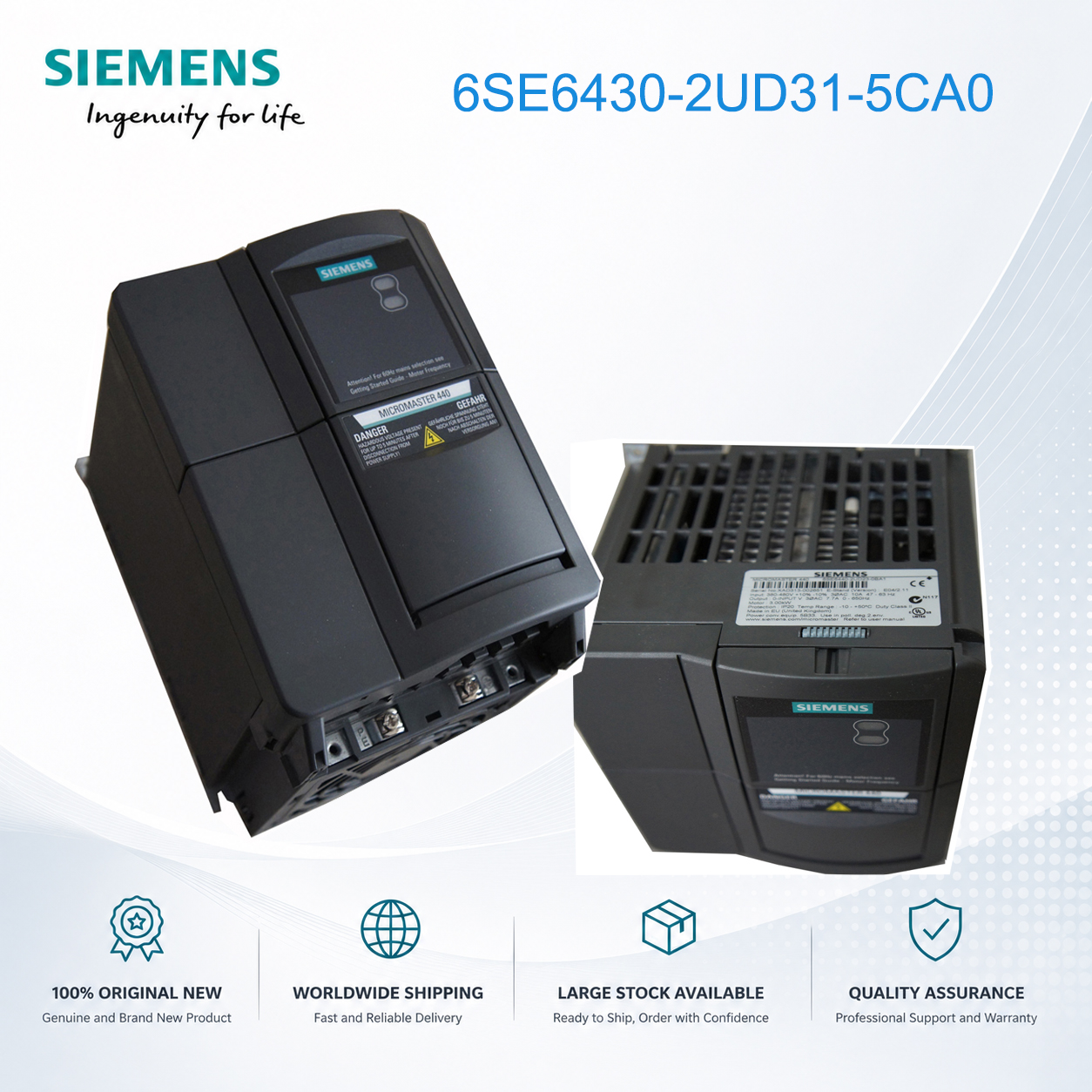

Siemens MICROMASTER 430 VFD 15kW 380-480V 3-Phase Pump Fan Drive 6SE6430-2UD31-5CA0

Siemens MICROMASTER 430 VFD 15kW – High-Efficiency Drive for Pump and Fan Applications

The Siemens MICROMASTER 430, model 6SE6430-2UD31-5CA0, delivers 15kW output power with 380-480V 3-phase input. This unfiltered variable torque drive is designed for medium-to-large pump and fan applications where energy efficiency and operational flexibility are paramount. The MM430 series features specialized software functions for pump/fan applications, including energy consumption monitoring and optimized energy saving mode.

Key Specifications:
- Output Power: 15 kW (variable torque / square-law torque)
- Input Voltage: 380-480V AC 3-phase, 47-63Hz
- Rated Output Current: 32A
- Output Frequency: 0-600Hz
- Overload Capacity: 110% for 60s, 140% for 3s
- Protection Class: IP20
- Operating Temperature: -10°C to +50°C
- Dimensions (HxWxD): 245mm × 185mm × 195mm
- Weight: Approx. 5.7kg
- Filter: Without built-in filter

Typical Applications:
- Large centrifugal pumps
- Industrial fan arrays
- HVAC central air handling systems
- Cooling tower fan control
- Wastewater treatment pumps
- Irrigation systems

Key Features:
- Built-in PID controller with sleep mode
- Linear V/f control with FCC (Flux Current Control)
- 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs
- 15 fixed frequencies, 4 skip frequencies
- BiCo technology for flexible I/O configuration
- Integrated RS-485 Modbus RTU interface
- Optional PROFIBUS-DP communication module
- Flying restart for spinning motor capture
- DC injection braking

Pump & Fan Special Features (Built-in):
- Multi-pump switching (staging)
- Bypass logic with automatic transfer
- Manual/Auto mode with switchover
- Dry well detection / belt break detection
- Energy saving mode with consumption monitoring
- Sleep mode for idle operation

Why Choose MM430 for Pump/Fan Applications?
The MICROMASTER 430 series is purpose-built for variable torque loads. The square-law torque characteristic perfectly matches the load profile of centrifugal pumps and fans, where torque increases with the square of speed and power increases with the cube of speed. This results in significant energy savings compared to constant torque drives or mechanical throttling methods. In typical applications, energy savings of 20-50% can be achieved when replacing fixed-speed operation with VFD control.

Selection Guide:
The 15kW model is the highest power option in the compact C-size chassis (245×185×195mm). If your application requires higher power, step up to the D-size chassis models (18.5kW-30kW) or E-size (37kW-45kW). All C-size models share identical mounting dimensions, allowing easy power upgrades without cabinet modifications.

Important Notes:
- This product is discontinued. Available ONLY as a spare part
- A BOP (6SE6400-0BP00-0AA1) or AOP (6SE6400-0AP00-0AA1) is required for parameter changes
- SINAMICS G120 series is the recommended successor for new installations

FAQ:

Q1: Why is MM430 specifically designed for pumps and fans?
A: Pumps and fans have a square-law torque characteristic – torque increases with speed squared. MM430 is optimized for this load profile with specialized software functions including multi-pump control, dry run detection, energy saving mode, and bypass logic. These features are not typically available in general-purpose drives.

Q2: What is the difference between square-law torque and constant torque?
A: Square-law torque (pumps, fans): torque ∝ speed², power ∝ speed³. This means significant energy savings at reduced speeds. Constant torque (conveyors, compressors): torque is constant regardless of speed. The MM430 is specifically calibrated for square-law torque applications.

Q3: How much energy can I save with this drive?
A: For pump and fan applications, reducing speed by 20% typically reduces power consumption by approximately 50% due to the affinity laws. Most industrial pump and fan applications achieve payback periods of 6-18 months when retrofitting from fixed-speed to VFD control.

Q4: Can this drive control multiple pumps simultaneously?
A: Yes. MM430 includes built-in multi-pump switching logic. Using the three relay outputs, it can sequence additional pumps in lead/lag arrangement, automatically starting and stopping pumps based on system demand.

Q5: Is this drive suitable for OEM applications?
A: For OEMs, MM430 was a popular choice for pump and fan equipment manufacturers. However, since this series is discontinued, Siemens recommends SINAMICS G120 for new OEM designs. This 15kW model is available only as a spare part for existing installations.
