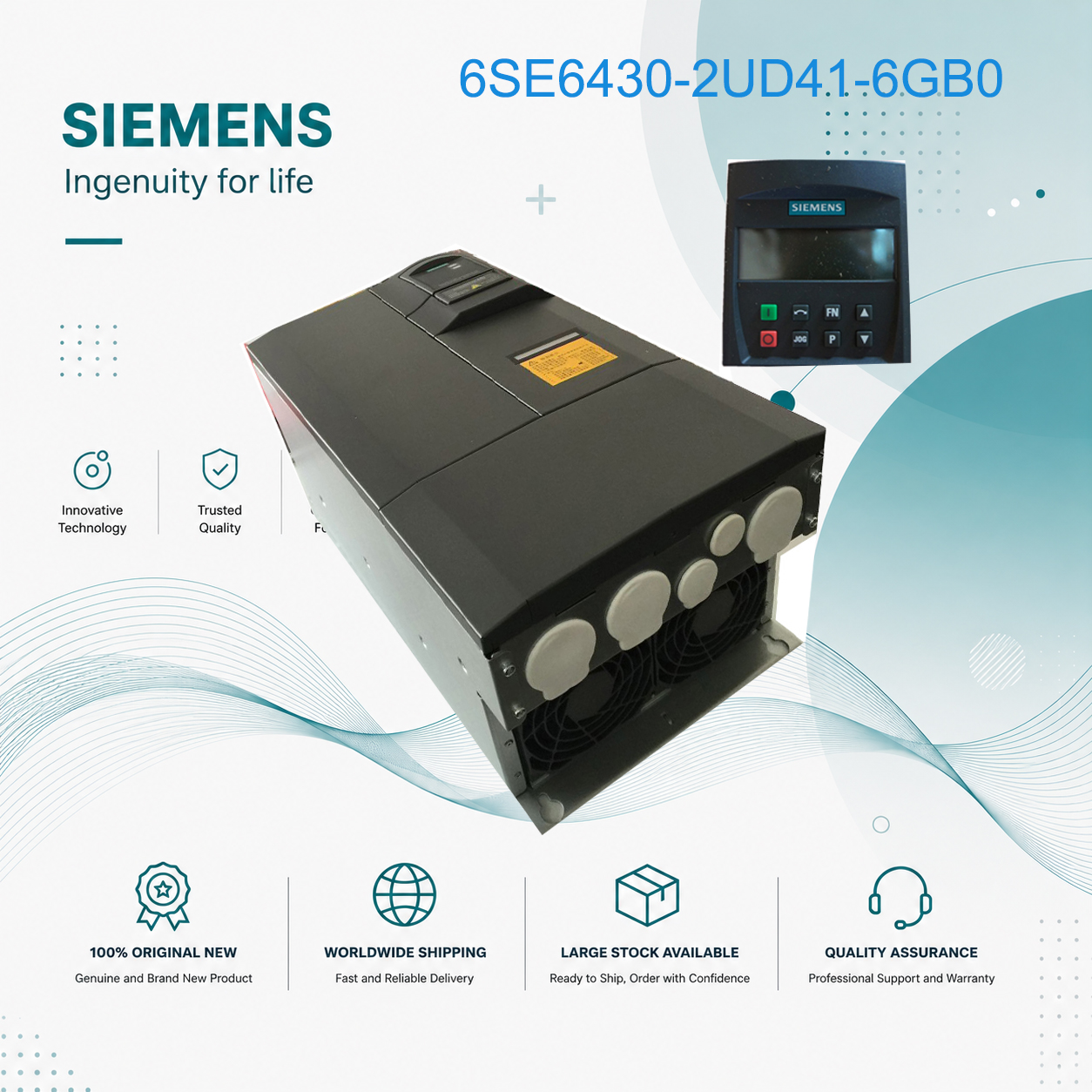

Siemens MICROMASTER 430 VFD 160kW 380-480V 3-Phase Pump Fan Drive 6SE6430-2UD41-6GB0

Siemens MICROMASTER 430 VFD 160kW – G-Size High-Power Drive for Large Industrial Systems

The Siemens MICROMASTER 430, model 6SE6430-2UD41-6GB0, delivers 160kW output power with 380-480V 3-phase input. This unfiltered variable torque drive is designed for high-power pump and fan applications requiring continuous operation in demanding industrial environments. This model represents the entry point to the G-size chassis [15†L8-L9].

Key Specifications:
- Output Power: 160 kW (variable torque / square-law torque)
- Input Voltage: 380-480V AC 3-phase, +10/-10%, 47-63Hz
- Rated Output Current: 310 A
- Output Frequency: 0-267Hz (for 110kW-250kW range)
- Overload Capacity: 110% for 59s, 150% for 1s
- Protection Class: IP20
- Operating Temperature: 0°C to +40°C
- Dimensions (H×W×D): 1533mm × 326mm × 545mm
- Weight: Approx. 150 kg
- Filter: Without built-in filter
- Frame Size: G

Typical Applications:
- Large industrial process pumps (160kW / 215 HP)
- Very high-capacity industrial fans
- Large HVAC central plant chillers
- Large cooling tower installations
- Municipal water/wastewater pump stations
- Industrial ventilation systems for large facilities

Key Features:
- Built-in PID controller for closed-loop regulation
- Linear V/f control with Flux Current Control (FCC)
- 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs
- 15 fixed frequencies, 4 skip frequencies
- BiCo technology for flexible I/O configuration
- Integrated RS-485 Modbus RTU interface
- Optional PROFIBUS-DP communication module
- Flying restart for spinning motor capture
- DC injection braking and compound braking

Pump & Fan Special Features:
- Multi-pump switching (staging up to 3 additional pumps)
- Bypass logic with automatic transfer
- Manual/Auto mode with switchover
- Dry well detection / belt break detection
- Energy saving mode with consumption monitoring
- Sleep mode for idle operation

G-Size Chassis Information:
The G-size chassis (1533×326×545mm) is the largest chassis in the MM430 series, covering power ratings 160kW-250kW. The larger enclosure provides enhanced thermal management for the highest power applications.

Selection Guide:
The 160kW model is the entry point to the G-size chassis. Choose 160kW when your pump or fan motor is rated 160kW or when the 132kW FX-size model is insufficient. For higher power, consider the 200kW or 250kW models within the same G-size family.

Important Notes:
- This product is discontinued. Available ONLY as a spare part
- A BOP or AOP is required for parameter changes beyond factory defaults
- SINAMICS G120 series is the recommended successor for new designs

FAQ:

Q1: What is the output frequency range for this model?
A: For power ratings 110kW and above, the output frequency range is 0-267Hz [8†L17-L18].

Q2: What is the typical efficiency of this drive?
A: For 110kW-250kW models, efficiency is 97%-98% [8†L19].

Q3: What physical clearance is required for installation?
A: The G-size chassis (1533mm height) requires significant vertical clearance. Allow 100mm above and below the drive for proper air circulation. Plan cabinet layout carefully.

Q4: Does this drive include a built-in EMC filter?
A: No. This is the unfiltered version (GB0 suffix). For EMC compliance, external filters are available as accessories.

Q5: Can this drive be used for multi-pump control?
A: Yes. MM430 includes built-in multi-pump staging logic. Using the relay outputs, it can sequence additional pumps based on system demand.
