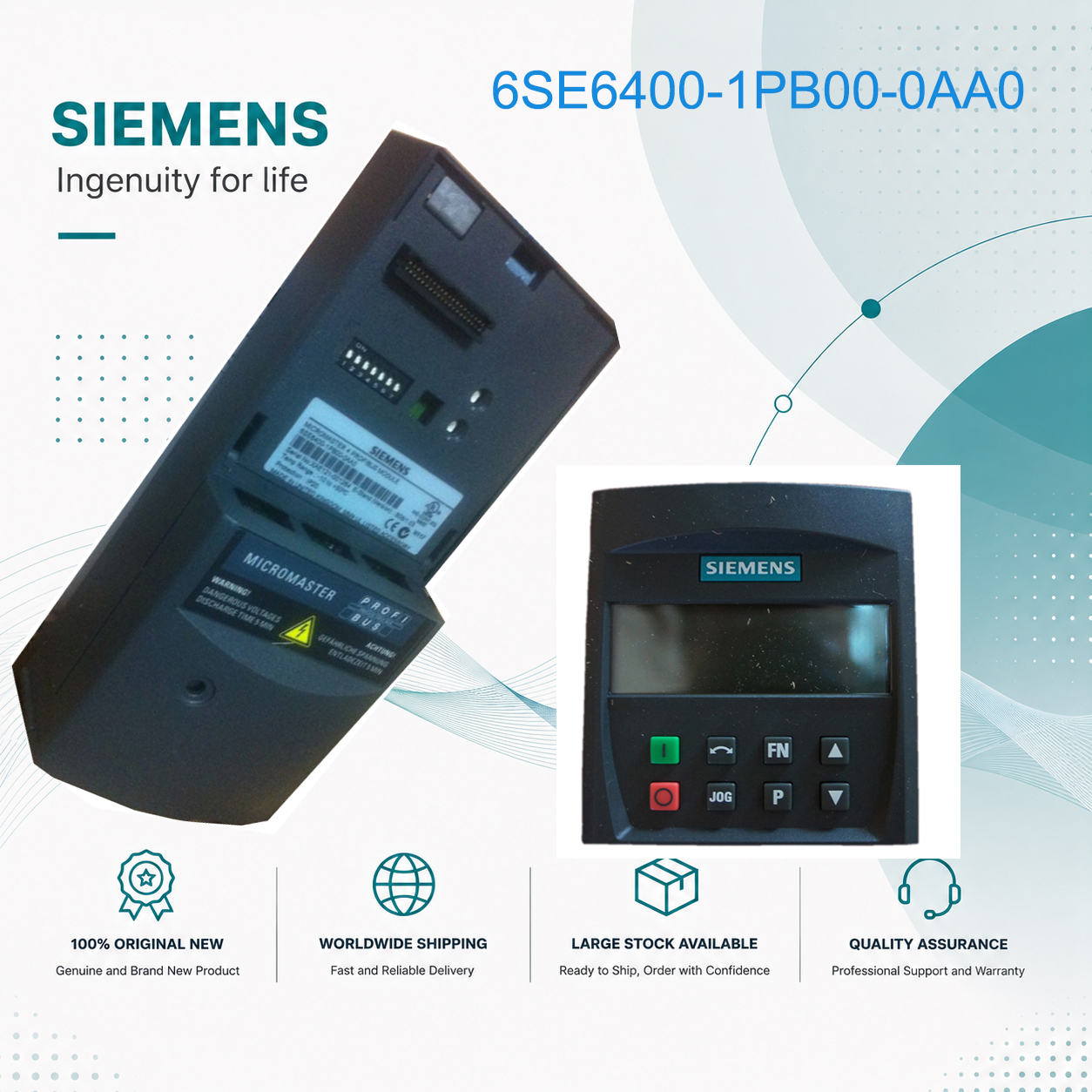

Siemens PROFIBUS DP Module for MICROMASTER 4 Series VFD 6SE6400-1PB00-0AA0

Siemens PROFIBUS DP Module – Industrial Network Connectivity for MM4 Drives

The Siemens 6SE6400-1PB00-0AA0 is a PROFIBUS DP communication module designed for the MICROMASTER 4 (MM4) series drives. This module enables MM420, MM430, and MM440 drives to communicate on a PROFIBUS DP industrial network, providing seamless integration into automated production systems [citation:4].

Key Specifications:
- Product Type: PROFIBUS DP Communication Module
- Compatible Series: MICROMASTER 4 (MM4 FX/GX series) [citation:4]
- Communication Protocol: PROFIBUS DP [citation:4]
- Maximum Data Rate: Up to 12 Mbaud [citation:4]
- Interface: RS-485 PROFIBUS DP port [citation:4]
- Connector Type: 9-pin Sub-D connector [citation:4]
- Power Supply: 24V DC from external source [citation:4]
- Output Voltage: 5V from electrically isolated supply [citation:4]
- Mounting: Fits MICROMASTER enclosure [citation:4]
- Cooling: Natural air convection [citation:4]
- Operating Temperature: -10°C to 50°C [citation:4]
- Storage Temperature: -25°C to 70°C [citation:4]
- Dimensions: 161mm × 73mm × 43.5mm [citation:4]
- Weight: 0.45 kg [citation:4]

Required Accessory:
- PROFIBUS connector 6GK1500-0EA02 required for proper installation and connection [citation:4]

Supported Functions:
- Cyclic data exchange (process data)
- Acyclic parameter access (read/write drive parameters via bus)
- Fault and diagnostic messaging over network
- Remote control (start, stop, speed setpoint)
- Status monitoring (actual speed, current, voltage)
- Multi-drive networking on single PROFIBUS segment

Typical Applications:
- Automated production lines with centralized PLC control
- SCADA systems requiring drive data acquisition
- Multi-drive coordinated motion systems
- Remote monitoring and control installations
- Industrial facilities with PROFIBUS backbone

Key Features:
- High-speed communication up to 12 Mbaud [citation:4]
- Electrically isolated interface for noise immunity [citation:4]
- Standard 9-pin Sub-D connector for easy cabling [citation:4]
- Compact design fits inside MM4 drive enclosure [citation:4]
- GSD file provided for easy integration with any PROFIBUS master
- Supports both cyclic and acyclic communication
- Diagnostic LEDs for network status indication

Network Specifications:
- PROFIBUS DP slave operation only
- Supports up to 244 bytes of I/O data per drive
- Auto-baud detection
- Bus termination can be enabled via connector (6GK1500-0EA02)

Important Notes:
- A Basic Operator Panel (BOP) or Advanced Operator Panel (AOP) is required for initial communication parameter setup (baud rate, slave address, etc.)
- The module requires 24V DC external power (not powered from the drive)
- This product has been discontinued. Check availability before ordering

FAQ:

Q1: Which MM4 drives are compatible with this PROFIBUS module?
A: The 6SE6400-1PB00-0AA0 is compatible with MICROMASTER 420, 430, and 440 series drives (MM4 FX/GX series) [citation:4].

Q2: What PROFIBUS connector is required for installation?
A: Siemens recommends the 6GK1500-0EA02 connector for proper connection and installation [citation:4].

Q3: Do I need an operator panel to set up PROFIBUS communication?
A: Yes. You will need a BOP or AOP to initially configure communication parameters including PROFIBUS slave address, baud rate, and PPO type selection.

Q4: What is the maximum cable length for PROFIBUS with this module?
A: PROFIBUS segment length depends on baud rate. At 12 Mbaud maximum segment length is 100 meters. At lower baud rates (187.5 kbaud) length can extend to 1000 meters.

Q5: Can multiple drives share one PROFIBUS cable?
A: Yes. PROFIBUS is a multi-drop network. Up to 32 devices (masters and slaves) can be connected on a single segment without repeaters.

Q6: Does this module support PROFIBUS PA?
A: No. This module supports PROFIBUS DP (Decentralized Peripherals) only. For PROFIBUS PA applications, a segment coupler would be required.
