Siemens 6FC5410-0AY01-0AA0 | SINUMERIK 810DE CCU1 Control Uni

Product Overview

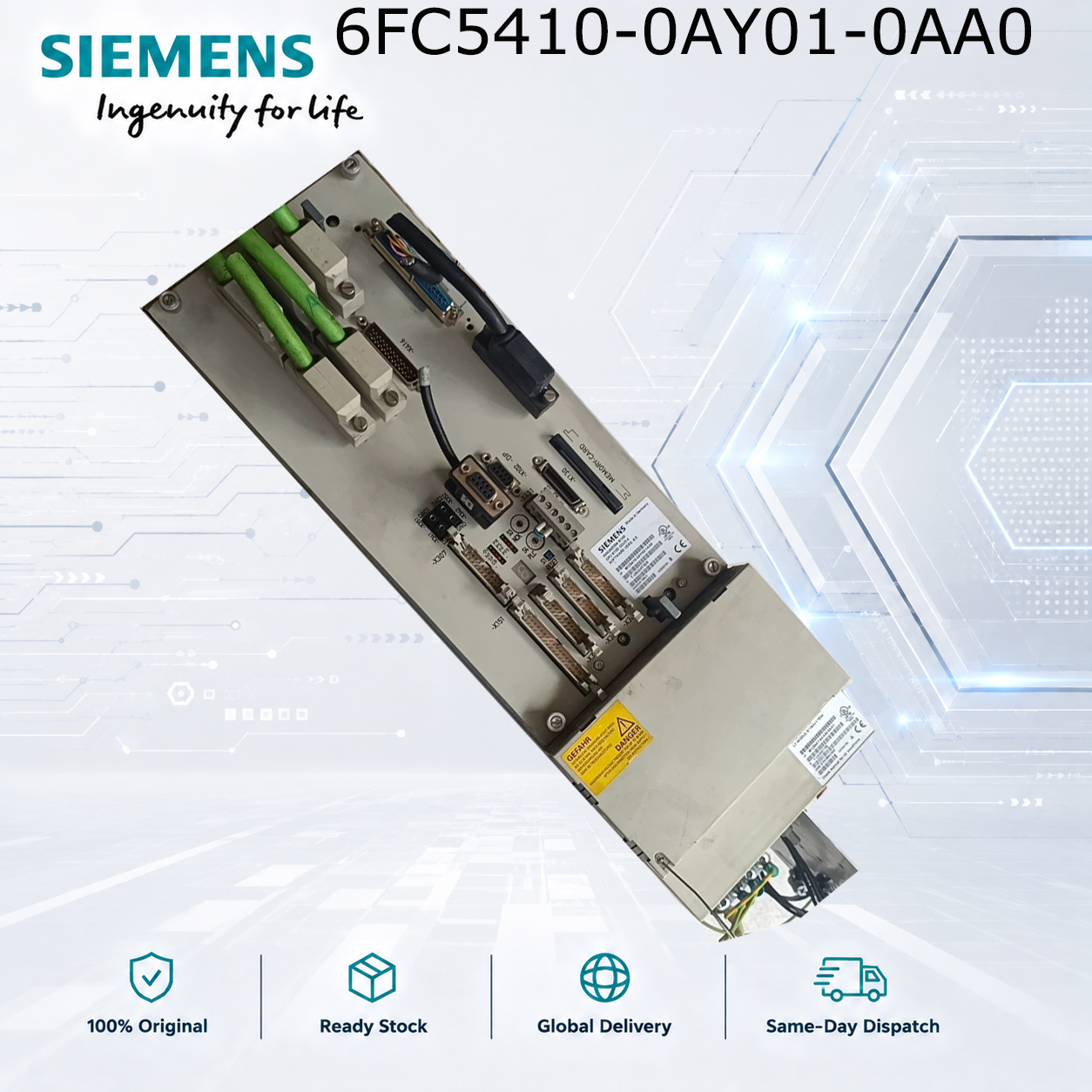

The Siemens 6FC5410-0AY01-0AA0 is a CCU1 (Compact Control Unit) module for the SINUMERIK 810DE CNC system. This export version features system software stored in internal memory rather than on an external PCMCIA card, complying with export control legislation.

Technical Specifications

• Model Number: 6FC5410-0AY01-0AA0

• Product Type: SINUMERIK 810DE CCU1 Control Unit

• Processor Clock Frequency: 100 MHz

• NC Memory: 256 KB (expandable up to 1.5 MB)

• PLC Memory: 64 KB (expandable up to 128 KB)

• Dimensions (W x H x D): 150 mm x 307 mm x 220 mm

• Weight: 1.6 kg

• Power Loss: 25 W (max 40 W)

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -20°C to 60°C

• Transport Temperature: -20°C to 60°C

• Max Temperature Change: 10°C per hour

Key Features

• Export Version: System software stored in internal memory (no external PCMCIA card required)

• Integrated PLC (PLC314) for machine logic control

• Expandable NC memory up to 1.5 MB

• Expandable PLC memory up to 128 KB

• Supports up to 6 axes including spindles

• PROFIBUS-DP communication capability

Typical Applications

• SINUMERIK 810DE controlled CNC machine tools

• Turning machines and milling machines

• Grinding and drilling machines

• Transfer lines and special purpose machines

Product Lifecycle Notice
⚠️ This product is legacy SINUMERIK 810D powerline series. Recommended alternative: SINUMERIK 840D sl or newer platforms.

Software Version Information

• Standard system software version: 1.6

• Software is pre-loaded in internal FEPROM

What‘s Included

• 6FC5410-0AY01-0AA0 CCU1 module

• No external PCMCIA card required (software internal)

•
