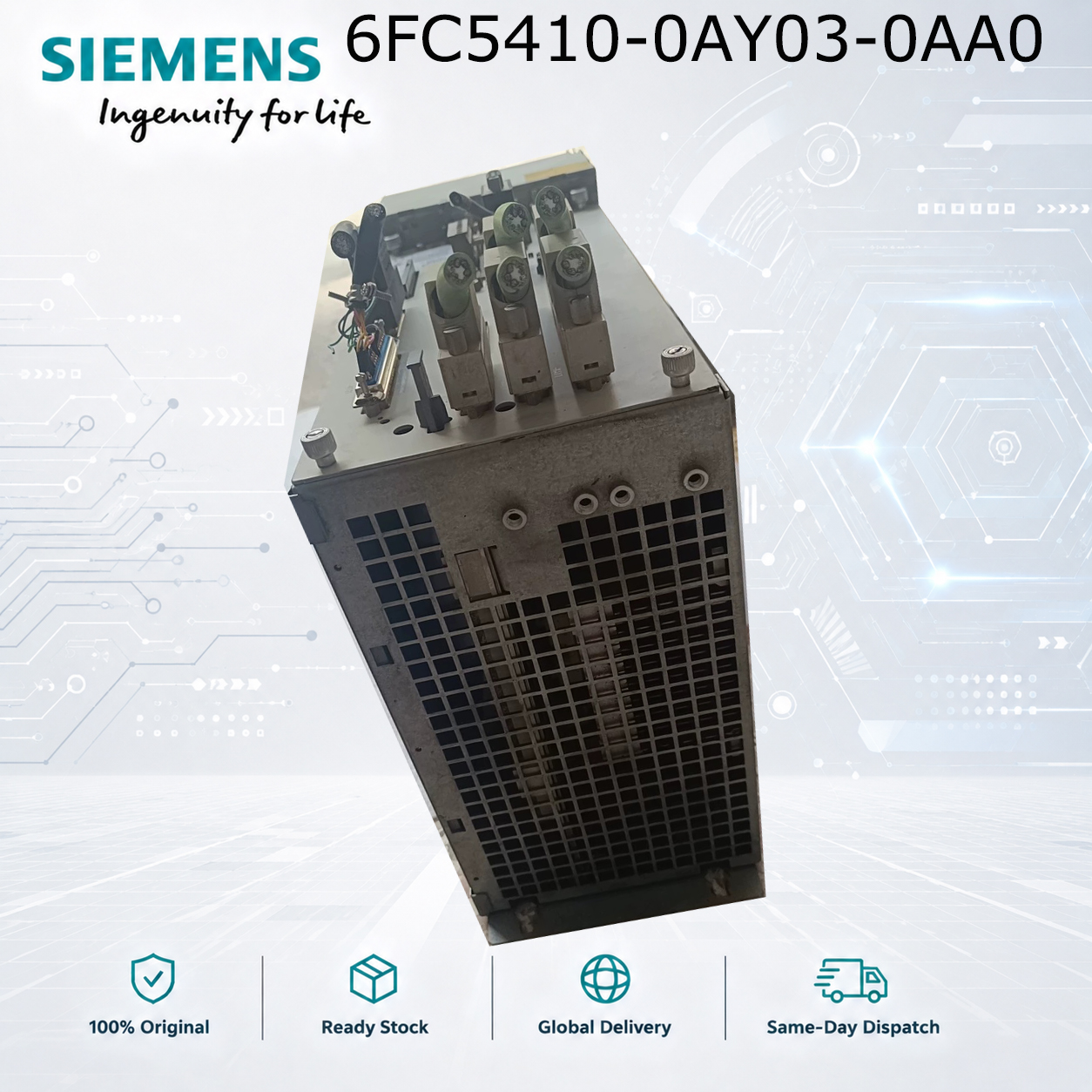

Siemens 6FC5410-0AY03-0AA0 | SINUMERIK 810DE CCU3 Control Unit

Product Overview
The Siemens 6FC5410-0AY03-0AA0 is a CCU3 (Compact Control Unit) module for the SINUMERIK 810DE CNC system. As the highest performance variant in the CCU series, the CCU3 offers maximum processing power and memory capacity, making it suitable for the most demanding CNC applications.

Technical Specifications

• Model Number: 6FC5410-0AY03-0AA0

• Product Type: SINUMERIK 810DE CCU3 Control Unit

• Product Line: SINUMERIK 810D powerline

• NC Memory: 256 KB minimum / 2.5 MB maximum

• PLC Memory: 96 KB minimum / 288 KB maximum

• DRAM: 16 MB

• SRAM: 2.5 MB

• Dimensions (H x W x D): 220 mm x 150 mm x 307 mm

• Weight: 1.6 kg (3.53 lbs) / 3.22 kg with packaging

• Operating Temperature: -40°C to 70°C

• Storage Temperature: -25°C to 55°C

• Humidity Tolerance: 10% to 95% (non-condensing)

• Status Indicators: LED indicators

Key Features

• Second Channel Support: Controls up to 6 axes via second channel

• High Memory Capacity: Up to 2.5 MB NC memory and 288 KB PLC memory

• PROFIBUS-DP Communication: Ensures smooth integration within networked control systems

• Integrated System Software: Complete software package for advanced CNC control

• High-Speed Processing: 16 MB DRAM for complex data processing

• LED Status Indicators: Front panel LEDs for operational monitoring

Product Lifecycle Notice
⚠️ This is the highest performance variant in the SINUMERIK 810D powerline series. Recommended for complex CNC applications requiring maximum processing power.

Typical Applications

• Complex multi-axis CNC machine tools

• Advanced machining centers

• High-performance turning and milling centers

• Special purpose machines requiring maximum axes control

• Transfer lines and flexible manufacturing systems

What‘s Included

• 6FC5410-0AY03-0AA0 CCU3 module

• Integrated system software pre-installed

•
