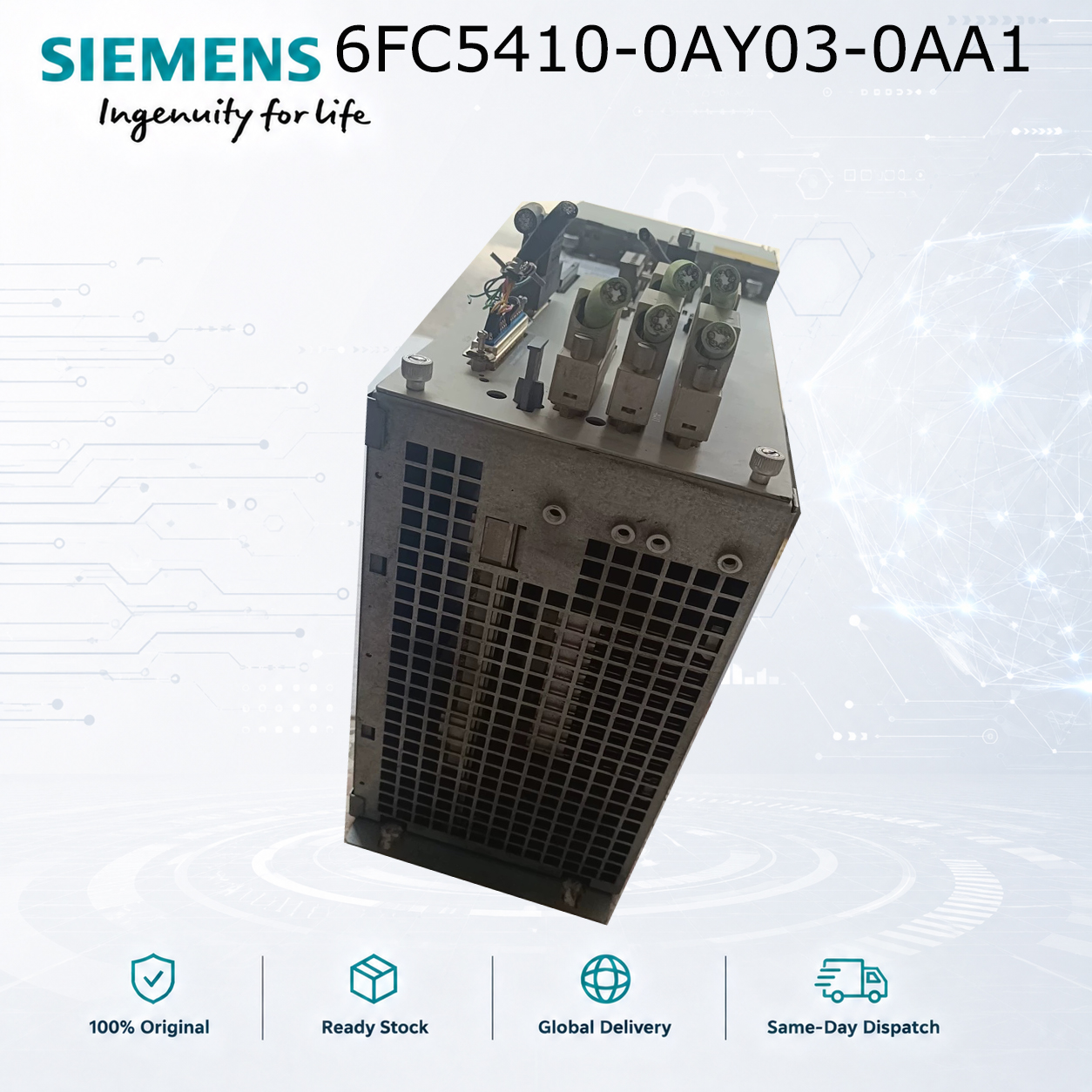

Siemens 6FC5410-0AY03-0AA1 | SINUMERIK 810DE CCU3 Control Module

Product Overview
The Siemens 6FC5410-0AY03-0AA1 is a CCU3 (Compact Control Unit 3) module for the SINUMERIK 810DE CNC system. This export version features system software stored in internal memory and is designed for advanced CNC machine tool control applications requiring high-performance processing .

Technical Specifications

• Model Number: 6FC5410-0AY03-0AA1

• Product Type: SINUMERIK 810DE CCU3 Control Module

• Product Line: SINUMERIK 810D powerline

• NC Memory: 256 KB (expandable up to 1.5 MB)

• PLC Memory: 96 KB (expandable up to 288 KB)

• Communications: Prepared for PROFIBUS-DP

• Net Weight: 1.42 - 2.0 kg

• Export Version: Yes (system software in internal memory)

Integrated Power Units
This CCU3 module integrates power units for drive control :

• 2 x 6A/12A for feed drives

• 1 x 18A/36A for main spindle drive

Key Features

• Integrated Drive Control: Built-in power units for feed and spindle drives

• Export Version: System software stored in internal FEPROM

• PROFIBUS-DP Ready: Prepared for integration into industrial networks

• High Performance: CCU3 offers highest performance in the CCU series

• Compact Design: All CNC, PLC, and drive control in one unit

Typical Applications

• Advanced CNC machine tools

• Machining centers

• Turning and milling machines

• Industrial automation systems

What's Included

• 6FC5410-0AY03-0AA1 CCU3 module

• System software pre-installed

•
