Siemens 6FC5410-0AY03-1AA0 | SINUMERIK 810DE CCU3.4 Control Module

Product Overview

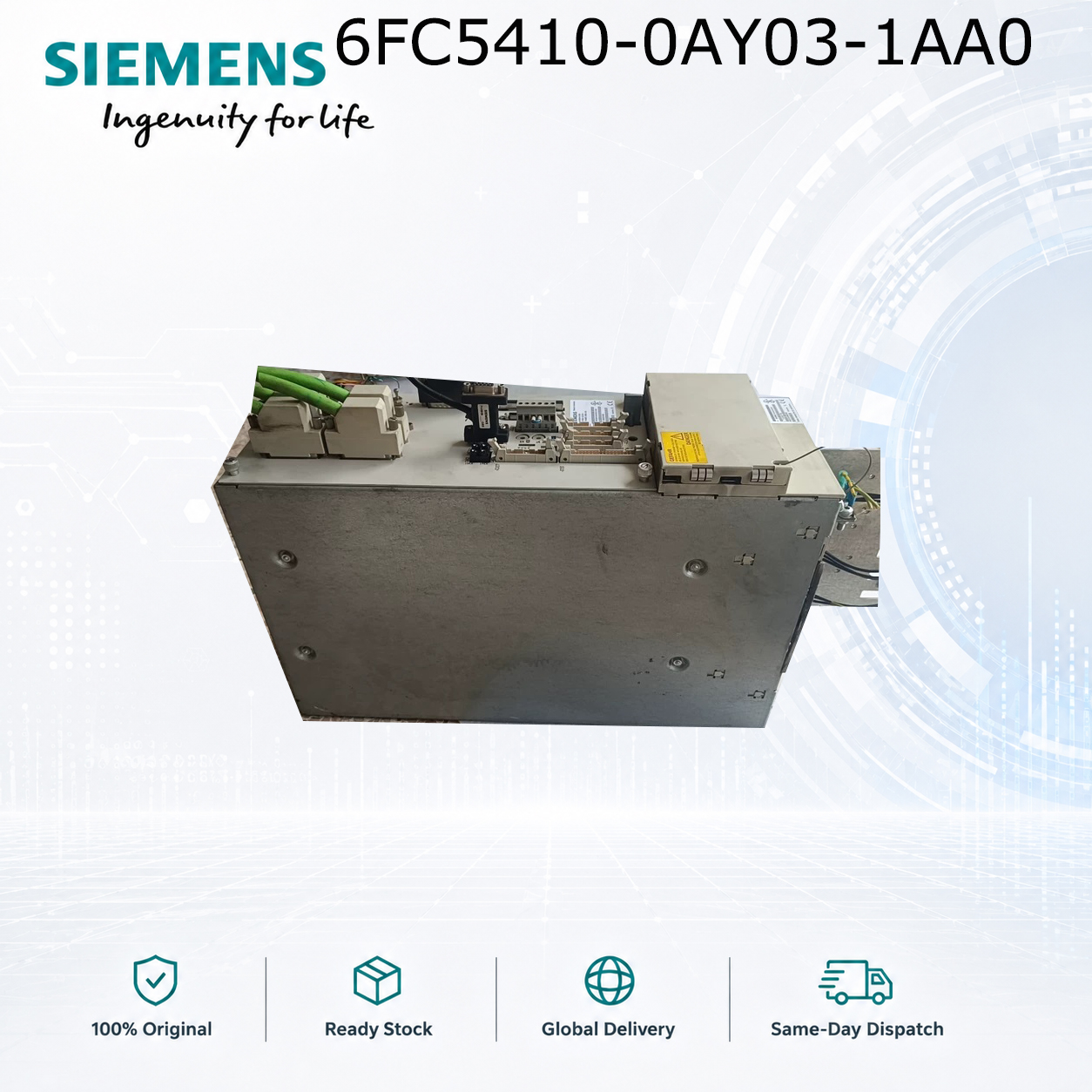

The Siemens 6FC5410-0AY03-1AA0 is a CCU3.4 (Compact Control Unit 3.4) module for the SINUMERIK 810DE powerline system. This high-performance control unit features enhanced memory capacity and is designed for complex CNC applications requiring expanded storage and processing power .

Technical Specifications

• Model Number: 6FC5410-0AY03-1AA0

• Product Type: SINUMERIK 810DE CCU3.4 Control Module

• Product Line: SINUMERIK 810D powerline

• NC Memory: 512 KB (expandable up to 2.5 MB)

• PLC Memory: 96 KB (expandable up to 480 KB)

• Communications: Prepared for PROFIBUS-DP

• Export Version: Yes (CNC SW for export)

• Net Weight: 0.66 - 3.63 kg

• Power Supply: 24V DC input

• Operating Temperature: 0°C to 45°C

• Humidity Range: 5% to 95% RH (non-condensing)

• Compliance: CE, UL certified

Integrated Power Units
The CCU3.4 module integrates power units for drive control :

• 2 x 6A/12A for feed drives

• 1 x 18A/36A for feed drive or 1 x 24A/32A for spindle drive

Key Features

• Enhanced Memory: 512KB NC memory standard, expandable to 2.5MB

• Expanded PLC Capacity: Up to 480KB PLC memory for complex logic

• CCU3.4 Performance: Highest memory configuration in CCU3 series

• Export Version: System software stored internally

• PROFIBUS-DP Ready: Industrial network integration

• Certified Safety: CE and UL certified

Typical Applications

• Complex CNC machine tools

• High-performance machining centers

• Multi-axis turning and milling machines

• Advanced industrial automation

What's Included

• 6FC5410-0AY03-1AA0 CCU3.4 module

• System software pre-installed

•
