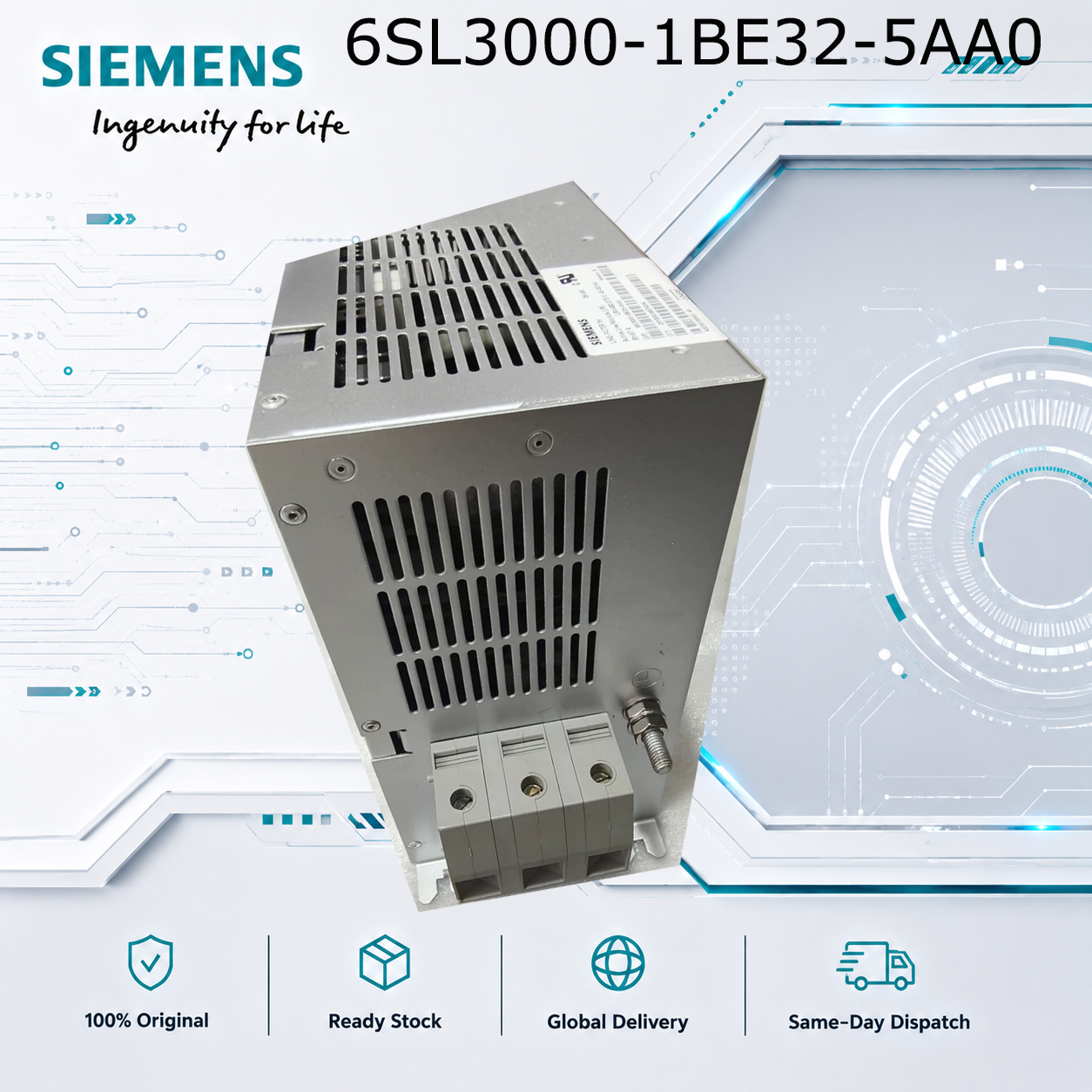

Siemens 6SL3000-1BE32-5AA0 | S120 Braking Resistor for PM340

Product Overview
The Siemens 6SL3000-1BE32-5AA0 is a braking resistor for the SINAMICS S120 drive system. This component is designed to dissipate regenerative energy from the DC link during braking operations .

When the DC link voltage rises to the activation threshold, the braking unit is enabled, connecting the braking resistor to the DC bus to convert regenerative energy into heat. This helps control DC bus voltage when regenerative energy cannot be fed back to the grid .

Technical Specifications

• Model Number: 6SL3000-1BE32-5AA0

• Product Type: Braking Resistor

• Compatible Power Modules: PM340 with 380-480V 3AC input

• DC Link Voltage: 510-720V DC

• Product Lifecycle: PM300 - Active Product

Key Features

• Designed for SINAMICS S120 PM340 power modules

• Dissipates regenerative braking energy

• Protects DC link components from overvoltage

• Enables controlled stopping during power failure

Typical Applications

• SINAMICS S120 PM340 drive systems

• Applications with regenerative braking requirements

• Vertical lifting and hoisting applications

• High-inertia load braking

Compatibility Notes

• Compatible with 380-480V 3AC PM340 power modules (DC link 510-720V)

• Each braking unit must be connected to its own braking resistor

• Cable length between braking unit and braking resistor should not exceed 10m

What's Included

• 6SL3000-1BE32-5AA0 braking resistor

• Mounting hardware

•

FAqS
