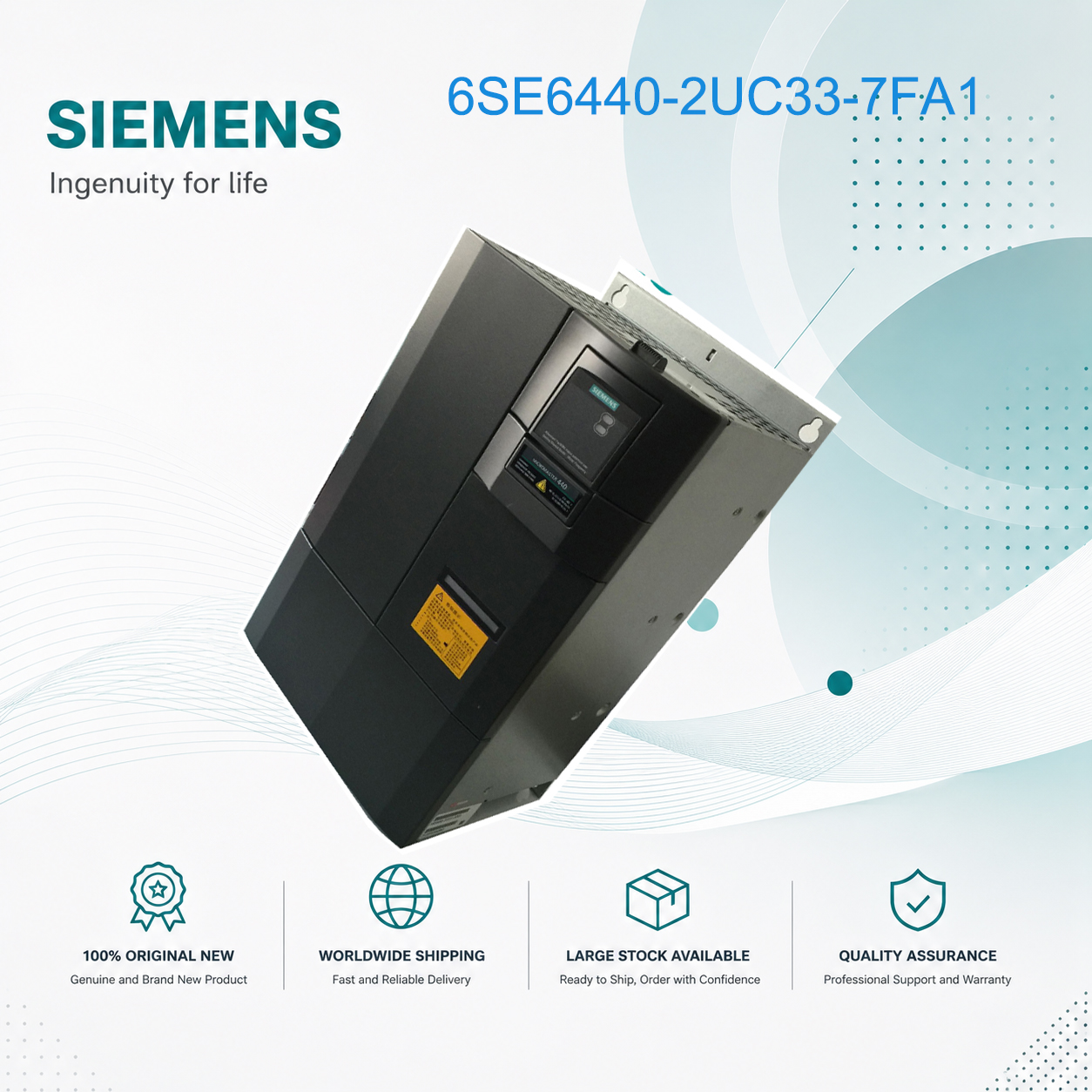

Siemens MICROMASTER 440 VFD 37kW 200-240V 3-Phase 6SE6440-2UC33-7FA1

Siemens MICROMASTER 440 VFD 37kW – F-Size High-Capacity Vector Drive for Large Industrial Systems

The Siemens MICROMASTER 440, model 6SE6440-2UC33-7FA1, delivers 37kW constant torque output power with 200-240V 3-phase input, with square-law torque rating extending to 45kW for pump and fan applications[reference:96]. This F-size unfiltered drive is designed for large industrial systems requiring substantial power output with the precision and dynamic response of vector control.

At 37kW constant torque, output current reaches 130A[reference:97], placing this drive among the highest power offerings in the MM440 200V series. Applications at this level are typically large-scale industrial processes: primary pumps in municipal water systems, large fans in industrial facilities with extensive duct networks, and process machinery in heavy manufacturing environments.

The F-size chassis provides the thermal management necessary for continuous operation at these power levels. The drive's sensorless vector control algorithm maintains consistent torque delivery despite load variations—critical for applications like sludge pumps where solids content varies significantly, or extruders where material viscosity changes with temperature.

Key Specifications:
- Output Power: 37 kW (constant torque) / 50 HP
- Square-Law Torque Power: 45 kW (pumps, fans, centrifugal loads)[reference:98]
- Input Voltage: 200-240V AC 3-phase, +10/-10%, 47-63Hz[reference:99]
- Input Current: 114 A (constant torque)[reference:100]
- Rated Output Current: 130 A (constant torque)[reference:101]
- Output Frequency: 0-600 Hz
- Overload Capacity: 150% for 60 s, 200% for 3 s[reference:102]
- Protection Class: IP20[reference:103]
- Operating Temperature: -10°C to +50°C
- Dimensions (H×W×D): 850mm × 350mm × 320mm[reference:104]
- Weight: Approx. 55-65 kg
- Filter: Without built-in filter
- Frame Size: F

Typical Applications:
- Large industrial pumps (water/wastewater, chemical processing)
- High-capacity fans and blowers (HVAC, process ventilation)
- Heavy industrial conveyors and material handling
- Large extruders and compounding lines
- Industrial mixers and agitators (chemical, food, pharmaceutical)
- Large screw compressors
- Centrifuges and separators for industrial processes

Key Features:
- Sensorless vector control delivers 100% torque down to 0.5 Hz without encoder
- Built-in braking chopper for dynamic braking (external resistor required)
- BiCo technology for flexible I/O signal configuration
- 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs
- Integrated Modbus RTU interface
- Flying restart for capturing spinning motors
- DC injection braking for zero-speed holding
- PID controller for closed-loop process control
- Comprehensive protection functions

F-Size Installation Considerations:
At 37kW and 130A output, installation requires careful planning. Supply conductors must be sized for 114A minimum (plus safety margin per local code). Overcurrent protection should be semiconductor fuses (type aR) for the best combination of fault protection and drive longevity. Cabinet ventilation must be engineered for the drive's heat dissipation—typically forced ventilation or air conditioning for enclosures containing drives at this power level.

Important Notes:
- This product is discontinued (PM410). Available ONLY as a spare part
- Requires 3-phase input only; 130A output requires substantial supply capacity
- For new installations, SINAMICS G120 series is the recommended successor
- Heavy-gauge power cables required for 130A+ current
- Forced cooling typically required for continuous operation
- BOP or AOP required for parameter changes beyond factory defaults

FAQ:

Q1: What is the physical scale of the F-size chassis?
A: Dimensions 850×350×320mm (height × width × depth). Weight is approximately 55-65kg. Installation requires a sturdy mounting surface and adequate space for cable entry and cooling airflow.

Q2: What input current should I plan for?
A: At 37kW constant torque, input current is 114A. For square-law torque applications (45kW), input current is approximately 155A (estimated based on typical power factor). These values represent significant electrical demand.

Q3: Can this drive be used for pump applications with dry-run protection?
A: Yes. MM440 includes built-in dry-run detection logic that can be configured to detect low load conditions indicative of dry pump operation, triggering an alarm or shutdown to prevent pump damage.

Q4: What cooling is required for this drive?
A: For cabinet installation, forced ventilation is generally required. Calculate heat dissipation based on drive losses (approximately 3% of rated power at full load). For 37kW, this is roughly 1.1kW of heat requiring removal from the enclosure.

📦 Spare Part – Limited Stock | Tech Support | Please confirm availability before ordering
Contact us for pricing and availability.
