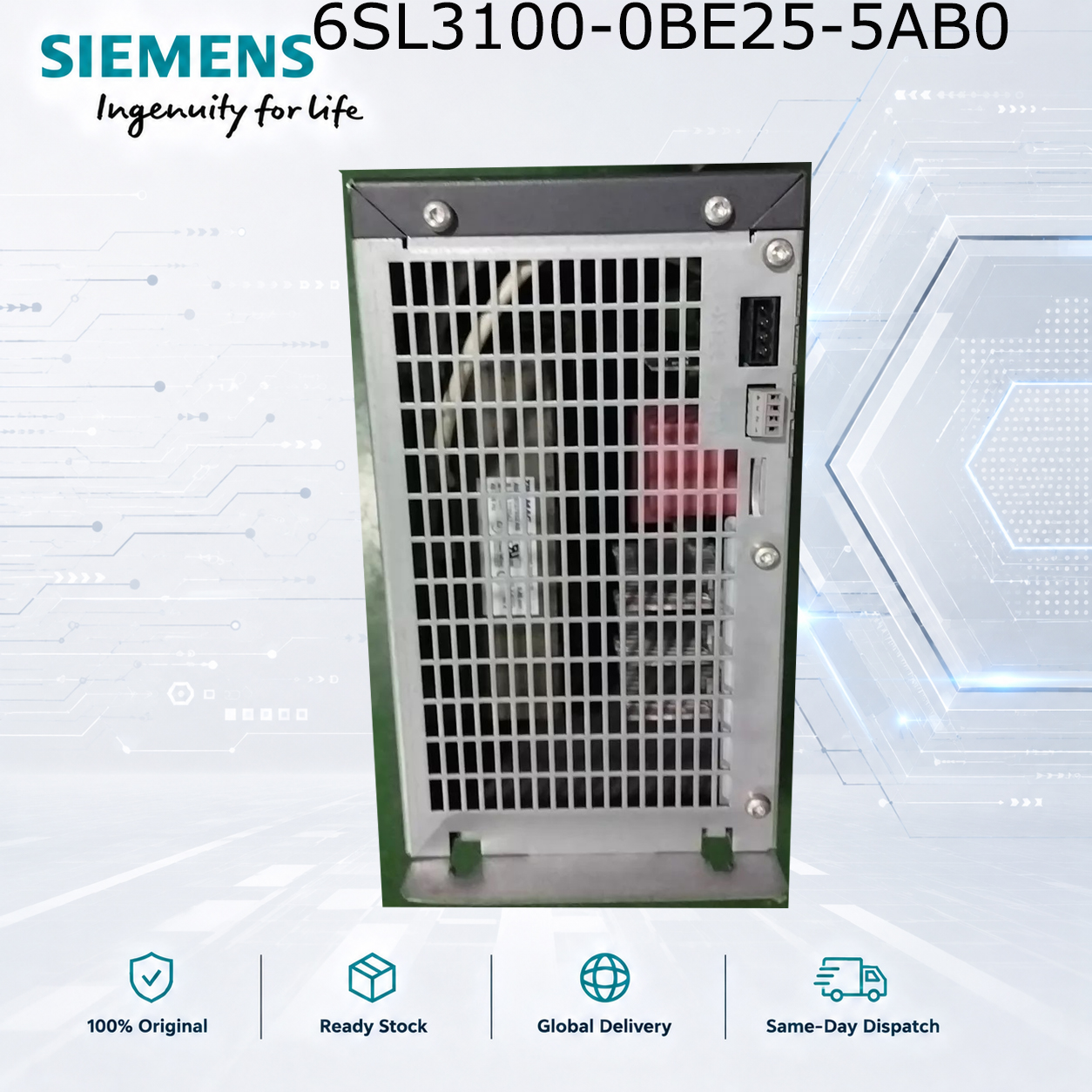

Siemens 6SL3100-0BE25-5AB0 | S120 Active Interface Module 55A

Product Overview
The Siemens 6SL3100-0BE25-5AB0 is an Active Interface Module (AIM) for the SINAMICS S120 drive system. This module is rated for 55A and is designed to be used with compatible Active Line Modules (ALM) or Smart Line Modules (SLM). The AIM integrates line filter and reactor functions in a single compact unit.

Technical Specifications

• Model Number: 6SL3100-0BE25-5AB0

• Product Type: S120 Active Interface Module (AIM)

• Rated Current: 55 A

• Input Voltage: 380-480V 3AC, 50/60Hz

• Integrated Components: Line filter + Line reactor

• Cooling: Internal air cooling

• Protection Class: IP20

• Compatible Power Modules: ALM/SLM up to 55A

Key Features

• Integrated Filter and Reactor: Eliminates need for separate external components

• EMC Compliance: Meets Category C2/C3 requirements

• Booksize Format: Compact design

Typical Applications

• Active Line Modules (ALM) up to 55A

• Smart Line Modules (SLM) up to 55A

• Multi-axis S120 drive systems for medium power applications

•
